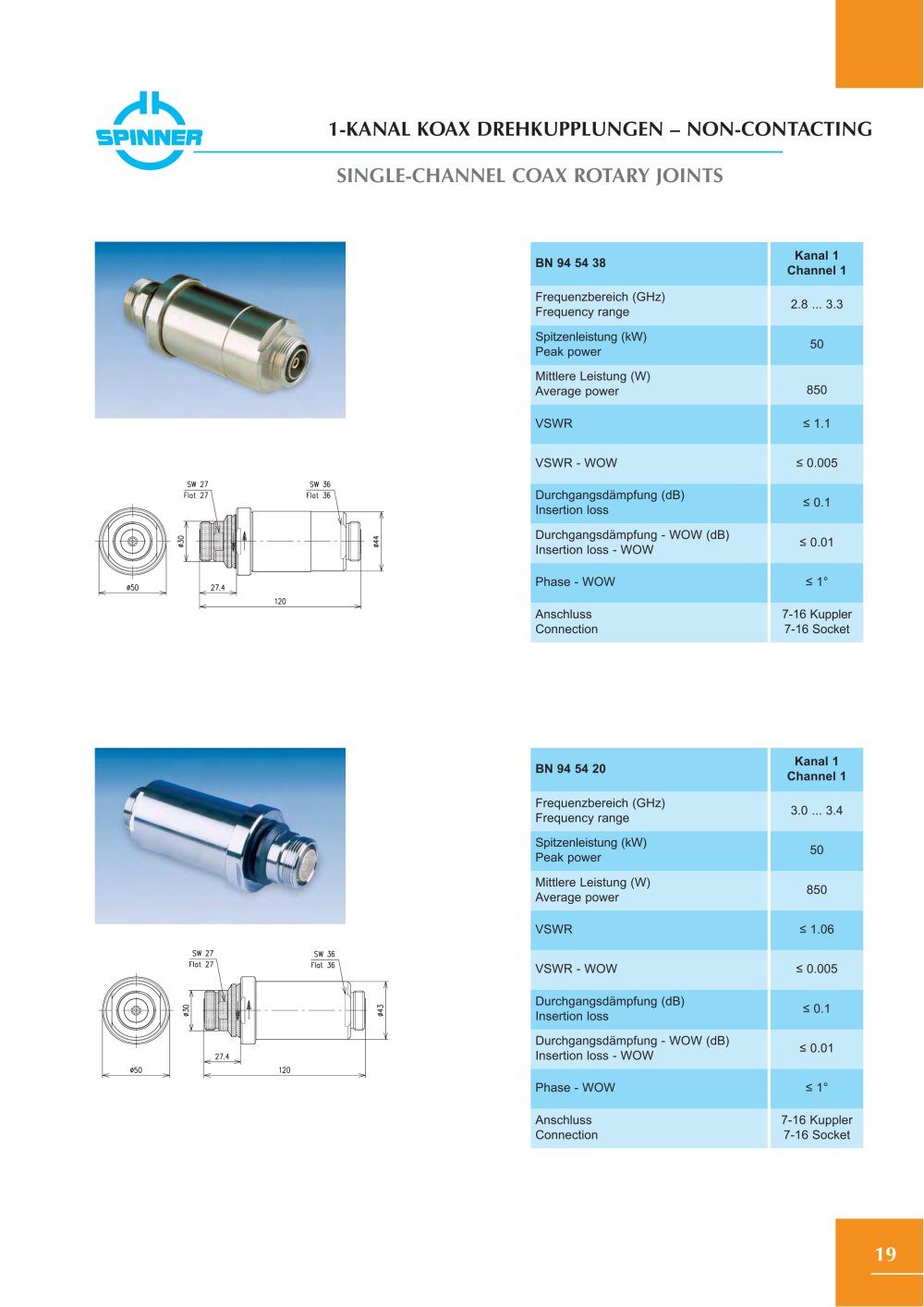

1-KANAL KOAX DREHKUPPLUNGEN– NON-CONTACTINGSINGLE-CHANNEL COAX ROTARY JOINTS

BN 94 54 38 Kanal 1Channel 1 Frequenzbereich (GHz) Frequency range 2.8 ... 3.3 Spitzenleistung (kW) Peak power 50 Mittlere Leistung (W) Average power 850 VSWR ≤ 1.1 VSWR - WOW ≤ 0.005 Durchgangsdämpfung (dB) Insertion loss ≤ 0.1 Durchgangsdämpfung - WOW (dB) Insertion loss - WOW ≤ 0.01 Phase - WOW ≤ 1° Anschluss Connection 7-16 Kuppler7-16 Socket BN 94 54 20 Kanal 1Channel 1 Frequenzbereich (GHz) Frequency range 3.0 ... 3.4 Spitzenleistung (kW) Peak power 50 Mittlere Leistung (W) Average power 850 VSWR ≤ 1.06 VSWR - WOW ≤ 0.005 Durchgangsdämpfung (dB) Insertion loss ≤ 0.1 Durchgangsdämpfung - WOW (dB) Insertion loss - WOW ≤ 0.01 Phase - WOW ≤ 1° Anschluss Connection 7-16 Kuppler7-16 Socket

19
