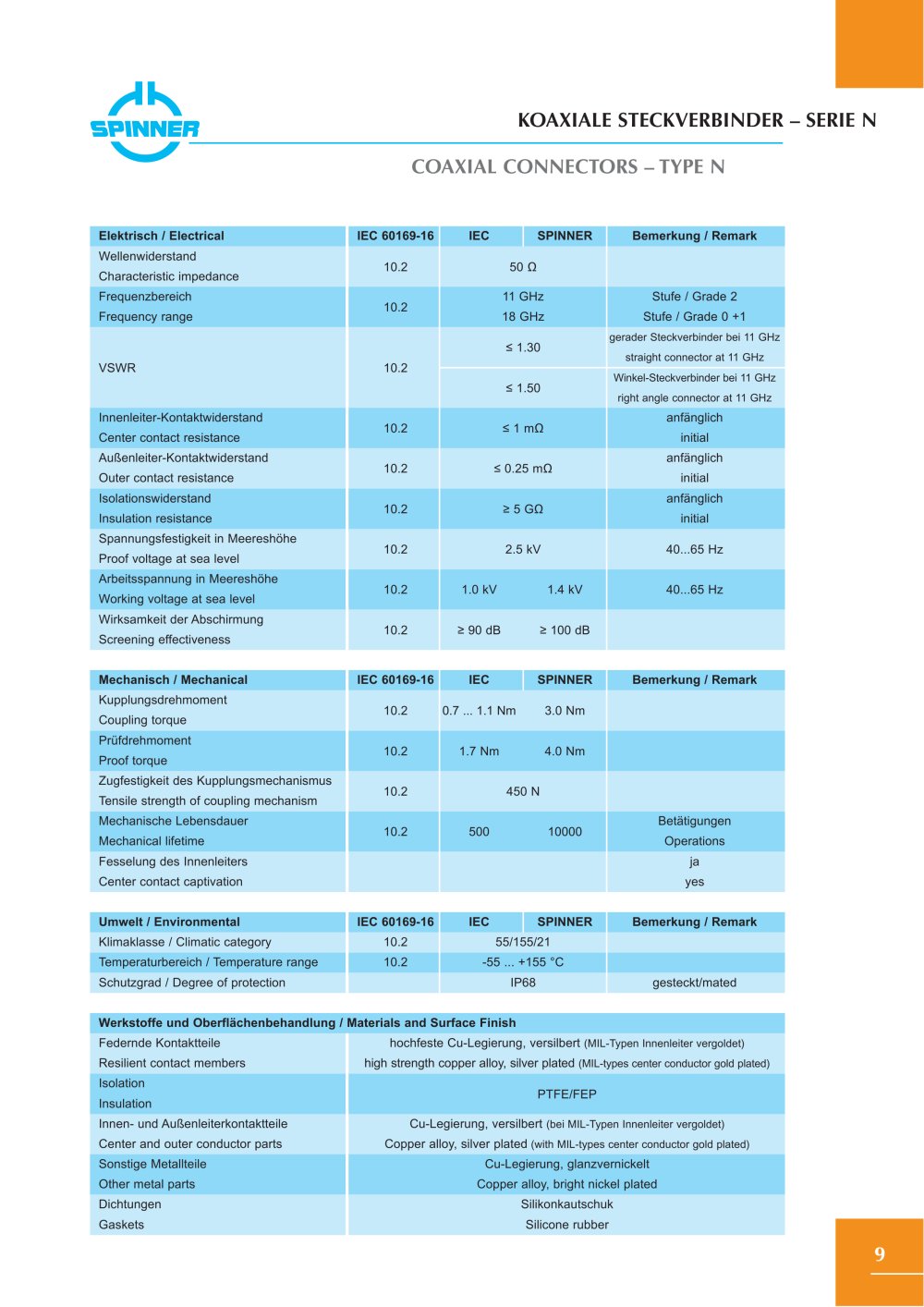

KOAXIALE STECKVERBINDER - SERIE N
COAXIAL CONNECTORS - TYPE N
Elektrisch / Electrical
Wellenwiderstand Characteristic impédance Frequenzbereich Frequency range
VSWR
IEC 60169-16
10.2
IEC
SPINNER
Bemerkung / Remark
50 n
11 GHz 18 GHz
< 1.30
< 1.50
Stufe / Grade 2 Stufe / Grade 0 +1 gerader Steckverbinder bei 11 GHz
straight connector at 11 GHz Winkel-Steckverbinder bei 11 GHz right angle connector at 11 GHz anfànglich
initial anfànglich
initial anfànglich initial
10.2
Innenleiter-Kontaktwiderstand Center contact resistance AuGenleiter-Kontaktwiderstand Outer contact resistance Isolationswiderstand Insulation resistance Spannungsfestigkeit in Meereshôhe Proof voltage at sea level Arbeitsspannung in Meereshôhe Working voltage at sea level Wirksamkeit der Abschirmung Screening effectiveness
Mechanisch / Mechanical
Kupplungsdrehmoment Coupling torque Prùfdrehmoment Proof torque Zugfestigkeit des Kupplungsmechanismus Tensile strength of coupling mechanism Mechanische Lebensdauer Mechanical lifetime Fesselung des Innenleiters Center contact captivation
10.2
< 1 mn
10.2
< 0.25 mn
10.2
2.5 kV
40...65 Hz
10.2
1.0 kV
1.4 kV
40...65 Hz
> 90 dB
> 100 dB
Bemerkung / Remark
IEC 60169-16
IEC
SPINNER
10.2
0.7 ... 1.1 Nm
3.0 Nm
10.2
1.7 Nm
450 N
4.0 Nm
Betàtigungen Operations
ja yes
10.2
500
10000
Umwelt / Environmental IEC 60169-16
Klimaklasse / Climatic category 10.2
Temperaturbereich / Temperature range 10.2
Schutzgrad / Degree of protection
IEC SPINNER
55/155/21
-55 ... +155 °C
IP68
Bemerkung / Remark
gesteckt/mated
Werkstoffe und Oberflàchenbehandlung / Materials and Surface Finish
Federnde Kontaktteile Resilient contact members Isolation Insulation Innen- und Au.enleiterkontaktteile Center and outer conductor parts Sonstige Metallteile Other metal parts Dichtungen Gaskets
hochfeste Cu-Legierung, versilbert (MIL-Typen Innenleiter vergoldet) high strength copper alloy, silver plated (MlL-types center conductor gold plated)
PTFE/FEP
Cu-Legierung, versilbert (bei MIL-Typen Innenleiter vergoldet) Copper alloy, silver plated (with MIL-types center conductor gold plated) Cu-Legierung, glanzvernickelt Copper alloy, bright nickel plated Silikonkautschuk Silicone rubber
