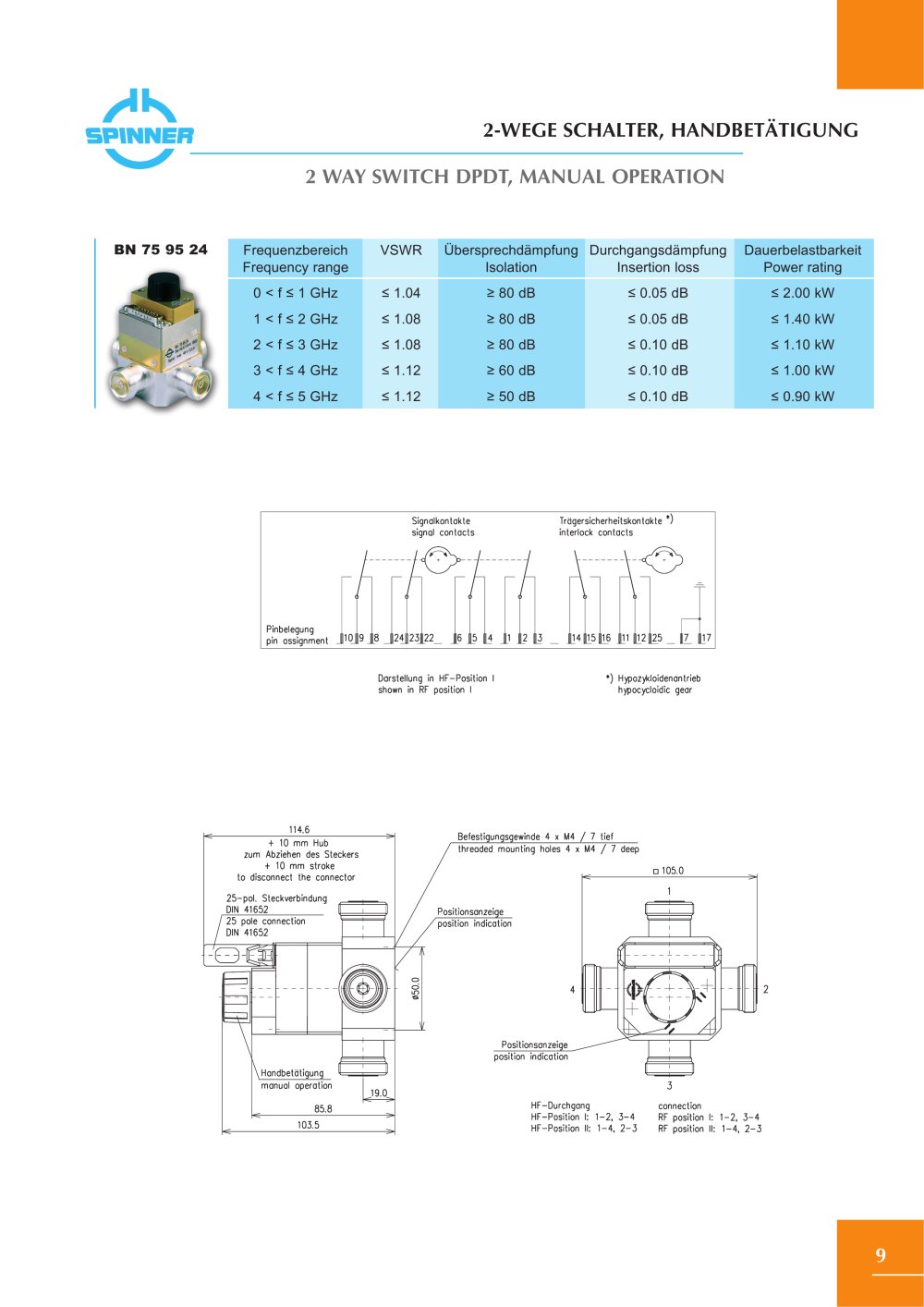

2-WEGE SCHALTER, HANDBETÀTIGUNG
2 WAY SWITCH DPDT, MANUAL OPERATION
BN 75 95 24
Frequenzbereich VSWR Frequency range
0 < f < 1 GHz < 1.04
1 < f < 2 GHz < 1.08
2 < f < 3 GHz < 1.08
3 < f < 4 GHz < 1.12
4 < f < 5 GHz < 1.12
Ubersprechdàmpfung Durchgangsdàmpfung Dauerbelastbarkeit Isolation Insertion loss Power rating
> 80 dB
> 80 dB
> 80 dB
> 60 dB
> 50 dB
< 0.05 dB
< 0.05 dB
< 0.10 dB
< 0.10 dB
< 0.10 dB
< 2.00 kW
< 1.40 kW
< 1.10 kW
< 1.00 kW
< 0.90 kW
Signolkontokte signal contacts
TrSgersicherheitskontakte *) interlock contacts
Pinbelegung
pin assignant J10J918 J24l23i22_ 16 £5 ]4 11 JJ2 |3 _ J14|L5|L6 Jll ||2|25 _ |7_ |17
Darstellung ïn HF-Position I shown in RF position I
*) Hypozykloïdenantrieb hypocycloidîc gear
