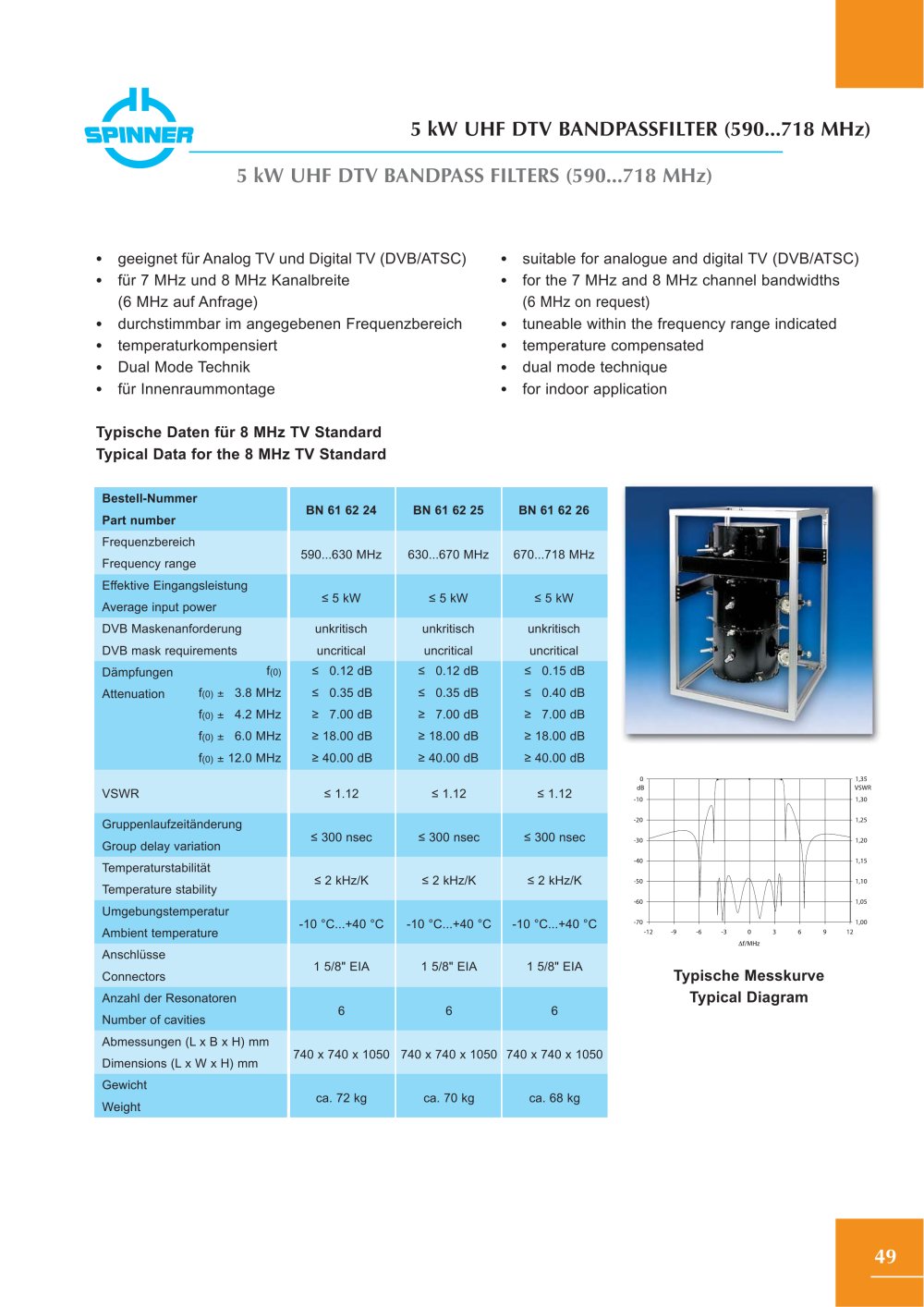

5 kW UHF DTV BANDPASSFILTER (590...718 MHz)
5 kW UHF DTV BANDPASS FILTERS (590...718 MHz)
geeignet fur Analog TV und Digital TV (DVB/ATSC) fur 7 MHz und 8 MHz Kanalbreite (6 MHz auf Anfrage)
durchstimmbar im angegebenen Frequenzbereich temperaturkompensiert Dual Mode Technik fur Innenraummontage
suitable for analogue and digital TV (DVB/ATSC) for the 7 MHz and 8 MHz channel bandwidths (6 MHz on request)
tuneable within the frequency range indicated temperature compensated dual mode technique for indoor application
Typische Daten fur 8 MHz TV Standard Typical Data for the 8 MHz TV Standard
Bestell-Nummer Part number
BN 61 62 24
BN 61 62 25
BN 61 62 26
Frequenzbereich Frequency range
590...630 MHz
630...670 MHz
670...718 MHz
Effektive Eingangsleistung Average input power
< 5 kW
< 5 kW
< 5 kW
DVB Maskenanforderung
unkritisch
unkritisch
unkritisch
DVB mask requirements
uncritical
uncritical
uncritical
Dāmpfungen f(0)
< 10.12 dB
< 10.12 dB
< 10.15 dB
Attenuation f(0) ±fe.8 MHz
< 10.35 dB
< 10.35 dB
< 10.40 dB
f(0) ±m.2 MHz
> I7.00 dB
> 17.00 dB
> 17.00 dB
f(0) ±K.0 MHz
> 18.00 dB
> 18.00 dB
> 18.00 dB
f(0) ± 12.0 MHz
> 40.00 dB
> 40.00 dB
> 40.00 dB
VSWR
< 1.12
< 1.12
< 1.12
Gruppenlaufzeitānderung Group delay variation
< 300 nsec
< 300 nsec
< 300 nsec
Temperaturstabilitāt Temperature stability
< 2 kHz/K
< 2 kHz/K
< 2 kHz/K
Umgebungstemperatur Ambient temperature
-10 °C...+40 °C
-10 °C...+40 °C
-10 °C...+40 °C
Anschlusse Connectors
1 5/8" EIA
1 5/8" EIA
1 5/8" EIA
Anzahl der Resonatoren Number of cavities
6 6 6
Abmessungen (L x B x H) mm Dimensions (L x W x H) mm
740 x 740 x 1050
740 x 740 x 1050
740 x 740 x 1050
Gewicht Weight
ca. 72 kg
ca. 70 kg
ca. 68 kg
r
K
D
\j
-h
1
1
V
y
U5
vswn
1^5
Typische Messkurve Typical Diagram
