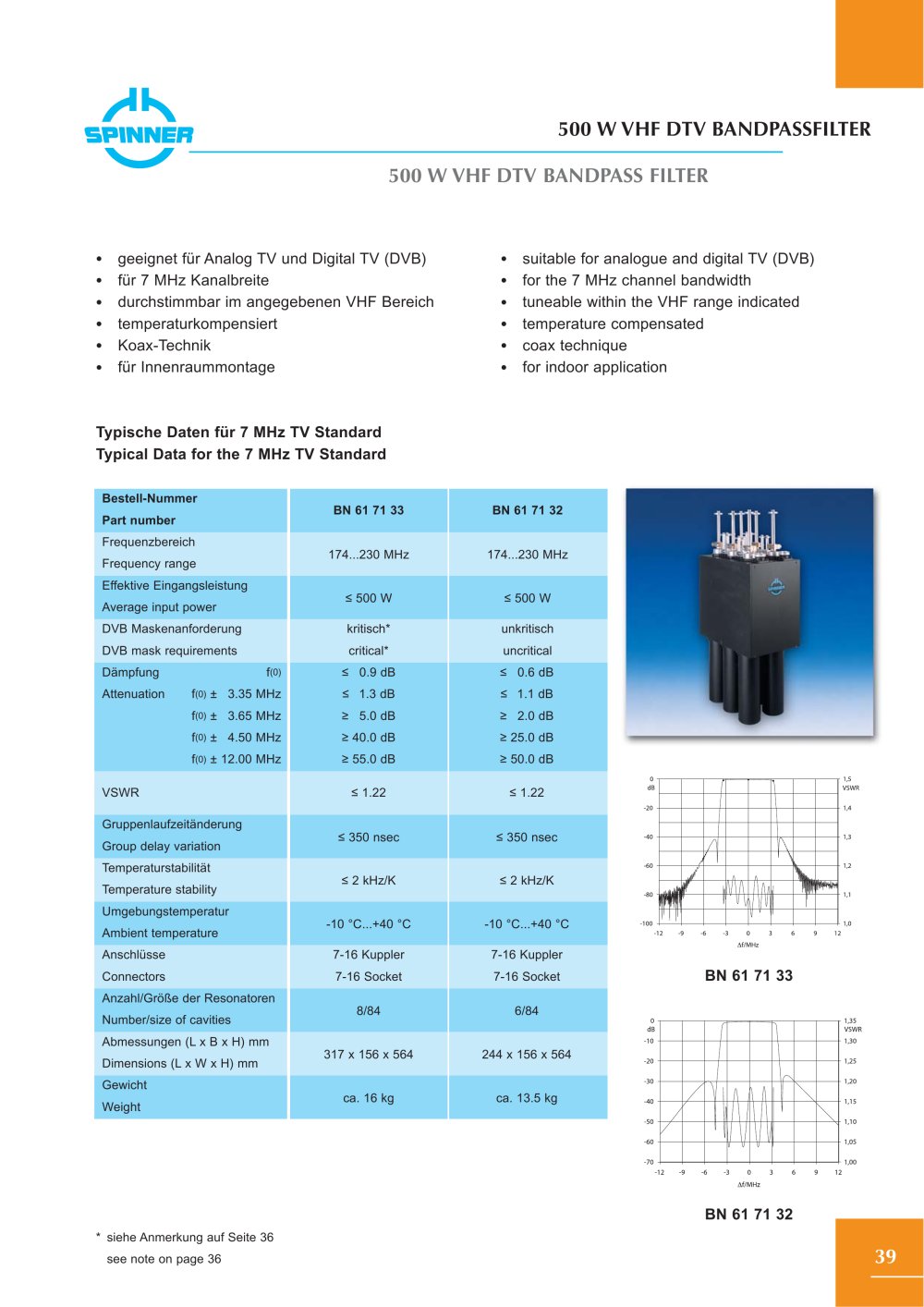

500 W VHFDTVBANDPASSFILTER500 W VHFDTV BANDPASS FILTER
•
geeignet für Analog TV und Digital TV (DVB)
•
suitable for analogue and digital TV (DVB)
•
für 7 MHz Kanalbreite
•
for the 7 MHz channel bandwidth
•
durchstimmbar im angegebenen VHF Bereich
•
tuneable within the VHF range indicated
•
temperaturkompensiert
•
temperature compensated
•
Koax-Technik
•
coax technique
•
für Innenraummontage
•
for indoor application Typische Daten für 7 MHz TV StandardTypical Data for the 7 MHz TV Standard
Bestell-NummerPart numberBN 61 71 33BN 61 71 32 FrequenzbereichFrequency range174...230 MHz174...230 MHzEffektive EingangsleistungAverage input power≤ 500 W≤ 500 WDVB Maskenanforderung kritisch*unkritischDVB mask requirementscritical*uncritical Dämpfungf(0) ≤ 1 0.9 dB≤ 1 0.6 dBAttenuationf
(0) ± 1 3.35 MHz≤ 1 1.3 dB≤ 1 1.1 dBf
(0) ± 1 3.65 MHz≥ 1 5.0 dB≥ 1 2.0 dBf
(0) ± 1 4.50 MHz≥ 40.0 dB≥ 25.0 dBf
(0) ± 12.00 MHz≥ 55.0 dB≥ 50.0 dBVSWR≤ 1.22≤ 1.22GruppenlaufzeitänderungGroup delay variation≤ 350 nsec≤ 350 nsecTemperaturstabilitätTemperature stability≤ 2 kHz/K≤ 2 kHz/KUmgebungstemperaturAmbient temperature-10 °C...+40 °C-10 °C...+40 °CAnschlüsse7-16 Kuppler7-16 KupplerConnectors7-16 Socket7-16 Socket Anzahl/Größe der Resonatoren Number/size of cavities8/846/84Abmessungen (Lx B x H) mmDimensions (Lx W x H) mm317 x 156 x 564244 x 156 x 564GewichtWeightca. 16 kgca. 13.5 kg
