Assembly examples

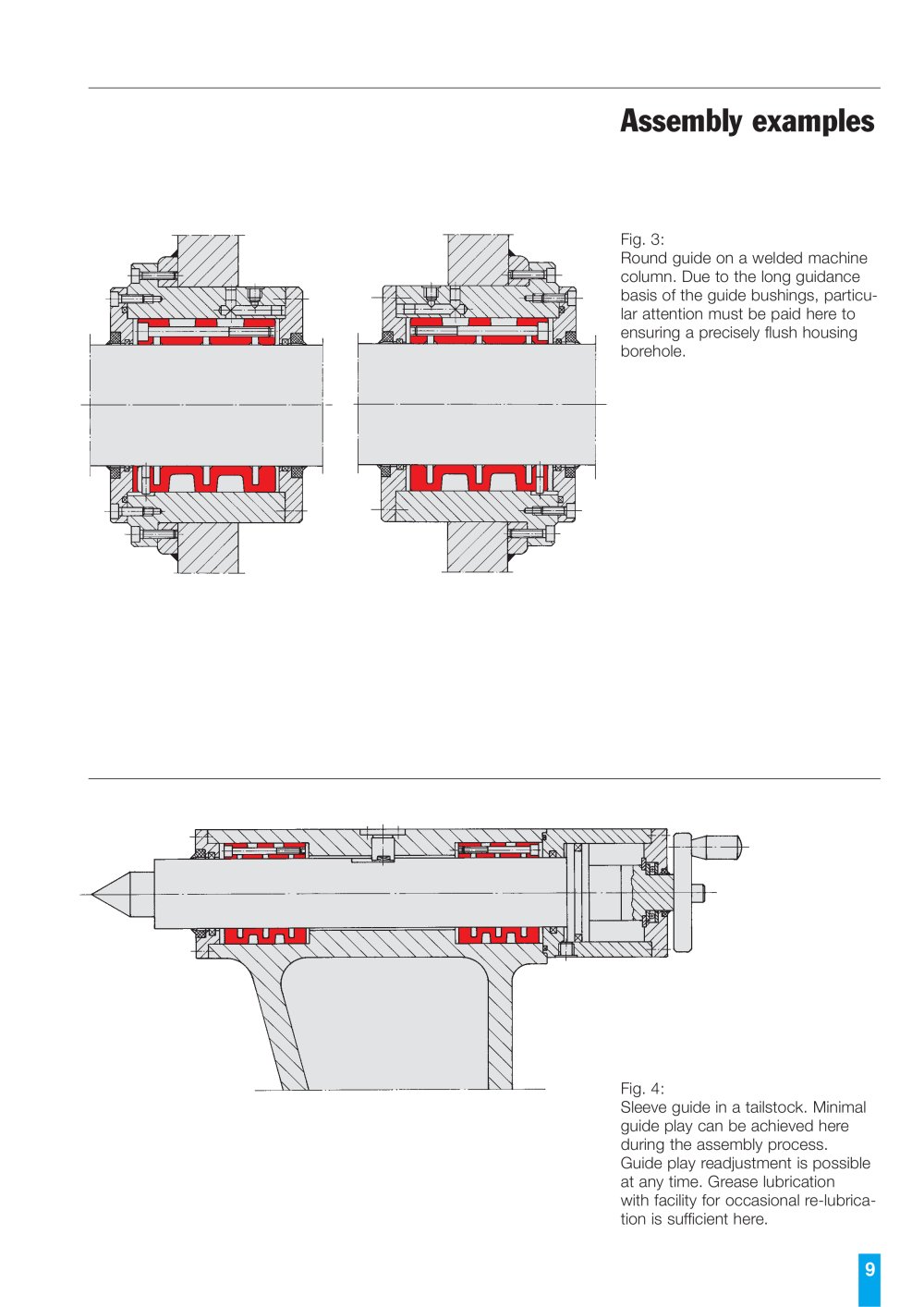

Fig. 3:Round guide on a welded machine column. Due to the long guidance basis of the guide bushings, particu- lar attention must be paid here to ensuring a precisely flush housing borehole. Fig. 4: Sleeve guide in a tailstock. Minimal guide play can be achieved here during the assembly process. Guide play readjustment is possible at any time. Grease lubrication with facility for occasional re-lubrica- tion is sufficient here.

9
