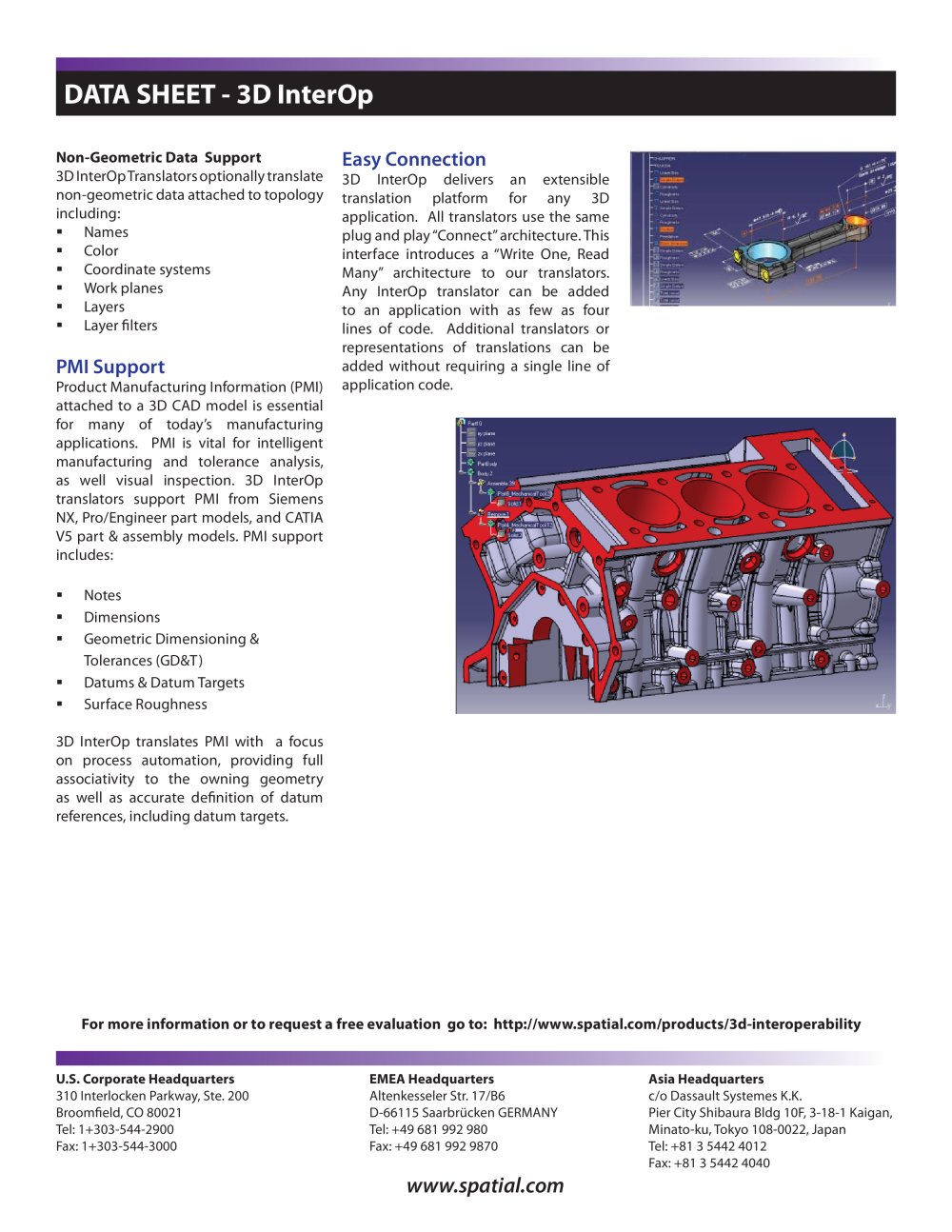

Non-Geometric Data Support 3D InterOp Translators optionally translate non-geometric data attached to topology including: .. Names .. Color .. Coordinate systems .. Work planes .. Layers .. Layer fi lters PMI Support Product Manufacturing Information (PMI) attached to a 3D CAD model is essential for many of today’s manufacturing applications. PMI is vital for intelligent manufacturing and tolerance analysis, as well visual inspection. 3D InterOp translators support PMI from Siemens NX, Pro/Engineer part models, and CATIA V5 part & assembly models. PMI support includes: .. Notes .. Dimensions .. Geometric Dimensioning & Tolerances (GD&T) .. Datums & Datum Targets .. Surface Roughness 3D InterOp translates PMI with a focus on process automation, providing full associativity to the owning geometry as well as accurate defi nition of datum references, including datum targets. Easy Connection 3D InterOp delivers an extensible translation platform for any 3D application. All translators use the same plug and play “Connect” architecture. This interface introduces a “Write One, Read Many” architecture to our translators. Any InterOp translator can be added to an application with as few as four lines of code. Additional translators or representations of translations can be added without requiring a single line of application code. DATA SHEET - 3D InterOp U.S. Corporate Headquarters 310 Interlocken Parkway, Ste. 200 Broomfi eld, CO 80021 Tel: 1+303-544-2900 Fax: 1+303-544-3000 Asia Headquarters c/o Dassault Systemes K.K. Pier City Shibaura Bldg 10F, 3-18-1 Kaigan, Minato-ku, Tokyo 108-0022, Japan Tel: +81 3 5442 4012 Fax: +81 3 5442 4040 EMEA Headquarters Altenkesseler Str. 17/B6 D-66115 Saarbrücken GERMANY Tel: +49 681 992 980 Fax: +49 681 992 9870 www.spatial.com For more information or to request a free evaluation go to: http://www.spatial.com/products/3d-interoperability
