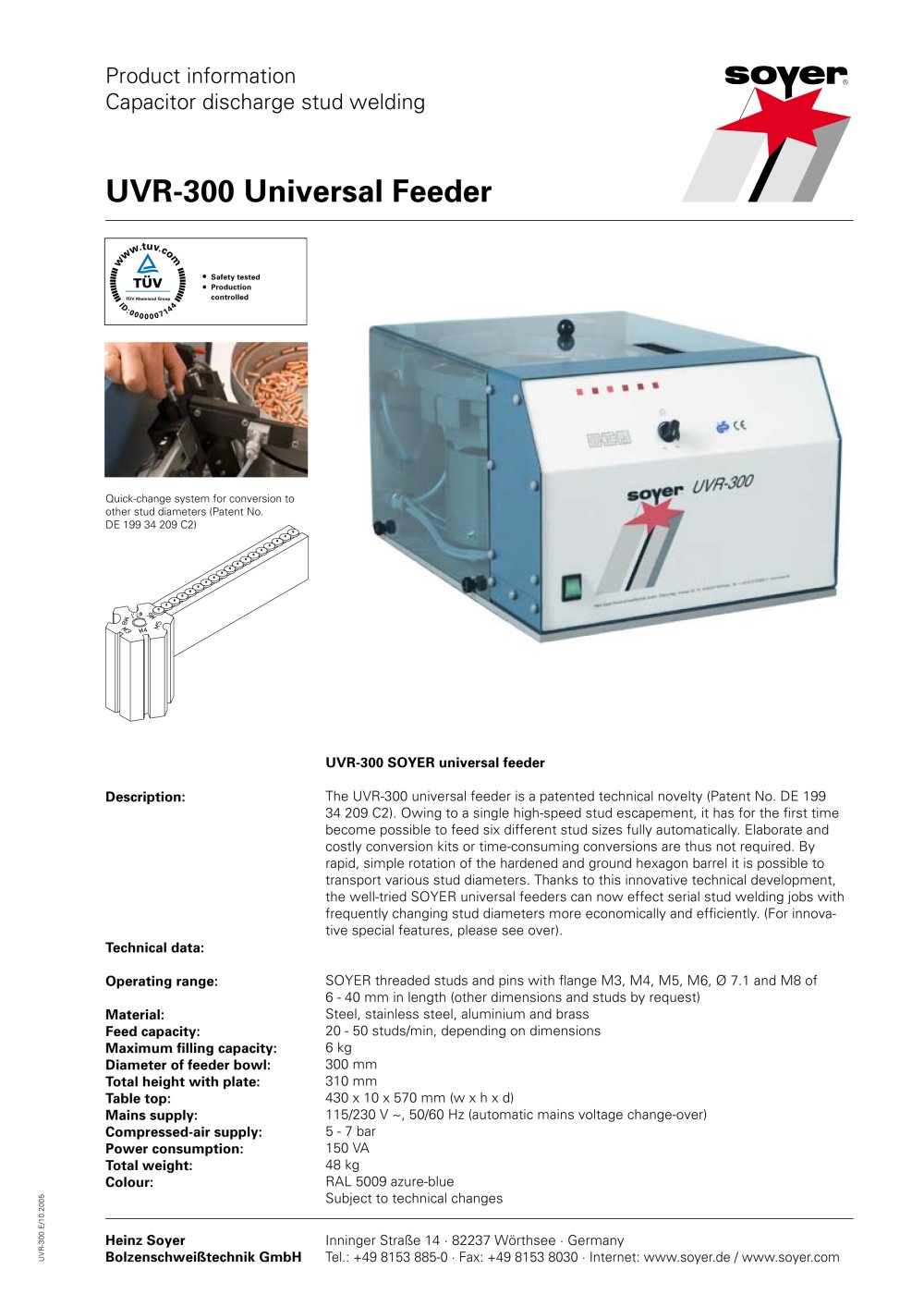

UVR-300 Universal Feeder - Soyer - #1

Product information

Capacitor discharge stud welding

Quick-change system for conversion to other stud diameters (Patent No. DE 199 34 209 C2)

The UVR-300 universal feeder is a patented technical novelty (Patent No. DE 199 34 209 C2). Owing to a single high-speed stud escapement, it has for the first time become possible to feed six different stud sizes fully automatically. Elaborate and costly conversion kits or time-consuming conversions are thus not required. By rapid, simple rotation of the hardened and ground hexagon barrel it is possible to transport various stud diameters. Thanks to this innovative technical development, the well-tried SOYER universal feeders can now effect serial stud welding jobs with frequently changing stud diameters more economically and efficiently. (For innova­tive special features, please see over).

SOYER threaded studs and pins with flange M3, M4, M5, M6, 0 7.1 and M8 of 6 - 40 mm in length (other dimensions and studs by request) Steel, stainless steel, aluminium and brass 20 - 50 studs/min, depending on dimensions 6 kg

300 mm 310 mm

430 x 10 x 570 mm (w x h x d)

115/230 V ~, 50/60 Hz (automatic mains voltage change-over)

5 - 7 bar

150 VA

48 kg

RAL 5009 azure-blue Subject to technical changes
