| Product information Capacitor discharge stud welding | |||||||||||||||||||||||||

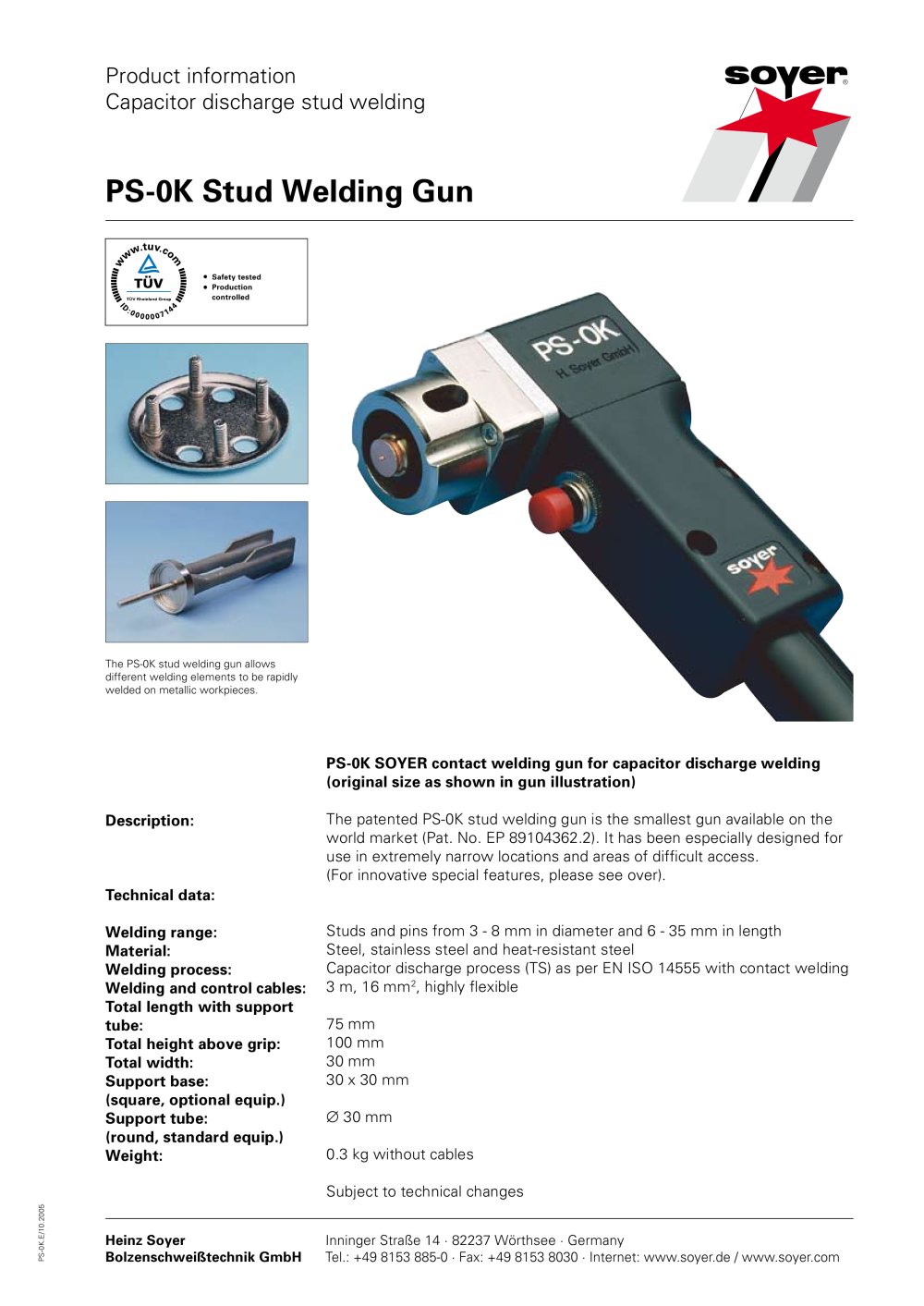

| PS-0K Stud Welding Gun | |||||||||||||||||||||||||
| 1 Safety tested ' Production controlled | |||||||||||||||||||||||||
| "000001^ | |||||||||||||||||||||||||
| The PS-0K stud welding gun allows different welding elements to be rapidly welded on metallic workpieces. | |||||||||||||||||||||||||
| PS-0K SOYER contact welding gun for capacitor discharge welding (original size as shown in gun illustration) The patented PS-0K stud welding gun is the smallest gun available on the world market (Pat. No. EP 89104362.2). It has been especially designed for use in extremely narrow locations and areas of difficult access. (For innovative special features, please see over). | |||||||||||||||||||||||||
| Description: | |||||||||||||||||||||||||
| Technical data: | |||||||||||||||||||||||||
| Studs and pins from 3 - 8 mm in diameter and 6 - 35 mm in length Steel, stainless steel and heat-resistant steel Capacitor discharge process (TS) as per EN ISO 14555 with contact welding 3 m, 16 mm2, highly flexible 75 mm 100 mm 30 mm 30 x 30 mm 0 30 mm 0.3 kg without cables | |||||||||||||||||||||||||
| Welding range: Material: Welding process: Welding and control cables: Total length with support tube: Total height above grip: Total width: Support base: (square, optional equip.) Support tube: (round, standard equip.) Weight: | |||||||||||||||||||||||||
| Subject to technical changes | |||||||||||||||||||||||||
| Heinz Soyer Inninger Straße 14 • 82237 Wörthsee • Germany Bolzenschweißtechnik GmbH Tel.: +49 8153 885-0 • Fax: +49 8153 8030 • Internet: www.soyer.de / www.soyer.com | |||||||||||||||||||||||||
