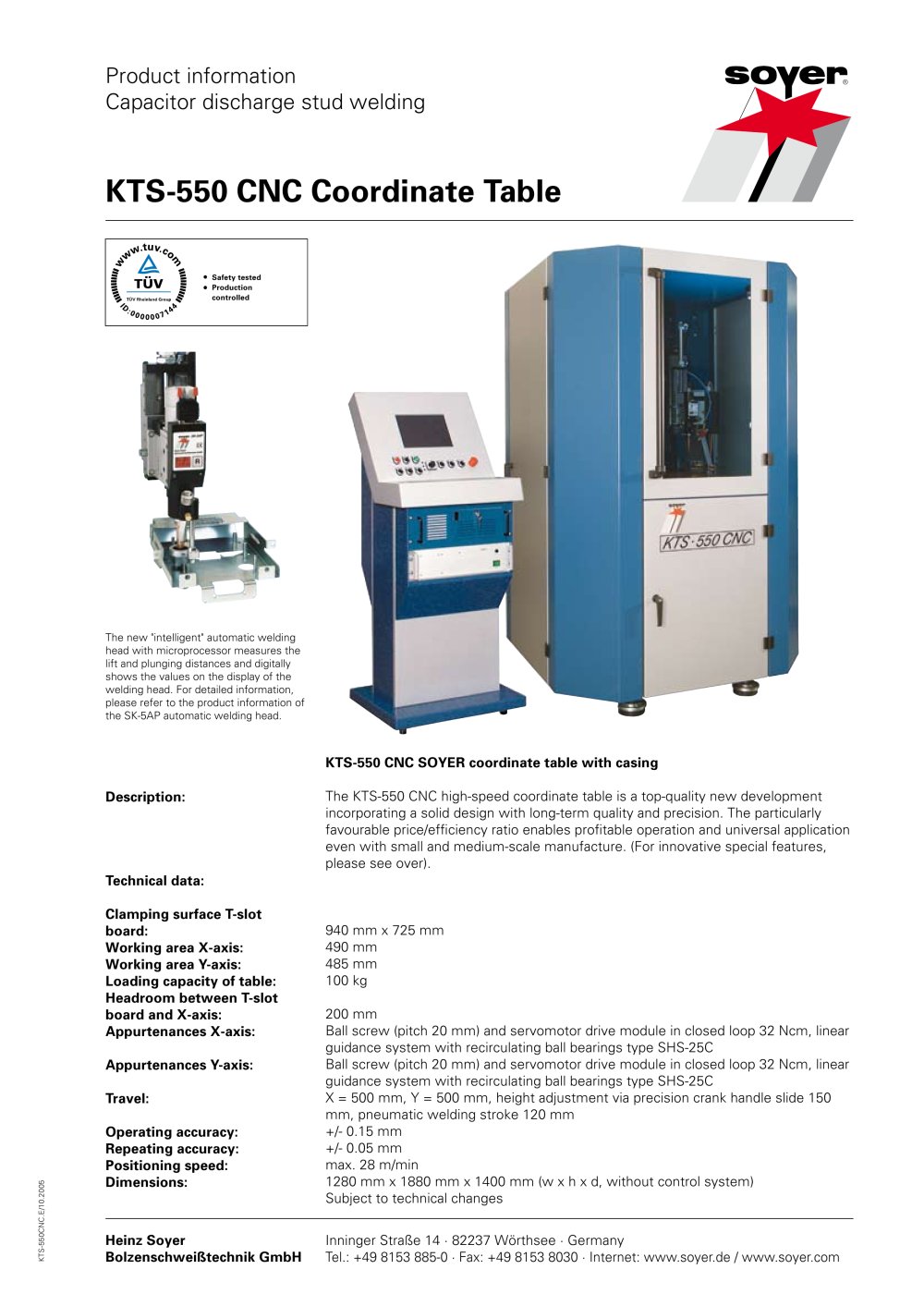

| Product information Capacitor discharge stud welding | ||||||||||||||||||||||
| KTS-550 CNC Coordinate Table | ||||||||||||||||||||||
| • Safety tested • Production controlled | ||||||||||||||||||||||
| i TUV 5 | ||||||||||||||||||||||
| <P iflvHimnHndanup 4p '6. .k* "000001^ | ||||||||||||||||||||||
| The new "intelligent" automatic welding head with microprocessor measures the lift and plunging distances and digitally shows the values on the display of the welding head. For detailed information, please refer to the product information of the SK-5AP automatic welding head. | ||||||||||||||||||||||
| KTS-550 CNC SOYER coordinate table with casing The KTS-550 CNC high-speed coordinate table is a top-quality new development incorporating a solid design with long-term quality and precision. The particularly favourable price/efficiency ratio enables profitable operation and universal application even with small and medium-scale manufacture. (For innovative special features, please see over). | ||||||||||||||||||||||
| Description: | ||||||||||||||||||||||
| Technical data: | ||||||||||||||||||||||
| Clamping surface T-slot board: Working area X-axis: Working area Y-axis: Loading capacity of table: Headroom between T-slot board and X-axis: Appurtenances X-axis: Appurtenances Y-axis: Travel: Operating accuracy: Repeating accuracy: Positioning speed: Dimensions: | ||||||||||||||||||||||
| 940 mm x 725 mm 490 mm 485 mm 100 kg 200 mm Ball screw (pitch 20 mm) and servomotor drive module in closed loop 32 Ncm, linear guidance system with recirculating ball bearings type SHS-25C Ball screw (pitch 20 mm) and servomotor drive module in closed loop 32 Ncm, linear guidance system with recirculating ball bearings type SHS-25C X = 500 mm, Y = 500 mm, height adjustment via precision crank handle slide 150 mm, pneumatic welding stroke 120 mm +/- 0.15 mm +/- 0.05 mm max. 28 m/min 1280 mm x 1880 mm x 1400 mm (w x h x d, without control system) Subject to technical changes | ||||||||||||||||||||||
| Heinz Soyer Bolzenschweißtechnik GmbH | Inninger Straße 14 • 82237 Wörthsee • Germany Tel.: +49 8153 885-0 • Fax: +49 8153 8030 • Internet: www.soyer.de / www.soyer.com | |||||||||||||||||||||
