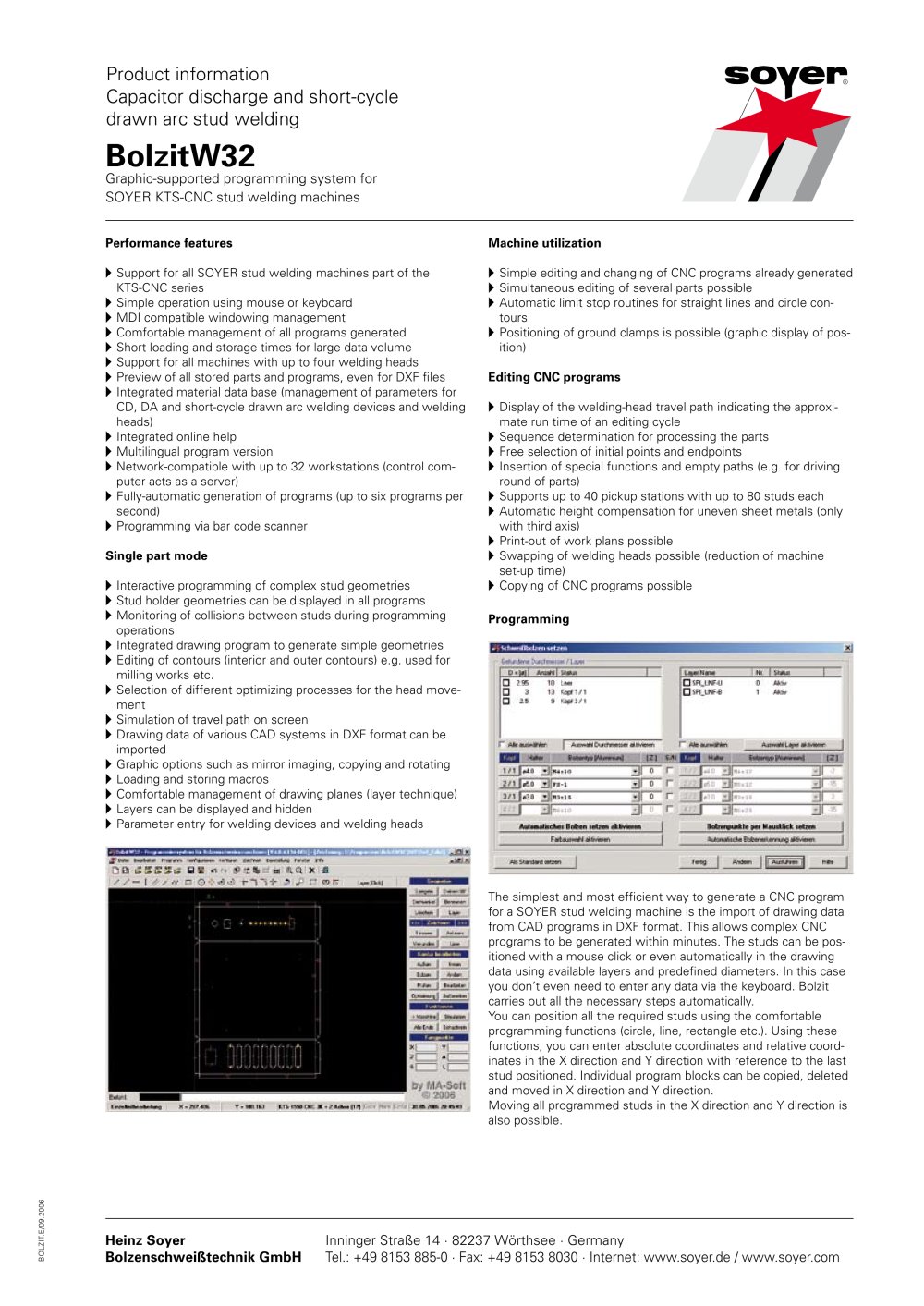

Product information

Capacitor discharge and short-cycle

drawn arc stud welding

Graphic-supported programming system for SOYER KTS-CNC stud welding machines

► Support for all SOYER stud welding machines part of the KTS-CNC series

► Simple operation using mouse or keyboard

► MDI compatible windowing management

► Comfortable management of all programs generated

► Short loading and storage times for large data volume

► Support for all machines with up to four welding heads

► Preview of all stored parts and programs, even for DXF files

► Integrated material data base (management of parameters for CD, DA and short-cycle drawn arc welding devices and welding heads)

► Integrated online help

► Multilingual program version

► Network-compatible with up to 32 workstations (control com­puter acts as a server)

► Fully-automatic generation of programs (up to six programs per second)

► Programming via bar code scanner Single part mode

► Interactive programming of complex stud geometries

► Stud holder geometries can be displayed in all programs

► Monitoring of collisions between studs during programming operations

Integrated drawing program to generate simple geometries Editing of contours (interior and outer contours) e.g. used for milling works etc.

Selection of different optimizing processes for the head move­ment

► Simulation of travel path on screen

► Drawing data of various CAD systems in DXF format can be imported

► Graphic options such as mirror imaging, copying and rotating

► Loading and storing macros

► Comfortable management of drawing planes (layer technique)

► Layers can be displayed and hidden

► Parameter entry for welding devices and welding heads

► Simple editing and changing of CNC programs already generated

► Simultaneous editing of several parts possible

► Automatic limit stop routines for straight lines and circle con­tours

► Positioning of ground clamps is possible (graphic display of pos­ition)

► Display of the welding-head travel path indicating the approxi­mate run time of an editing cycle

► Sequence determination for processing the parts

► Free selection of initial points and endpoints

► Insertion of special functions and empty paths (e.g. for driving round of parts)

► Supports up to 40 pickup stations with up to 80 studs each

► Automatic height compensation for uneven sheet metals (only with third axis)

► Print-out of work plans possible

► Swapping of welding heads possible (reduction of machine set-up time)

► Copying of CNC programs possible

The simplest and most efficient way to generate a CNC program for a SOYER stud welding machine is the import of drawing data from CAD programs in DXF format. This allows complex CNC programs to be generated within minutes. The studs can be pos­itioned with a mouse click or even automatically in the drawing data using available layers and predefined diameters. In this case you don't even need to enter any data via the keyboard. Bolzit carries out all the necessary steps automatically. You can position all the required studs using the comfortable programming functions (circle, line, rectangle etc.). Using these functions, you can enter absolute coordinates and relative coord­inates in the X direction and Y direction with reference to the last stud positioned. Individual program blocks can be copied, deleted and moved in X direction and Y direction.

Moving all programmed studs in the X direction and Y direction is also possible.
