| Product information Short-cycle drawn arc stud welding | |||||||||||||||||||
| it | |||||||||||||||||||

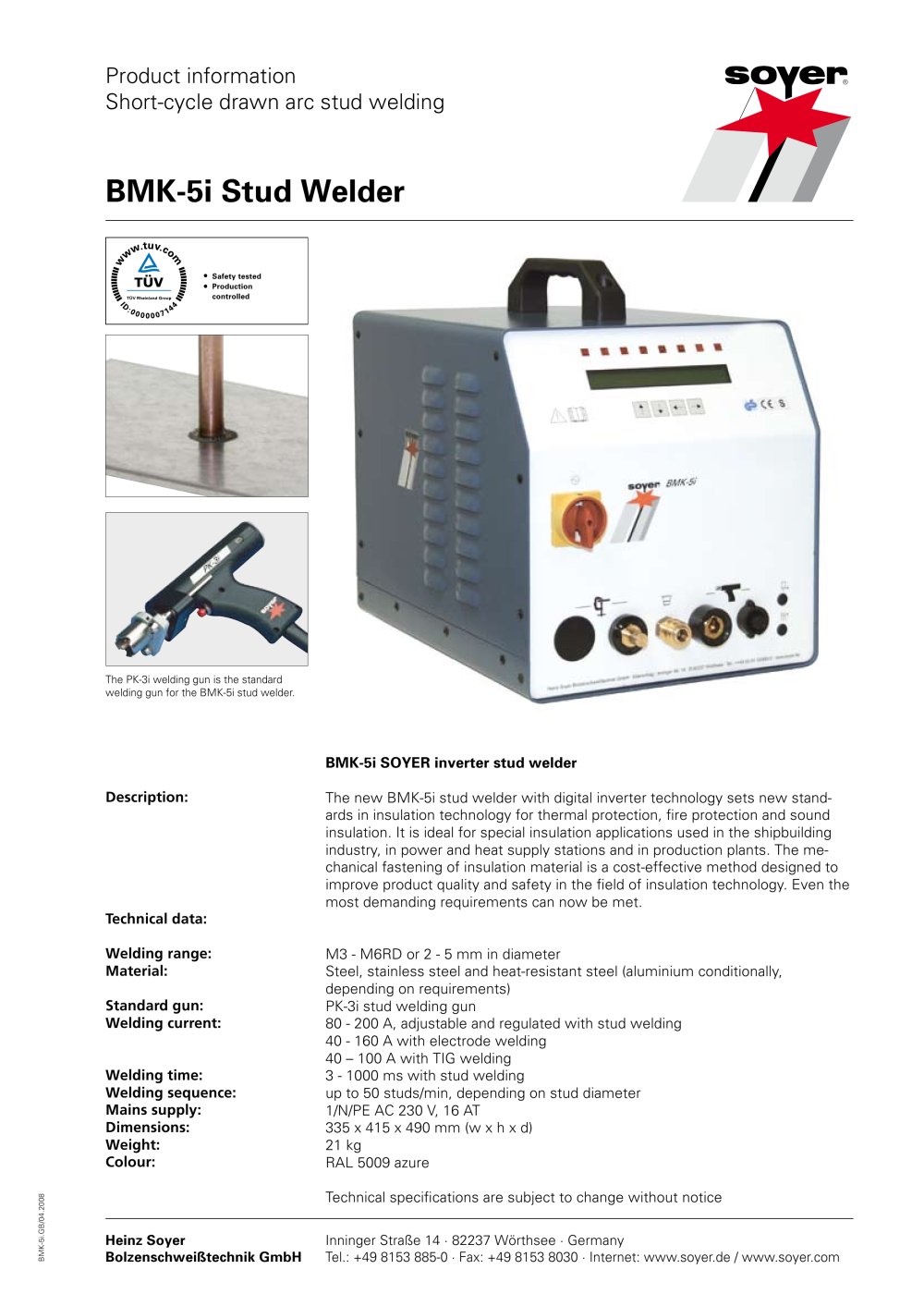

| BMK-5Î Stud Welder | |||||||||||||||||||
| BMK-5i SOYER inverter stud welder | |||||||||||||||||||
| Description: The new BMK-5i stud welder with digital inverter technology sets new stand- ards in insulation technology for thermal protection, fire protection and sound insulation. It is ideal for special insulation applications used in the shipbuilding industry, in power and heat supply stations and in production plants. The mechanical fastening of insulation material is a cost-effective method designed to improve product quality and safety in the field of insulation technology. Even the most demanding requirements can now be met. Technical data: | |||||||||||||||||||
| Welding range: Material: Standard gun: Welding current: | |||||||||||||||||||
| M3 - M6RD or 2 - 5 mm in diameter Steel, stainless steel and heat-resistant steel (aluminium conditionally, depending on requirements) PK-3i stud welding gun 80 - 200 A, adjustable and regulated with stud welding 40 - 160 A with electrode welding 40 - 100 A with TIG welding 3 - 1000 ms with stud welding up to 50 studs/min, depending on stud diameter 1/N/PE AC 230 V, 16 AT 335 x 415 x 490 mm (w x h x d) 21 kg RAL 5009 azure | |||||||||||||||||||
| Welding time: Welding sequence: Mains supply: Dimensions: Weight: Colour: | |||||||||||||||||||
| Technical specifications are subject to change without notice | |||||||||||||||||||
| Heinz Soyer Inninger Straße 14 • 82237 Wörthsee • Germany Bolzenschweißtechnik GmbH Tel.: +49 8153 885-0 • Fax: +49 8153 8030 • Internet: www.soyer.de / www.soyer.com | |||||||||||||||||||
