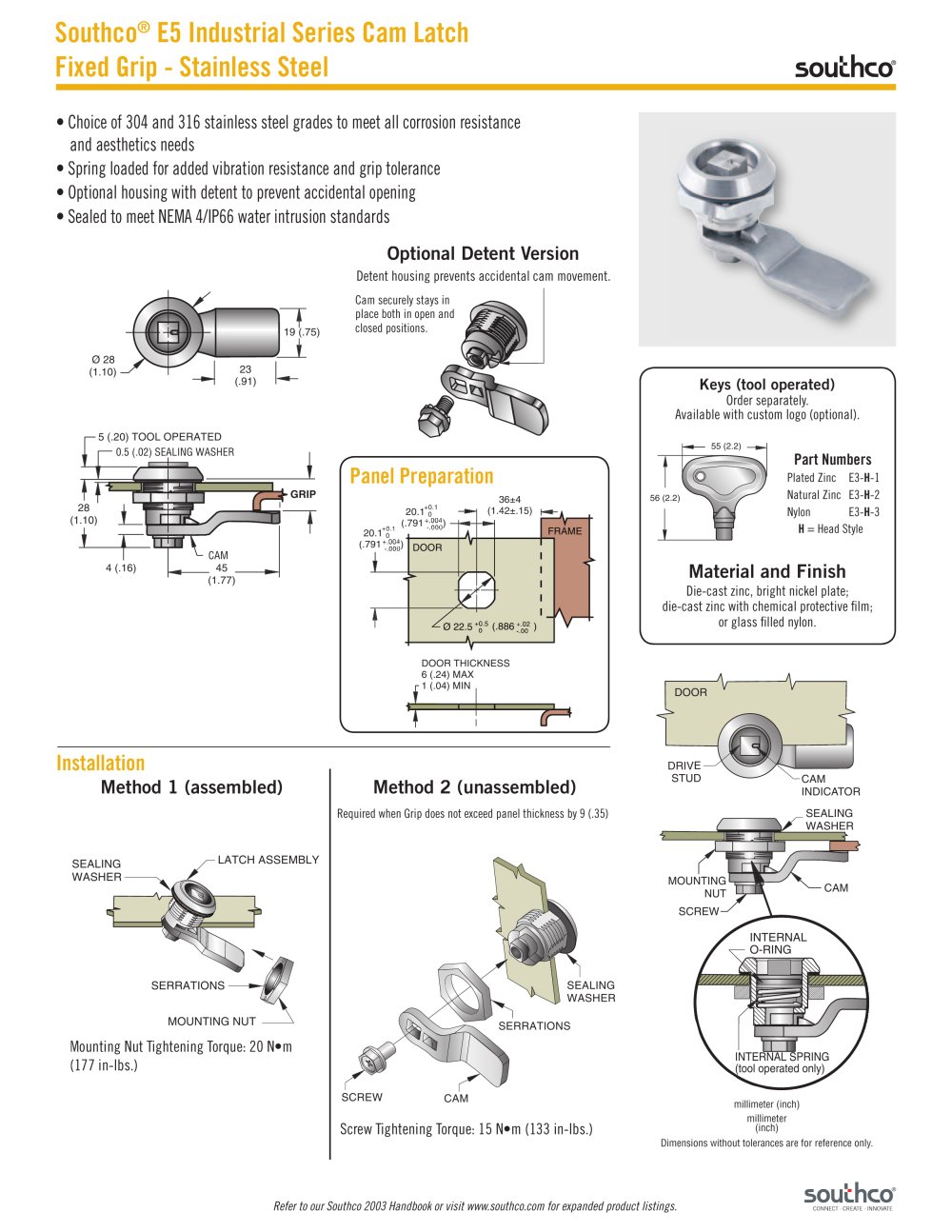

Southco® E5 Industrial Series Cam Latch Fixed Grip - Stainless Steel

southco³

• Choice of 304 and 316 stainless steel grades to meet all corrosion resistance and aesthetics needs

• Spring loaded for added vibration resistance and grip tolerance

• Optional housing with detent to prevent accidental opening

• Sealed to meet NEMA 4/IP66 water intrusion standards

Optional Detent Version

Detent housing prevents accidental cam movement.

Cam securely stays in place both In open and closed positions.

19^/75)

0 28 (1.10)

23 (.91)

5 (.20) TOOL OPERATED 0.5 (.02) SEALING WASHER

GRIP

d²i⁸o) i_p3L

i—FWÎ

CAM _ 45 _

(1.77)

4 (.16)

DRIVE STUD

IMOlCIMClMUII

CAM

INDICATOR

SEALING ~Sf WASHER

Method 1 (assembled)

Method 2 (unassembled)

Required when Grip does not exceed panel thickness by 9 (.35)

LATCH ASSEMBLY

SEALING WASHER

SERRATIONS

MOUNTING NUT

Mounting Nut Tightening Torque: 20 N»m (177 in-lbs.)

SCREW CAM

Screw Tightening Torque: 15 N»m (133 in-lbs.)

millimeter (inch)

Dimensions without tolerances are for reference only.

southco*

CONNECT - CREATE ■ INNOVATE

Refer to our Southco 2003 Handbook or visit www.southco.com for expanded product listings.
