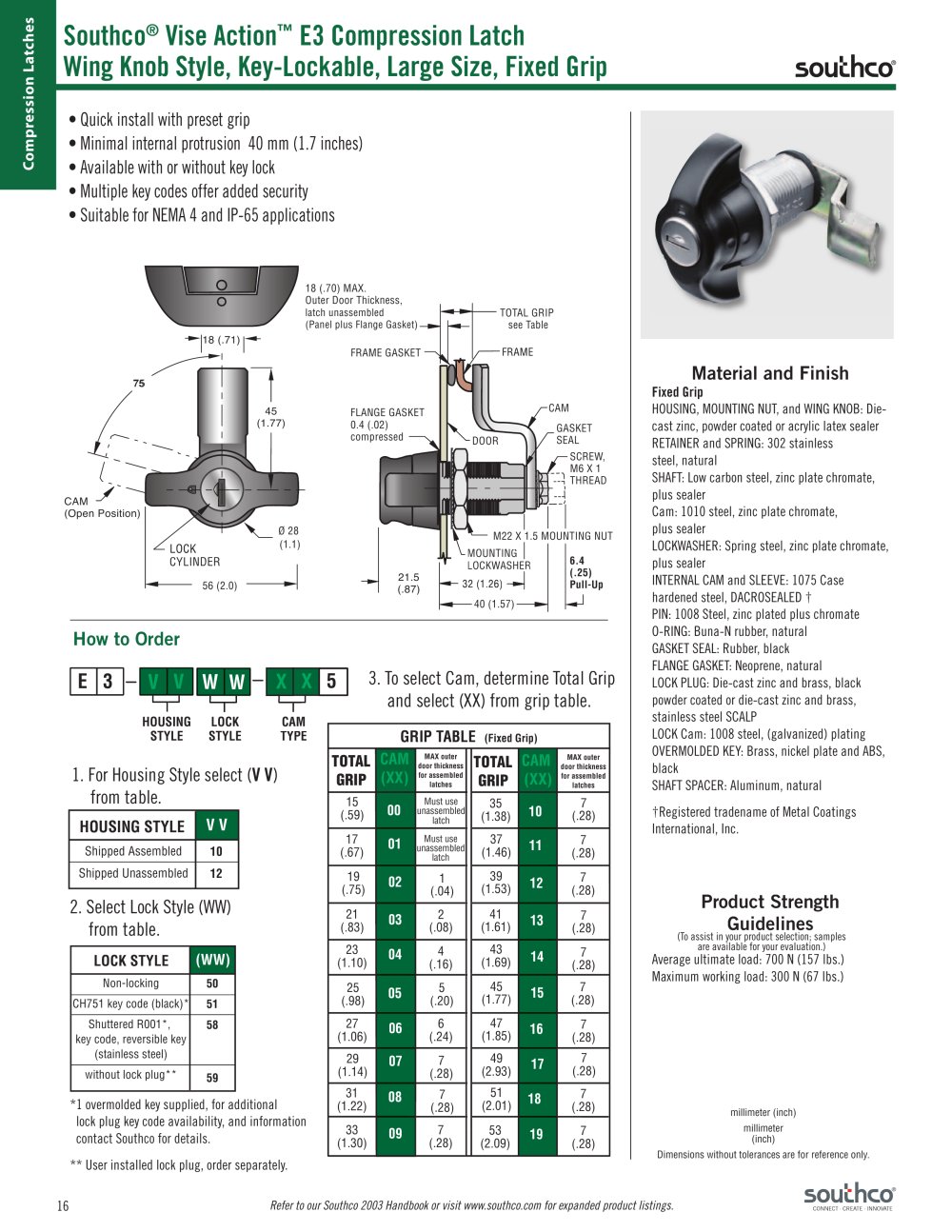

Southco® Vise Action™ E3 Compression Latch

Wing Knob Style, Key-Lockable, Large Size, Fixed Grip

—I

°3>

<u l_

E o

southco³

• Quick install with preset grip

• Minimal internal protrusion 40 mm (1.7 inches)

• Available with or without key lock

• Multiple key codes offer added security

• Suitable for NEMA 4 and IP-65 applications

18 (.70) MAX. Outer Door Thickness_;latch unassembled (Panel plus Flange Gasket)—»J

•TOTALGRIP

see Table

FRAMEGASKET —lì ^-FRAME

Material and Finish

Fixed Grip

HOUSING, MOUNTING NUT, and WING KNOB: Die-cast zinc, powder coated or acrylic latex sealer RETAINER and SPRING: 302 stainless steel, natural

SHAFT: Low carbon steel, zinc plate chromate, plus sealer

Cam: 1010 steel, zinc plate chromate, plus sealer

LOCKWASHER: Spring steel, zinc plate chromate, plus sealer

INTERNAL CAM and SLEEVE: 1075 Case hardened steel, DACROSEALED t PIN: 1008 Steel, zinc plated plus chromate 0-RING: Buna-N rubber, natural GASKET SEAL: Rubber, black FLANGE GASKET: Neoprene, natural LOCK PLUG: Die-cast zinc and brass, black powder coated or die-cast zinc and brass, stainless steel SCALP

LOCK Cam: 1008 steel, (galvanized) plating OVERMOLDED KEY: Brass, nickel plate and ABS, black

SHAFT SPACER: Aluminum, natural

tRegistered tradename of Metal Coatings International, Inc.

-CAM

GASKET ^SEAL

SCREW. M6X 1 A THREAD ■Ì

FLANGE GASKET 0.4 (.02)

compressed —

CAM S

(Open Position)

M22 X 1.5 MOUNTING NUT

-MOUNTING LOCKWASHER

²¹⁵ I—- 32 (1.26) -—I

6.4

(.25)

Pull-Up

56 (2.0)

(.87)

0(1.57)-

How to Order


v	v	w	w	—	x	5

3. To select Cam, determine Total Grip and select (XX) from grip table.

HOUSING LOCK STYLE STYLE

1. For Housing Style select (V V) from table.

CAM TYPE

GRIPTABLE (Fixed Grip)


TOTAL GRIP		MAX outer doorthickness forassembled latches	TOTAL GRIP	CAM (XX)	MAX outer doorthickness for assembled latches
15 (.59)		Must use unassembled latch	35 (1.38)		7 (.28)
17 (.67)		Must use unassembled latch	37 (1.46)		7 (.28)
19 (.75)		1 (.04)	39 (1.53)		7 (.28)
21 (.83)		2 (.08)	41 (1.61)		7 (.28)
23 (1.10)		4 (.16)	43 (1.69)		7 (.28)
25 (.98)		5 (.20)	45 (1.77)		7 (.28)
27 (1.06)	06	6 (.24)	47 (1.85)		7 (.28)
29 (1.14)	07 I 7 (.28)		49 (2.93)		7 (.28)
31 (1.22)	08 7 (.28)		51 (2.01)		7 (.28)
33 (1.30)	⁰⁹ I (-28)		53 (2.09)		7 (.28)


	HOUSING STYLE
	Shipped Assembled	10
	Shipped Unassembled	12
	2. Select Lock Style (WW) from table.
	LOCK STYLE
	Non-locking	50
	CH751 key code (black)*	51
	Shuttered R001*, key code, reversible key (stainless steel)	58
	without lock plug**	59

Product Strength Guidelines

(To assist In your product selection; samples are available for your evaluation.)

Average ultimate load: 700 N (157 lbs.) Maximum working load: 300 N (67 lbs.)

*1 overmolded key supplied, for additional lock plug key code availability, and information contact Southco for details.

millimeter (Inch)

Dimensions without tolerances are for reference only.

** User installed lock plug, order separately.

southco

CONNECT - CREATE ■ INNOVATE

Refer to our Southco 2003 Handbook or visit www. southco.com for expanded product listings.
