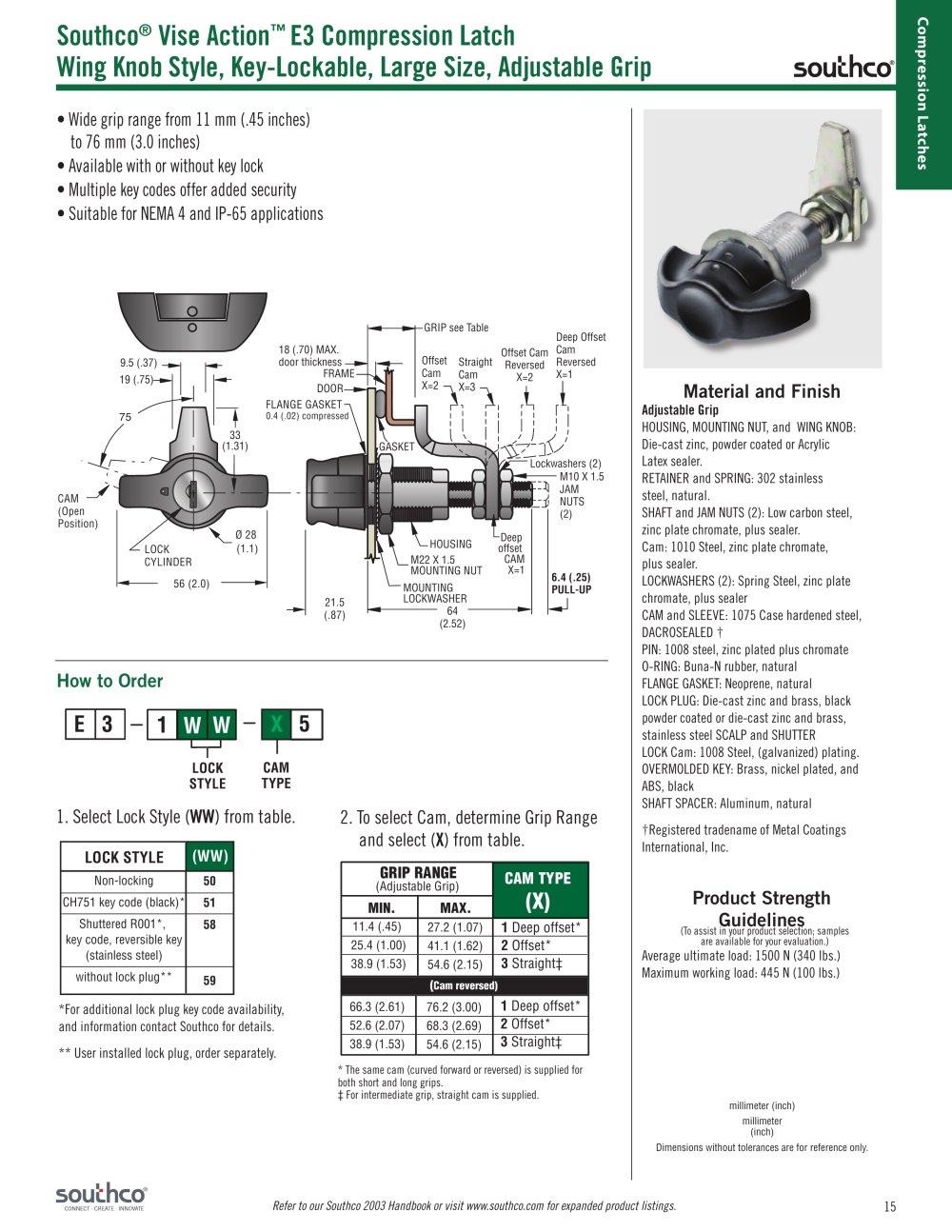

Southco® Vise Action™ E3 Compression Latch Wing Knob Style, Key-Lockable, Large Size, Adjustable Grip

• Wide grip range from 11 mm (.45 inches) to 76 mm (3.0 inches)

• Available with or without key lock

• Multiple key codes offer added security

• Suitable for NEMA 4 and IP-65 applications

■GRIPsee Table

Deep Offset

OffsetCam ^CamOffset straight Reversed Reversed Cam cam _x=2 ^x=1

18 (.70) MAX. door thickness -

FRAME-

DOOR-

FLANGE GASKET-0.4(.02)compressed\ I

Adjustable Grip

HOUSING, MOUNTING NUT, and WING KNOB: Die-cast zinc, powder coated or Acrylic Latex sealer.

RETAINER and SPRING: 302 stainless steel, natural.

SHAFT and JAM NUTS (2): Low carbon steel, zinc plate chromate, plus sealer. Cam: 1010 Steel, zinc plate chromate, plus sealer.

LOCKWASHERS (2): Spring Steel, zinc plate chromate, plus sealer

CAM and SLEEVE: 1075 Case hardened steel, DACR0SEALED t

PIN: 1008 steel, zinc plated plus chromate 0-RING: Buna-N rubber, natural FLANGE GASKET: Neoprene, natural LOCK PLUG: Die-cast zinc and brass, black powder coated or die-cast zinc and brass, stainless steel SCALP and SHUTTER LOCK Cam: 1008 Steel, (galvanized) plating. 0VERM0LDED KEY: Brass, nickel plated, and ABS, black

SHAFT SPACER: Aluminum, natural

tRegistered tradename of Metal Coatings International, Inc.

Lockwashers (2) M10X1.5 -1 JAM -$ NUTS ' (2)

CAM (Open Position)

6.4 (.25) PULL-UP

56 (2.0)

"MOUNTING LOCKWASHER 64 (2.52)

21.5 (.87)

now iu uruer

E[3|-M [Wlw

LOCK STYLE

CAM TYPE

1. Select Lock Style (WW) from table.

2. To select Cam, determine Grip Range and select (X) from table.


	LOCKSTYLE	(WW)
	Non-locking	50
	CH751 key code (black)*	51
	Shuttered R001*, key code, reversible key (stainless steel)	58
	withoutlockplug**	59


GRIP RANGE (Adjustable Grip)
MIN.	MAX.
11.4 (.45)	27.2 (1.07)	1 Deep offset*
25.4 (1.00)	41.1 (1.62)	2 Offset*
38.9 (1.53)	54.6 (2.15)	3 Straight*
(Cam reversed)
66.3 (2.61)	76.2 (3.00)	1 Deep offset*
52.6 (2.07)	68.3 (2.69)	2 Offset*
38.9 (1.53)	54.6 (2.15)	3 Straight*

Product Strength Guidelines

(To assist in your product selection; samples are available for your evaluation.)

Average ultimate load: 1500 N (340 lbs.) Maximum working load: 445 N (100 lbs.)

*For additional lock plug key code availability, and information contact Southco for details.

** User installed lock plug, order separately.

* The same cam (curved forward or reversed) is supplied for

both short and long grips.

X For intermediate grip, straight cam is supplied.

millimeter (inch)

Dimensions without tolerances are for reference only.
