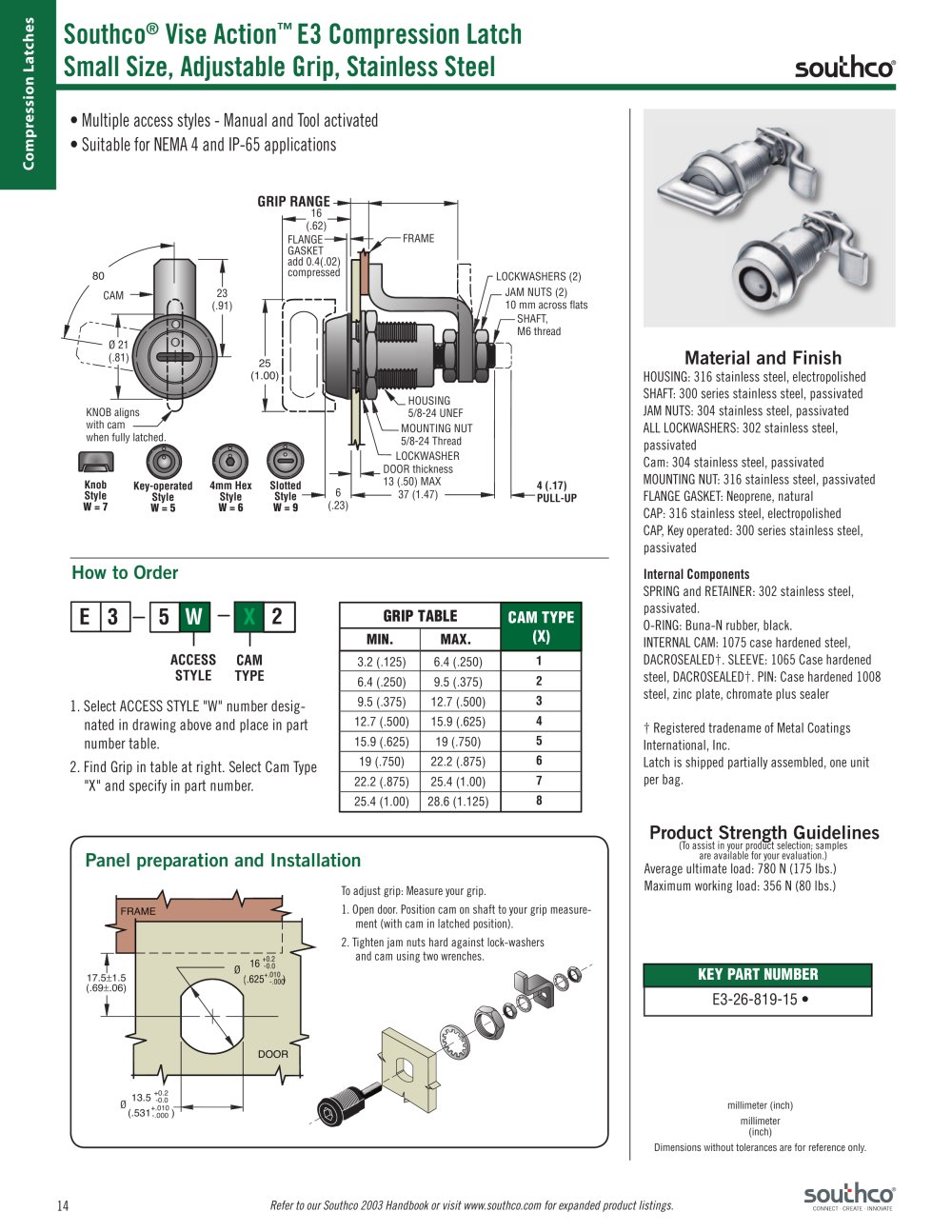

Compression Latches	Southco® Vise Action™ E3 Compression Latch Small Size, Adjustable Grip, Stainless Steel		southco*
Compression Latches	• Multiple access styles - Manual and Tool activated • Suitable for NEMA 4 and IP-65 applications	*s4i*

GRIP RANGE-»

(.62) FLANGE-GASKET

LOCKWASHERS (2) JAM NUTS (2) 10 mm across flats

SHAFT, M6 thread

] J

Material and Finish

HOUSING: 316 stainless steel, electropolished SHAFT: 300 series stainless steel, passivated JAM NUTS: 304 stainless steel, passivated ALL LOCKWASHERS: 302 stainless steel, passivated

Cam: 304 stainless steel, passivated MOUNTING NUT: 316 stainless steel, passivated FLANGE GASKET: Neoprene, natural CAP: 316 stainless steel, electropolished CAP, Key operated: 300 series stainless steel, passivated

Internal Components

SPRING and RETAINER: 302 stainless steel, passivated.

0-RING: Buna-N rubber, black. INTERNAL CAM: 1075 case hardened steel, DACROSEALEDt. SLEEVE: 1065 Case hardened steel, DACROSEALEDt. PIN: Case hardened 1008 steel, zinc plate, chromate plus sealer

t Registered tradename of Metal Coatings International, Inc.

Latch is shipped partially assembled, one unit per bag.

25 (1.00)

KNOB aligns with cam when fully latched.

Knob Style W = 7

Key-operated 4mm Hex Slotted Style Style Style -

W=5 W=6 W=9

4(.17) " PULL-UP

(.23)

How to Order


GRIP TABLE
MIN.	MAX.
3.2 (.125)	6.4 (.250)	1
6.4 (.250)	9.5 (.375)	2
9.5 (.375)	12.7 (.500)	CO
12.7 (.500)	15.9 (.625)	4
15.9 (.625)	19 (.750)	5
19 (.750)	22.2 (.875)	6
22.2 (.875)	25.4 (1.00)	7
25.4 (1.00)	28.6 (1.125)	CO

E3 - 5

ACCESS CAM STYLE TYPE

1. Select ACCESS STYLE "W" number designated in drawing above and place in part number table.

2. Find Grip in table at right. Select Cam Type "X" and specify in part number.

Product Strength Guidelines

(To assist in your product selection; samples are available for your evaluation.)

Average ultimate load: 780 N (175 lbs.) Maximum working load: 356 N (80 lbs.)

nel preparation and Installation

To adjust grip: Measure your grip.

1. Open door. Position cam on shaft to your grip measurement (with cam in latched position).

2. Tighten jam nuts hard against lock-washers and cam using two wrenches.

U'lJI:,!¹!!'

17.5±1.5 (.69±.06)

E3-26-819-15«

millimeter (inch)

Dimensions without tolerances are for reference only.

(.53 1 ^+.ooo° )"

southco"

14 Refer to our Southco 2003 Handbook or visit www.southco.com for expanded product listings. connect - create ■ innovate
