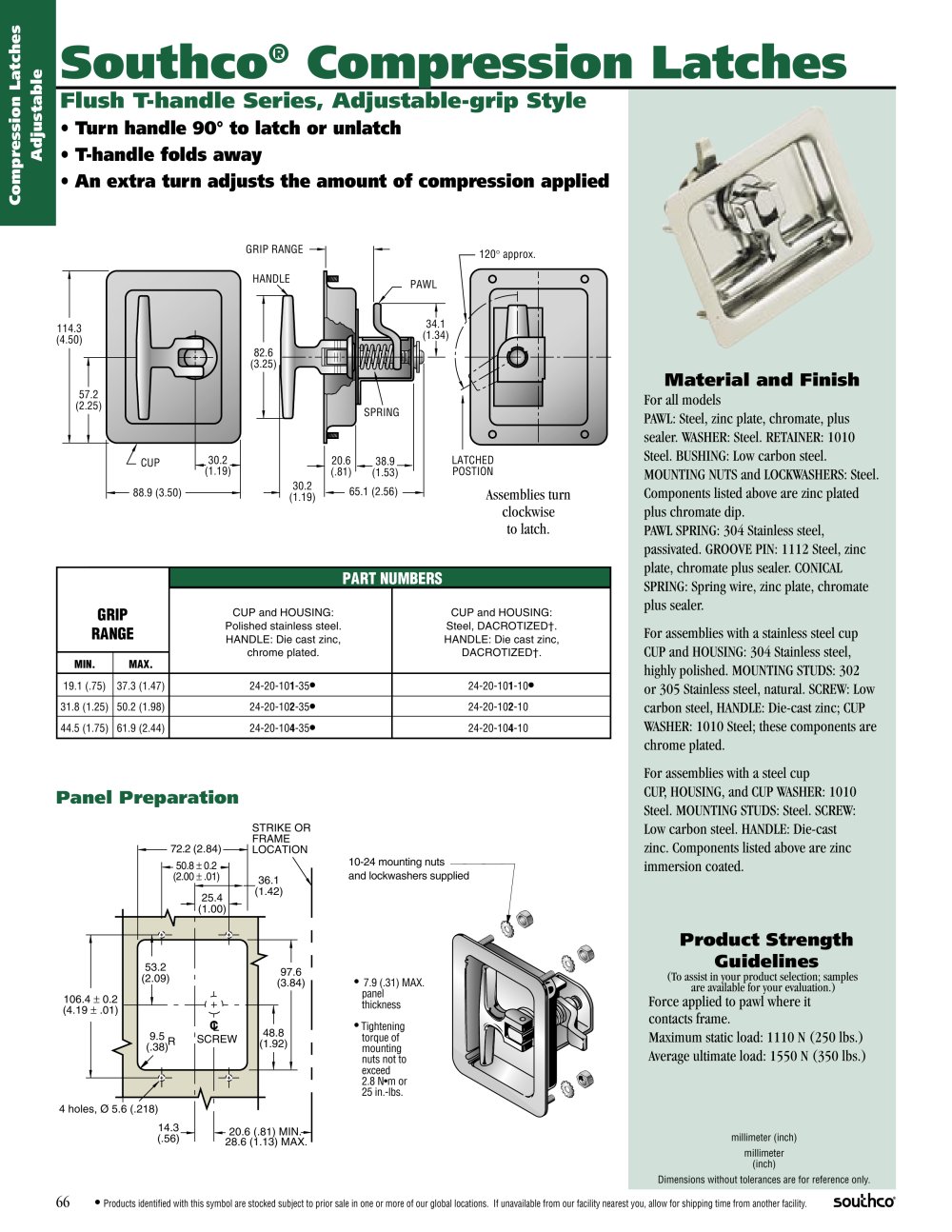

Southco® Compression Latches

Flush T-handle Series, Adjustable-grip Style

• Turn handle 90° to latch or unlatch

• T-handle folds away

• An extra turn adjusts the amount of compression applied



		PAWL
		1
		34.1

GRIP RANGE

■ 120° approx.

114.3 (4.50)

Material and Finish

For all models

PAWL: Steel, zinc plate, chromate, plus sealer. WASHER: Steel. RETAINER: 1010 Steel. BUSHING: Low carbon steel. MOUNTING NUTS and LOCKWASHERS: Steel. Components listed above are zinc plated plus chromate dip. PAWL SPRING: 304 Stainless steel, passivated. GROOVE PIN: 1112 Steel, zinc plate, chromate plus sealer. CONICAL SPRING: Spring wire, zinc plate, chromate plus sealer.

For assemblies with a stainless steel cup CUP and HOUSING: 304 Stainless steel, highly polished. MOUNTING STUDS: 302 or 305 Stainless steel, natural. SCREW: Low carbon steel, HANDLE: Die-cast zinc; CUP WASHER: 1010 Steel; these components are chrome plated.

For assemblies with a steel cup CUP, HOUSING, and CUP WASHER: 1010 Steel. MOUNTING STUDS: Steel. SCREW: Low carbon steel. HANDLE: Die-cast zinc. Components listed above are zinc immersion coated.

30.2 (1.19)

Assemblies turn clockwise to latch.


GRIP RANGE		PART NUMBERS
GRIP RANGE		CUP and HOUSING: Polished stainless steel. HANDLE: Die cast zinc, chrome plated.	CUP and HOUSING: Steel, DACROTIZEDt. HANDLE: Die cast zinc, DACROTIZEDt.
MIN.	MAX.
19.1 (.75)	37.3 (1.47)	24-20-101-35»	24-20-101-10»
31.8(1.25)	50.2 (1.98)	24-20-102-35»	24-20-102-10
44.5 (1.75)	61.9(2.44)	24-20-104-35»	24-20-104-10

Panel Preparation

STRIKE OR

FRAME

LOCATION

-72.2 (2.84)-

(—50.8 + 0.2-I

(2.00 ±.01)

10-24 mounting nuts-

and lockwashers supplied

36.1 "(1.42)

25.4 (100)

Product Strength Guidelines

(To assist in your product selection; samples are available for your evaluation.)

Force applied to pawl where it contacts frame.

Maximum static load: 1110 N (250 lbs.) Average ultimate load: 1550 N (350 lbs.)

^ 97.6 ' (3.84)

53.2 (2^09)

• 7.9 (.31) MAX. panel thickness

•Tightening

torque of mounting nuts not to exceed 2.8 Nrn or 25 in.-lbs.

-( + )--

SCREW

106.4: (4.19 +

:0.2 .01)

48.8 (1.92)

9.5 n (.38)^M

3="

4 holes, 0 5.6 (.218)

¹⁴-³— L

(.56)~l I*

20.6 (.81) MIN.-H 28.6 (1.13) MAX.¹

millimeter (Inch)

Dimensions without tolerances are for reference only.

souLhco"

' Products Identified with this symbol are stocked subject to prior sale In one or more of our global locations. If unavailable from our facility nearest you, allow for shipping time from another facility.
