UTG
Plastic
connector
with metal
coupling system
Description

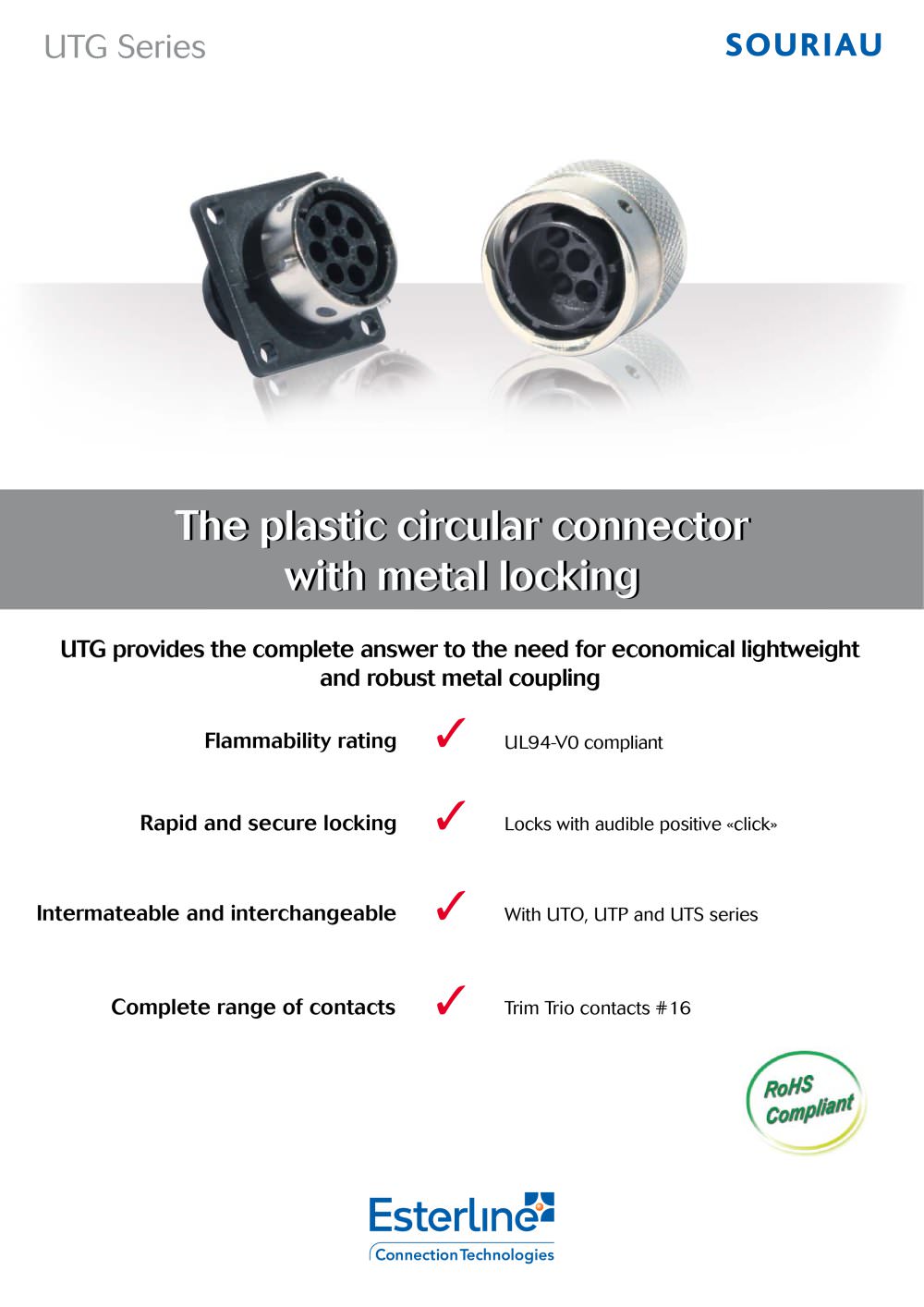

“UTG” Metalok Bantam plastic industrial
circular
connectors with metal coupling are
a range of multiway
connectors to provide
the complete answer to the need for
leightweight, robust circular
connectors.
They are available in 8 shell sizes, 11
insert arrangements all intermateable,
interchangeable and intermountable
with the TRIM TRIO “UT0” and “UTP
industrial
connector families.
Features and benefits
• Available in 8 shell sizes and 11
insert
arrangements incl. 3 VDE versions.
• Available in plug and receptacle versions
for both male and female contacts.
• Connectors and accessories are
moulded from highly durable glass-filled
thermoplastic.
• Flammability rating: UL94-V0.
• Metal bayonet ring:
• - Metal wave spring loaded.
• - Locks with audible positive “click”
• - Assures 500 matings and unmatings
- UL recognized file Nr.: E238675
Performance characteristics
Operating
temperature: -55°C to +125°C
Insulation
resistance: 5000 MÙ min.
Test potential: 2000 VAC
Durability: 500 matings and
unmatings.
Vibration Per MIL-STD202
resistance: method 204
Thermal Per MIL-STD202
shock: method 207
Degree of protection per DIN 40050:
IP65 in mated condition. “H” version used
with waterprotected backshells.
Construction
Connector body
Glass filled thermoplast UL94-V0
Colour: black
Coupling ring: Nickel plated brass
Tri-lock pins: Stainless steel
Coupling spring: Spring steel
Contact accommodation
• “UTG”
connectors accept TRIM TRIO size
16 removable snap-lock contacts (see
contact section)
• Contacts to be ordered seperately.
How to order
- -
- -
H
N
PS
12
12
14
14
06
UTG
UTG
Connector family :
Body variation: 0 : Wall mounting receptacle
6 : Cable plug
1 : Free hanging receptacle
Shell size:
Insert arrangement:
Type of contacts: P : Pin contacts
S : Socket contacts
Plating N : Nickelplated bayonet ring
Application No letter : Standard version
H : Water protected version (only receptacle)
Design variation No letter : Moulded-in contact marking (standard version)
Others : Specials versions
