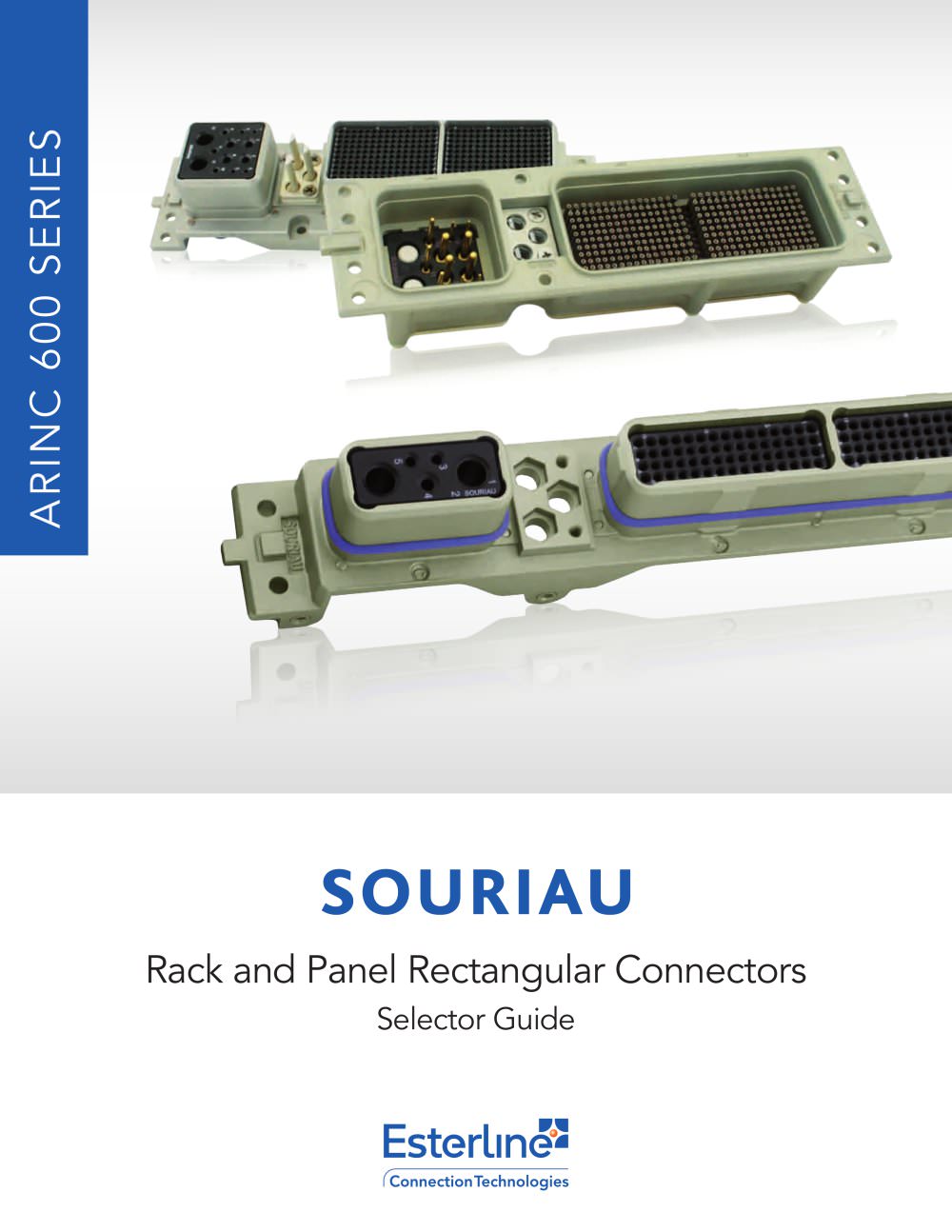

ARINC 600  (SB 600) - SOURIAU
P. 01
ARINC 600  (SB 600) - SOURIAU
P. 02
ARINC 600  (SB 600) - SOURIAU
P. 03
ARINC 600  (SB 600) - SOURIAU
P. 04
ARINC 600  (SB 600) - SOURIAU
P. 05
ARINC 600  (SB 600) - SOURIAU
P. 06
ARINC 600  (SB 600) - SOURIAU
P. 07
ARINC 600  (SB 600) - SOURIAU
P. 08
ARINC 600  (SB 600) - SOURIAU
P. 09
ARINC 600  (SB 600) - SOURIAU
P. 10
ARINC 600  (SB 600) - SOURIAU
P. 11
ARINC 600  (SB 600) - SOURIAU
P. 12
Pages:
ARINC 600  (SB 600) - SOURIAU


See other catalogues for SOURIAU

Text version of the page
SB600 Series
Description
Applications
Mechanical and electrical interface between on-board civil avionics equipments and racks
• Rack and panel connector
• High density up to 800 signal contacts
• Low insertion force contact design (tapered pin, lif socket)
• Sealed and unsealed versions
• Multiple polarizing positions
• Field replaceable thermoset inserts, featu­ring .006 in true position of contact cavities
• Choice of front and rear removable contacts
• Contacts : signal, power, coaxial, triaxal, filter, optical fiber and waveguide connection contacts
• Wide range of high performance rack applications
Standards
Arinc 600
Characteristics Mechanical
Climatic
• Temperature rating : -65°C to +125°C for both classes, sealed and unsealed
• Fluid resistance : hydraulic to MIL-H 5606 lubricating to MIL-L 23699 - isopropyl alcohol
• Resistance to salt spray : 48 hours
MIL-STD-202 method 101 or
MIL-STD-1344 method 1001
• Sealing : environment resistant (sealed version)
Electrical
• dielectric withstanding voltage
mated
unmated
sea level
1 500 Vrms
1 500 Vrms
15 000 m
^■500 Vrms
^■500 Vrms
material
finish
shells
aluminum alloy to QQ-A-591
alodine 1200 passivation to MIL-C 5541 class 1
insulator
epoxy resin thermoset
seals and grommets
fluorinated silicon to MIL-R-25988
contacts
copper alloy to QQ-B-626
gold plated to MIL-G-45204 over nickel to QQ-N-290
• voltage rating : 500 Vac Max 125 Vac at 21 000 m
• insulation resistance : > 5000 MQ
• current ratings, continuous :
contact
wire gauge
current (A)
voltage drop max (mV)*
22
22 24 26
5
3
2
40
30 25
20
20 22 24
7,5
5 3
55
40 30
16
16
13
50
12
12
23
45
• endurance : 500 matings
• insertion and extraction forces max : shell size 1 : 120N (27 lbs)
shell size 2 : 267N (60 lbs) shell size 3 : 467N (105 lbs)
• vibration : 8 hours in each axis. Random vibration at 16.4 g Rms from 50 to 2000 Hz. MIL-STD-1344 A method 2005-1
• dynamic shock : 3 impacts of 50 g in all axis, dura­tion 11us (half wave) to MIL-STD-202 method 213
Ordering information
basic series
* measured over a conductor length of 150 mm
• triaxial contact size 8
bandwidth : 0-20 MHz - voltage rating : 500 Vac Max 125 Vac at 21 000 m - voltage drop : inner and middle contact < 55 mV under 1A - outer contact < 75 mV under 12A
SB6 0 2 M G 13 W2 P 00 01 AN
class 0- sealed
1- unsealed
2- semi-environmental (without O-ring)
3- semi-environmental (without O-ring and compound) A - plug semi-environmental
(without O-ring and compound) with RFI shielded
(only shell size 2 - 3) B- unsealed plug with RFI shielded (only shell size 2 - 3) D- unsealed with grounding fingers
shell size 1-2 - 3
shell style M- rack plug
F- equipment receptacle
series G- rear release signal and power contacts
H- front release signal contacts (PC and WW terminations female) and rear release power contacts
mounting styles (see schedule n°1) p 159
insert arrangement code - in cavities C and F (see schedule n°2 p 159)
style of signal contacts P- # 22 - male (rack plug)
S- # 22 - female (equipment receptacle)
insert arrangement code - in cavities A-B-D-E (see schedule n°3 p 159)
polarization code (see schedule n°5 p 160)
connector packaging code (see schedule n°4 p 159)
157
