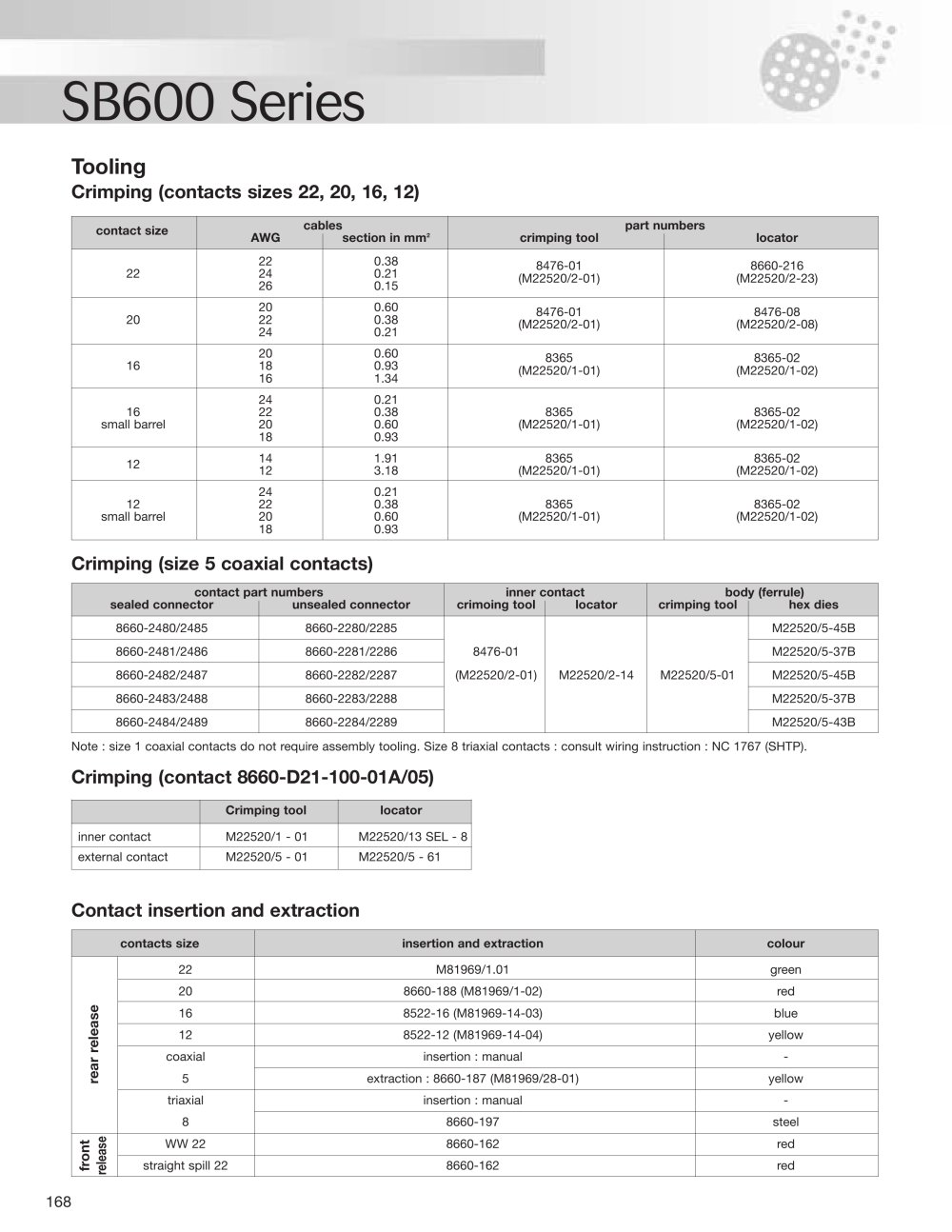

| | | SB600 Series | | |
| | | |
| | | Tooling Crimping (contacts sizes 22, 20, 16, 12) | | |
| | | |
| | | | | | | | | | | | | contact size | cab AWG | lies section in mm2 | part m crimping tool | mbers locator | | | | 22 | 22 24 26 | 0.38 0.21 0.15 | 8476-01 (M22520/2-01) | 8660-216 (M22520/2-23) | | | | 20 | 20 22 24 | 0.60 0.38 0.21 | 8476-01 (M22520/2-01) | 8476-08 (M22520/2-08) | | | | 16 | 20 18 16 | 0.60 0.93 1.34 | 8365 (M22520/1-01) | 8365-02 (M22520/1-02) | | | | 16 small barrel | 24 22 20 18 | 0.21 0.38 0.60 0.93 | 8365 (M22520/1-01) | 8365-02 (M22520/1-02) | | | | 12 | 14 12 | 1.91 3.18 | 8365 (M22520/1-01) | 8365-02 (M22520/1-02) | | | | 12 small barrel | 24 22 20 18 | 0.21 0.38 0.60 0.93 | 8365 (M22520/1-01) | 8365-02 (M22520/1-02) | | | | | | | | | | | | |
| | | |
| | | Crimping (size 5 coaxial contacts) | | |
| | | |
| | | | | | | | | | | | | | contact pa sealed connector | rt numbers unsealed connector | inner c crimoing tool | ontact locator | bod crimping tool | y (ferrule) hex dies | | | | 8660-2480/2485 | 8660-2280/2285 | 8476-01 (M22520/2-01) | M22520/2-14 | M22520/5-01 | M22520/5-45B | | | | 8660-2481/2486 | 8660-2281/2286 | M22520/5-37B | | | | 8660-2482/2487 | 8660-2282/2287 | M22520/5-45B | | | | 8660-2483/2488 | 8660-2283/2288 | M22520/5-37B | | | | 8660-2484/2489 | 8660-2284/2289 | M22520/5-43B | | | | | | | | | | | | | |
| | | |
| | | Note : size 1 coaxial contacts do not require assembly tooling. Size 8 triaxial contacts : consult wiring instruction : NC 1767 (SHTP). Crimping (contact 8660-D21-100-01A/05) | | |
| | | |
| | | | | | | | | | | | Crimping tool | locator | | | | inner contact | M22520/1 - 01 | M22520/13 SEL - 8 | | | | external contact | M22520/5 - 01 | M22520/5 - 61 | | | | | | | | | | |
| | | |
| | | Contact insertion and extraction | | |
| | | |
| | | | | | | | | | | | contacts size | insertion and extraction | colour | | | | | 22 | M81969/1.01 | green | | | | | 20 | 8660-188 (M81969/1-02) | red | | | | rear release | 16 | 8522-16 (M81969-14-03) | blue | | | | 12 | 8522-12 (M81969-14-04) | yellow | | | | coaxial | insertion : manual | - | | | | 5 | extraction : 8660-187 (M81969/28-01) | yellow | | | | | triaxial | insertion : manual | - | | | | | 8 | 8660-197 | steel | | | | front release | WW 22 | 8660-162 | red | | | | straight spill 22 | 8660-162 | red | | | | | | | | | | | |
| | | |
| | | 168 | | |
| | | |
| | | | | | | | | | | | | | | | | |
