SureWeld
™ A compact, low-priced machine for bonding plastic
parts, inserting metal fasteners, punching holes, and bonding industrial films and synthetic materials.
General Description
The Sonobond SureWeld 20 Integrated Ultrasonic Welder is ideal for manufacturers seeking a basic, low-priced weld-
ing unit. It is also an excellent model for those wishing to
introduce
ultrasonic welding into their production process.
The SureWeld 20 Integrated Welder consists of a rugged
welding press with the power supply located in the
welding head. Because of its integrated construction, this model
requires less bench space than
industrial welders with separate
power supplies. Nevertheless, the unit's high power 20 kHz fre-
quency output can accommodate even the toughest
plastic assembly, metal fastener insertion, and textile fabrication. Sonobond matches each customer's specific application bycustom configuring the welding horns and nests or fixtures
for optimum performance. The SureWeld 20 Integrated
Welder can easily be equipped with tooling for welding,
inserting, degating, staking, and swaging/forming.
Features and Benefits
• A rigid rectangular support column eliminates deflection –even at full force level• Built-in leveling feature in the base with “T” slot and toeclamps for holding the fixture. No more shims to level the
nest• Convenient changeover. Simply loosen bolt and opencover to remove or replace the converter/booster/horn• Full 360-degree rotation of converter/horn for easy alignment• Full range of boosters available
• Flush-mounted
pressure gage with English and metricunits and precision locking regulator• Calibrated
flow control for downspeed
•
Crossed roller slide in actuator. Precision dovetail slidebetween actuator and support column• Actuator stroke of 4 inches with precision downstop andeasy-to-read scale• More energy efficient than heat
sealing machines

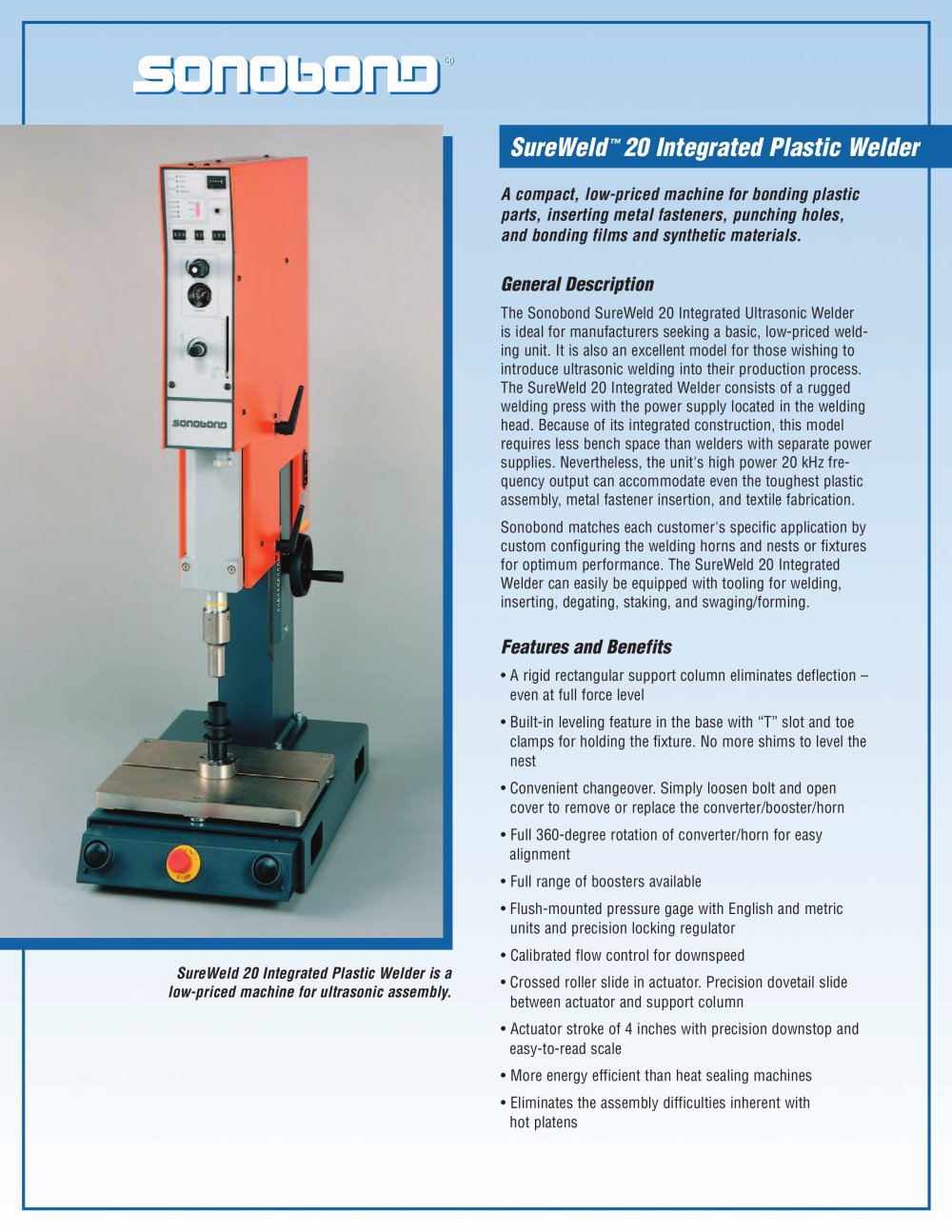

• Eliminates the assembly difficulties inherent with hot platens SureWeld 20 Integrated Plastic Welder is alow-priced machine for ultrasonic assembly.
