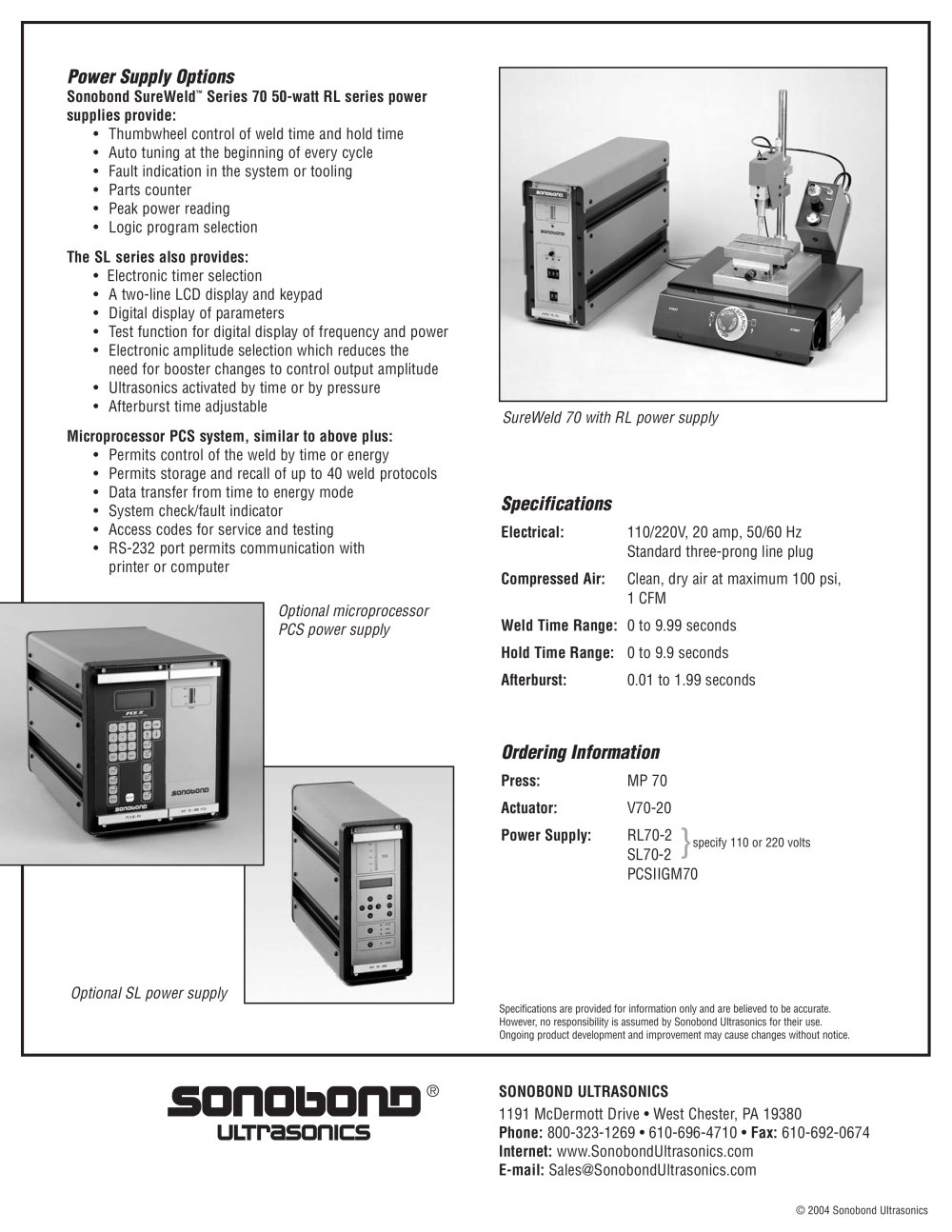

Power Supply Options

The SLseries also provides: • Permits control of the weld by time or energy • Permits storage and recall of up to 40 weld protocols • Data transfer from time to energy mode • System check/fault indicator • Access codes for service and testing • RS-232 port permits communication with printer or computer Sonobond SureWeld • Electronic timer selection • A two-line LCD display and keypad • Digital display of parameters • Test function for digital display of frequency and power • Electronic amplitude selection which reduces the need for industrial booster changes to control output amplitude• Ultrasonics activated by time or by pressure •Afterburst time adjustable
™ Series 70 50-watt RL series industrial power supplies provide: • Thumbwheel control of weld time and hold time •Auto tuning at the beginning of every cycle • Fault indication in the system or tooling • Parts industrial counter • Peak power reading •Logic program selection SureWeld 70 with RL power supply

Specifications

Electrical: 110/220V, 20 amp, 50/60 HzStandard three-prong line plug Compressed air: Clean, dry air at maximum 100 psi, 1 CFM Optional microprocessor PCSpower supply Weld Time Range: 0 to 9.99 seconds Hold Time Range: 0 to 9.9 seconds Afterburst: 0.01 to 1.99 seconds

Ordering Information

Press: MP 70 Actuator: V70-20 Power Supply: RL70-2SL70-2 PCSIIGM70

}

specify 110 or 220 volts Optional SLpower supply
Specifications are provided for information only and are believed to be accurate. However, no responsibility is assumed by Sonobond Ultrasonics for their use.Ongoing product development and improvement may cause changes without notice. ® SONOBOND ULTRASONICS 1191 McDermott Drive • West Chester, PA 19380 Phone: 800-323-1269 • 610-696-4710 • Fax: 610-692-0674 Internet: www.SonobondUltrasonics.com E-mail: Sales@SonobondUltrasonics.com
© 2004 Sonobond Ultrasonics
