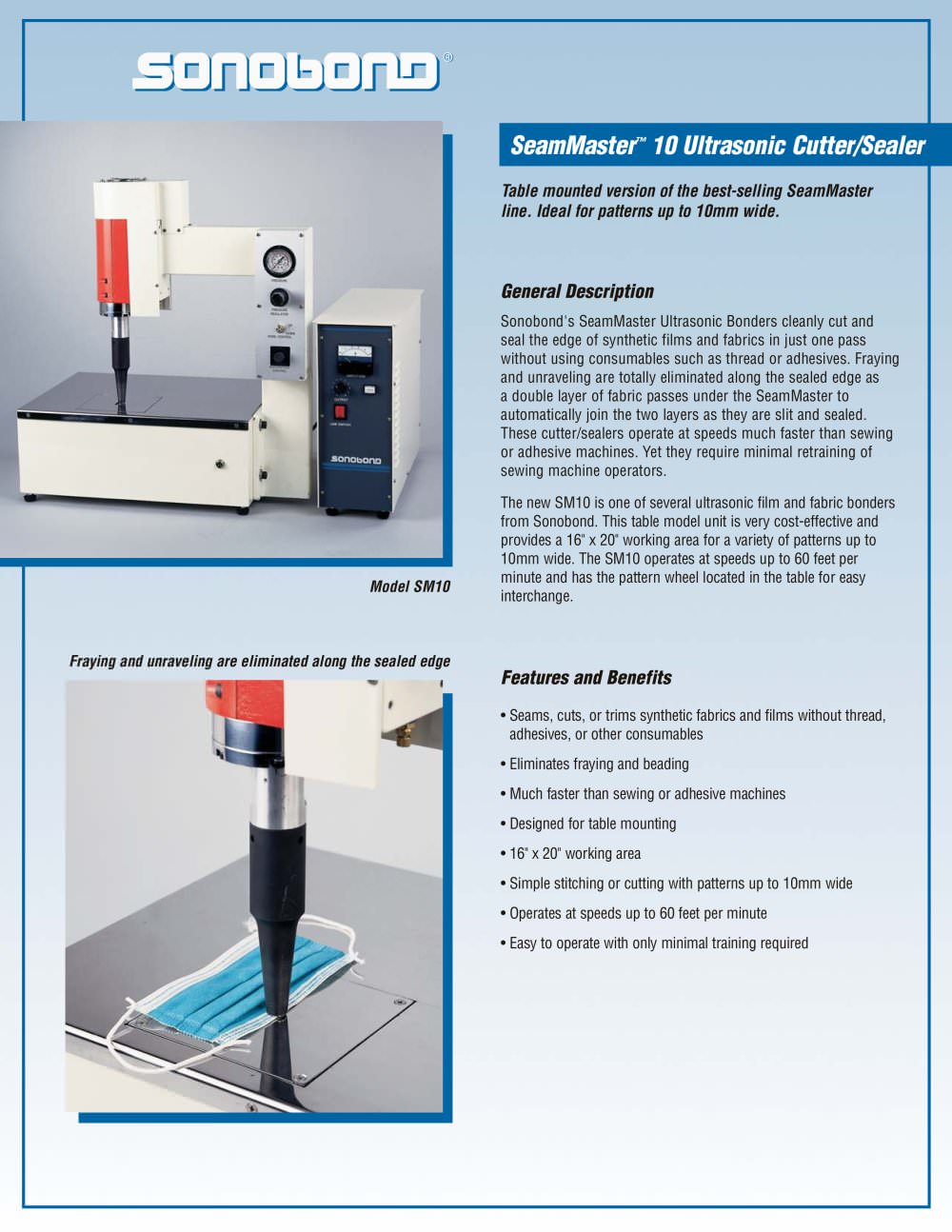

SeamMaster

™

10 Ultrasonic Cutter/Sealer

Table mounted version of the best-selling SeamMasterline. Ideal for patterns up to 10mm wide.

General Description

Sonobond's SeamMaster Ultrasonic Bonders cleanly cut andseal the edge of synthetic industrial films and industrial fabrics in just one pass without using consumables such as thread or adhesives. Fraying and unraveling are totally eliminated along the sealed edge as a double layer of fabric passes under the SeamMaster to automatically join the two layers as they are slit and sealed. These cutter/sealers operate at speeds much faster than sewing or adhesive machines. Yet they require minimal retraining of sewing machine operators. The new SM10 is one of several ultrasonic film and fabric bondersfrom Sonobond. This table model unit is very cost-effective and provides a 16" x 20" working area for a variety of patterns up to 10mm wide. The SM10 operates at speeds up to 60 feet per minute and has the pattern wheel located in the table for easy interchange. Model SM10Fraying and unraveling are eliminated along the sealed edge

Features and Benefits

• Seams, cuts, or trims synthetic fabrics and films without thread,adhesives, or other consumables• Eliminates fraying and beading • Much faster than sewing or adhesive machines • Designed for table mounting • 16" x 20" working area • Simple stitching or cutting with patterns up to 10mm wide • Operates at speeds up to 60 feet per minute • Easy to operate with only minimal training required
