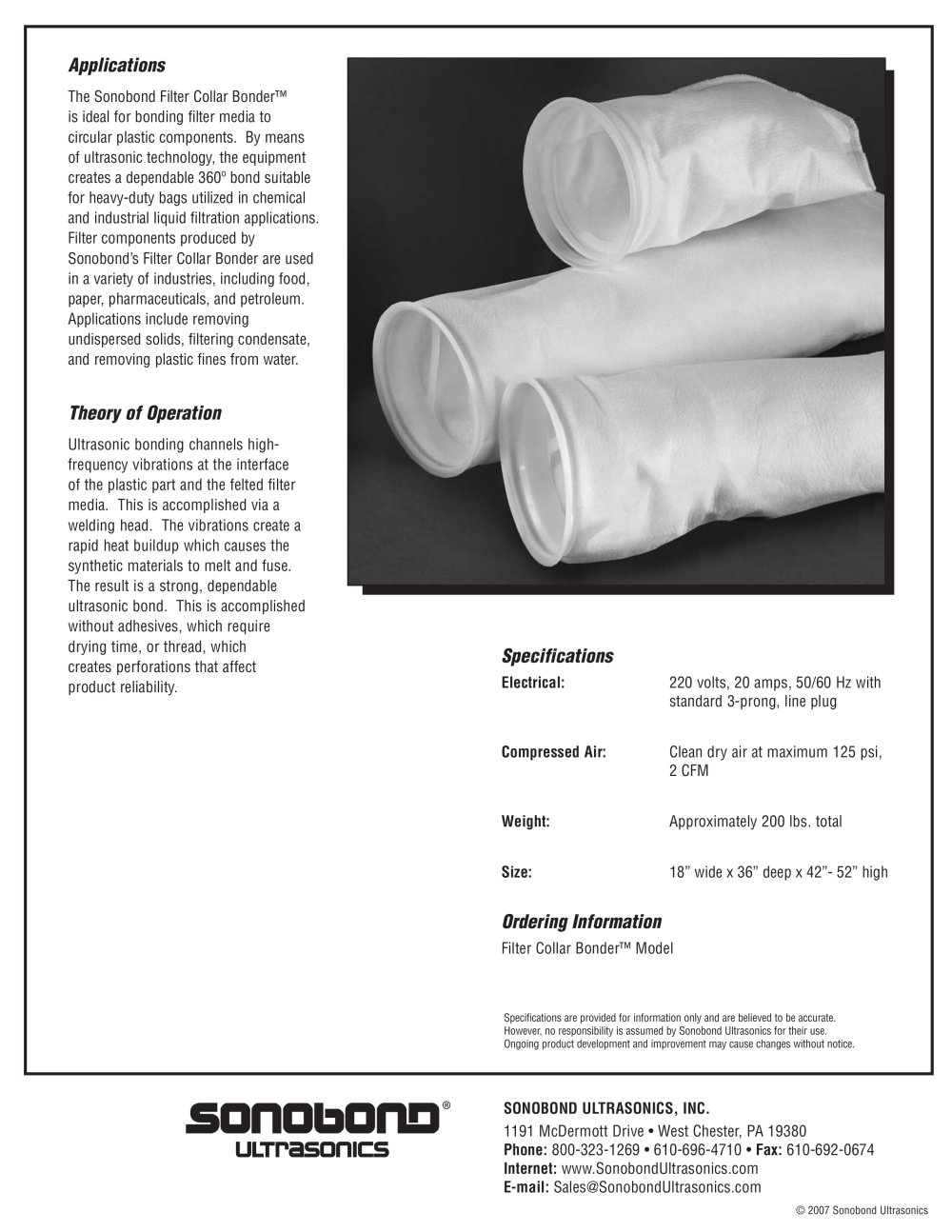

Applications

The Sonobond Filter Collar Bonder™ is ideal for bonding filter media to circular plastic components. By means of ultrasonic technology, the equipment creates a dependable 360º bond suitable for heavy-duty bags utilized in chemical and industrial liquid filtration applications. Filter components produced by Sonobond’s Filter Collar Bonder are used in a variety of industries, including food, paper, pharmaceuticals, and petroleum. Applications include removing undispersed solids, filtering condensate, and removing plastic fines from water.

Theory of Operation

Ultrasonic bonding channels high- frequency vibrations at the interface of the plastic part and the felted filter media. This is accomplished via a welding head. The vibrations create a rapid heat buildup which causes the synthetic materials to melt and industrial fuse. The result is a strong, dependable ultrasonic bond. This is accomplished without adhesives, which require drying time, or thread, which creates perforations that affect product reliability.

Specifications

Electrical: 220 volts, 20 amps, 50/60 Hz with standard 3-prong, line plug Compressed air: Clean dry air at maximum 125 psi, 2 CFM Weight: Approximately 200 lbs. total Size: 18” wide x 36” deep x 42”- 52” high

Ordering Information

Filter Collar Bonder™ Model
Specifications are provided for information only and are believed to be accurate. However, no responsibility is assumed by Sonobond Ultrasonics for their use. Ongoing product development and improvement may cause changes without notice. SONOBOND ULTRASONICS, INC. 1191 McDermott Drive • West Chester, PA 19380 Phone: 800-323-1269 • 610-696-4710 • Fax: 610-692-0674 Internet: www.SonobondUltrasonics.com E-mail: Sales@SonobondUltrasonics.com
© 2007 Sonobond Ultrasonics
