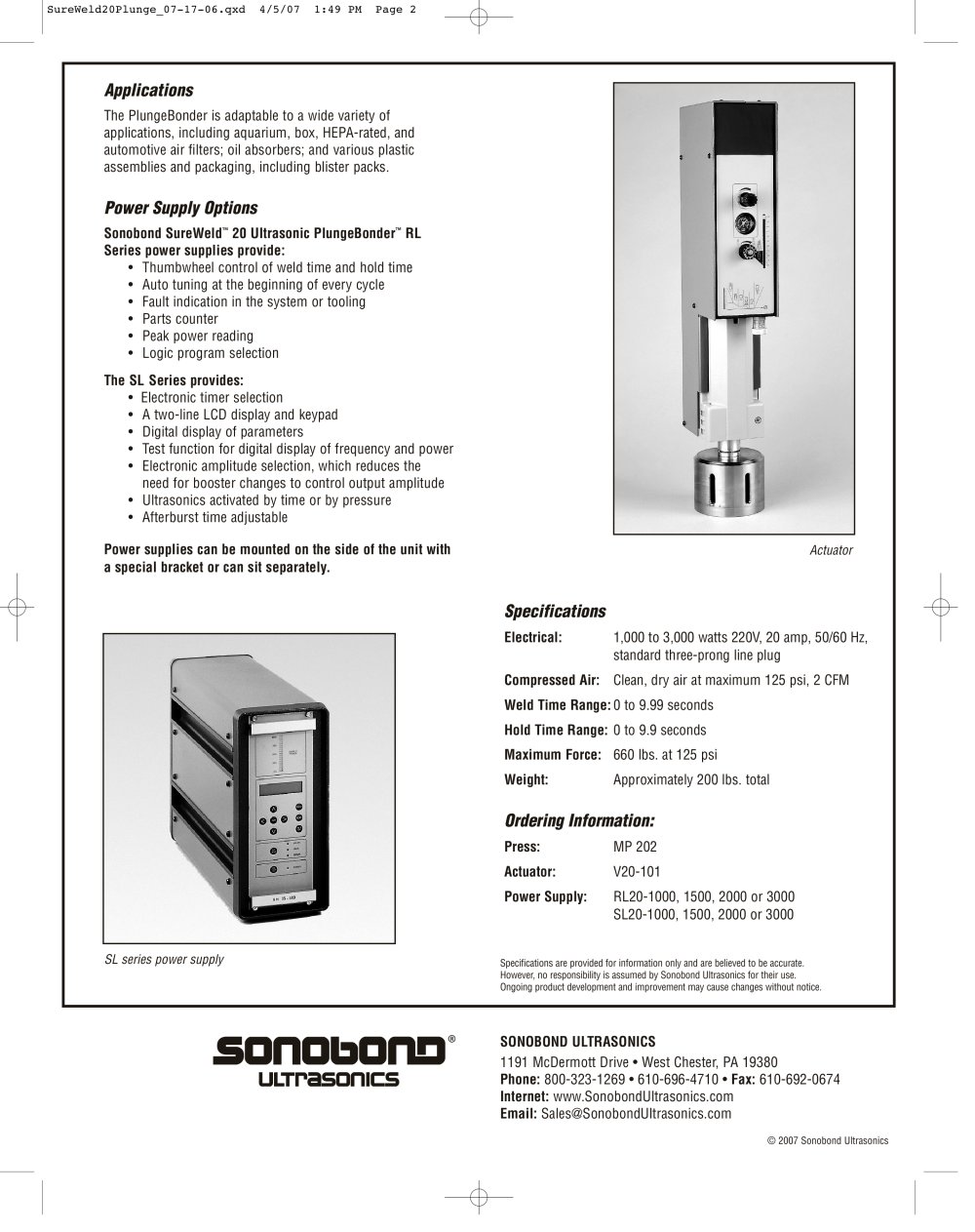

Applications

The PlungeBonder is adaptable to a wide variety of applications, including aquarium, box, HEPA-rated, and automotive industrial air filters; oil absorbers; and various plastic assemblies and packaging, including blister packs.

Power Supply Options

The SLSeries provides: Power supplies manufacturer can be mounted on the side of the unit witha special bracket or can sit separately. Sonobond SureWeld • Electronic timer selection • A two-line Industrial lcd display and keypad • Digital display of parameters • Test function for digital display of frequency and power • Electronic amplitude selection, which reduces the need for industrial booster changes to control output amplitude• Ultrasonics activated by time or by pressure •Afterburst time adjustable
™ 20 Ultrasonic PlungeBonder
™ RLSeries power supplies provide: • Thumbwheel control of weld time and hold time •Auto tuning at the beginning of every cycle • Fault indication in the system or tooling • Parts counter • Peak power reading •Logic program selection
Actuator

Specifications

Electrical: 1,000 to 3,000 watts 220V, 20 amp, 50/60 Hz, standard three-prong line plug Compressed air: Clean, dry air at maximum 125 psi, 2 CFM Weld Time Range: 0 to 9.99 seconds Hold Time Range: 0 to 9.9 seconds Maximum Force: 660 lbs. at 125 psi Weight: Approximately 200 lbs. total

Ordering Information:

Press: MP 202 Actuator: V20-101 Power Supply: RL20-1000, 1500, 2000 or 3000SL20-1000, 1500, 2000 or 3000
SL series power supply Specifications are provided for information only and are believed to be accurate.However, no responsibility is assumed by Sonobond Ultrasonics for their use. Ongoing product development and improvement may cause changes without notice. SONOBOND ULTRASONICS 1191 McDermott Drive • West Chester, PA 19380 Phone: 800-323-1269 • 610-696-4710 • Fax: 610-692-0674 Internet: www.SonobondUltrasonics.com Email: Sales@SonobondUltrasonics.com
© 2007 Sonobond Ultrasonics
