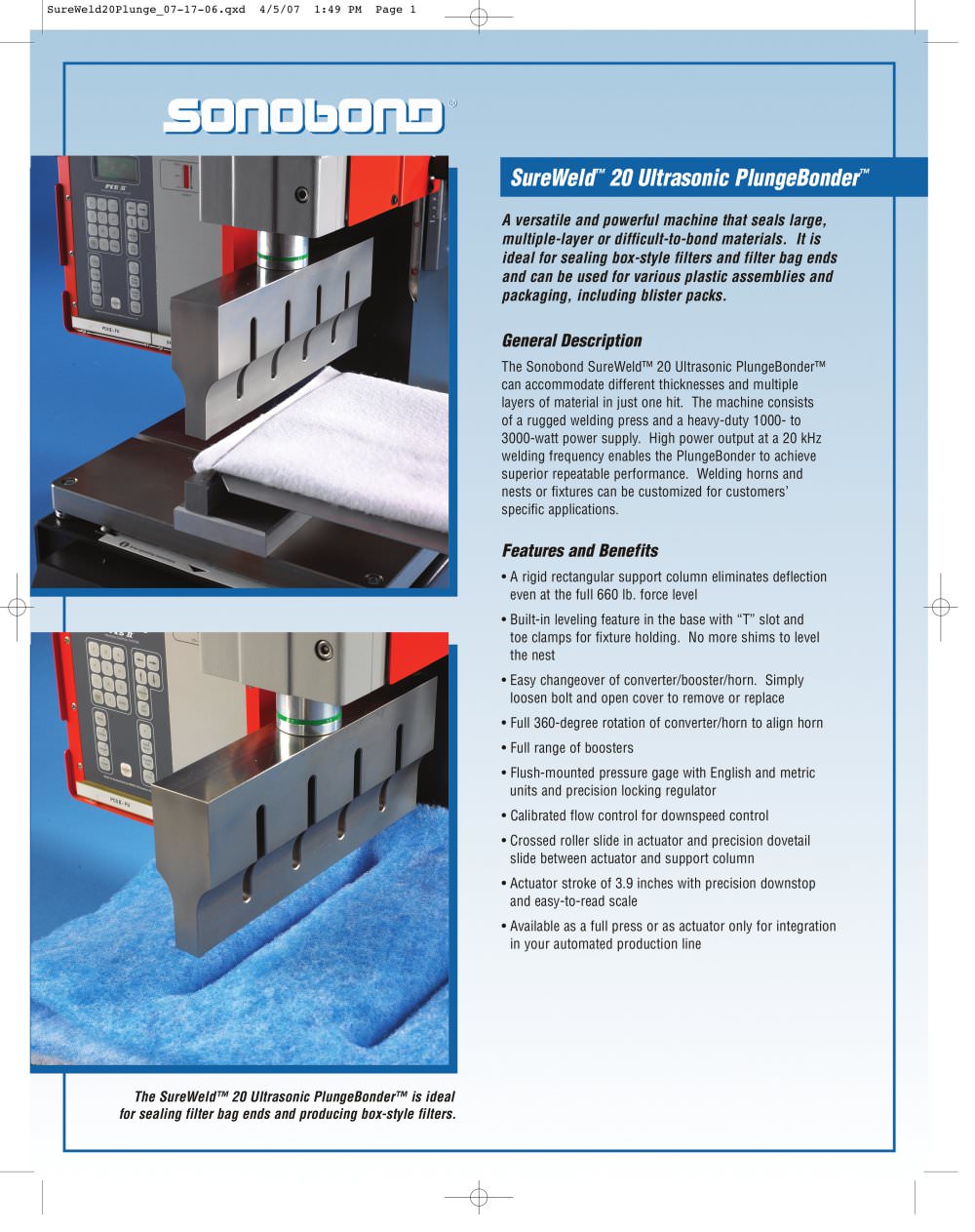

SureWeld

™

20 Ultrasonic PlungeBonder

™

A versatile and powerful machine that seals large,multiple-layer or difficult-to-bond materials. It isideal for sealing box-style filters and filter bag endsand can be used for various plastic assemblies andpackaging, including blister packs.

General Description

The Sonobond SureWeld™ 20 Ultrasonic PlungeBonder™can accommodate different thicknesses and multiple layers of material in just one hit. The machine consists of a rugged welding press and a heavy-duty 1000- to 3000-watt power supply. High power output at a 20 kHz welding frequency enables the PlungeBonder to achieve superior repeatable performance. Welding horns and nests or fixtures can be customized for customers’ specific applications.

Features and Benefits

• A rigid rectangular support column eliminates deflectioneven at the full 660 lb. force level• Built-in leveling feature in the base with “T” slot and toe clamps for fixture holding. No more shims to level the nest• Easy changeover of converter/booster/horn. Simplyloosen bolt and open cover to remove or replace• Full 360-degree rotation of converter/horn to align horn • Full range of boosters • Flush-mounted pressure gage with English and metricunits and precision locking regulator• Calibrated flow control for downspeed control • Crossed roller slide in actuator and precision dovetail industrial slide between actuator and support column• Actuator stroke of 3.9 inches with precision downstop and easy-to-read scale• Available as a full press or as actuator only for integrationin your automated production line The SureWeld™ 20 Ultrasonic PlungeBonder™ is idealfor sealing filter bag ends and producing box-style filters.
