61a Key, SP400, SS 2350
61b Driver, SP405, SS2331-43 62 Diaphragm, Hypalone CSM1
63 Screw, M5x10, Steel, Z.Pl., SS-ISO 1580
64 Washer, dia. 5x16, Steel, Z.Pl.
66 Screw, M5x6, Brass, Nickel Pl.
68 Rivet, 2.5x9, Steel, DIN 660
69 Washer, 8.4x16x1.5, Steel, Z.Pl. 73 Screw, M5x8, Steel, Z.Pl., SS-ISO 1580 74 Screw, M3x10, Steel, Z.Pl., SS-ISO 2009
75 Washer, dia. 5.3x10, Nylon, DIN 125
76 Nut, M4, Steel, Z.Pl., SS-ISO 4032 78 Elastic pin, dia. 2.5x10, Stainless steel

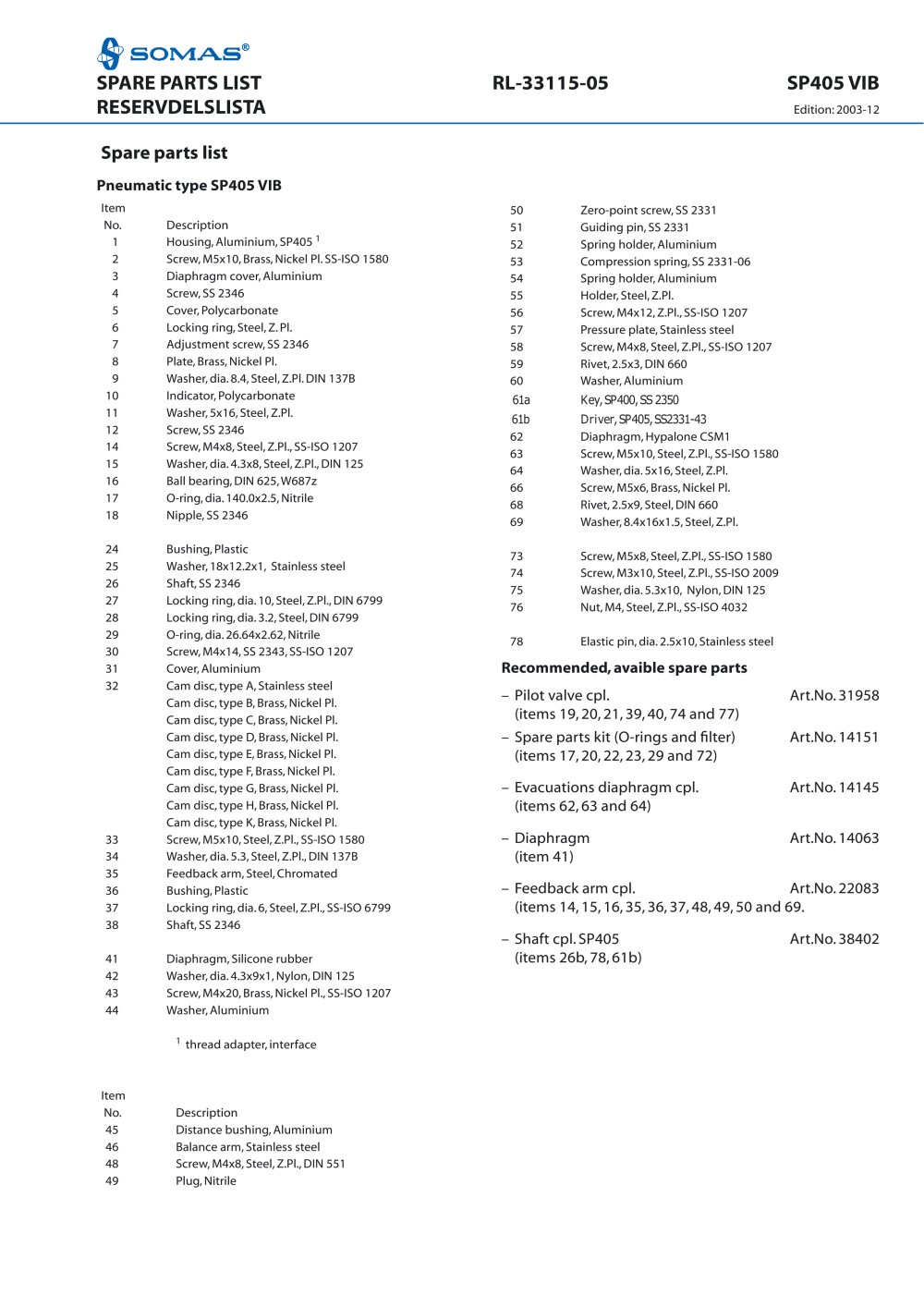

Valve Positioner - 5896 SPARE PARTS LIST RL-33115-05 SP405 VIBRESERVDELSLISTA
Edition: 2003-12
Spare parts list
Pneumatic type SP405 VIB
Item No. Description
1 Housing, Aluminium, SP405
1 2 Screw, M5x10, Brass, Nickel Pl. SS-ISO 1580
3 Diaphragm cover, Aluminium
4 Screw, SS 2346
5 Cover, Polycarbonate
6 Locking ring, Steel, Z. Pl.
7 Adjustment screw, SS 2346
8 Plate, Brass, Nickel Pl.
9 Washer, dia. 8.4, Steel, Z.Pl. DIN 137B
10 Indicator, Polycarbonate
11 Washer, 5x16, Steel, Z.Pl.
12 Screw, SS 2346
14 Screw, M4x8, Steel, Z.Pl., SS-ISO 1207
15 Washer, dia. 4.3x8, Steel, Z.Pl., DIN 125
16 Ball bearing, DIN 625, W687z
17 O-ring, dia. 140.0x2.5, Nitrile
18 Nipple, SS 2346 24 Bushing, Plastic 25 Washer, 18x12.2x1, Stainless steel
26 Shaft, SS 2346
27 Locking ring, dia. 10, Steel, Z.Pl., DIN 6799
28 Locking ring, dia. 3.2, Steel, DIN 6799
29 O-ring, dia. 26.64x2.62, Nitrile
30 Screw, M4x14, SS 2343, SS-ISO 1207
31 Cover, Aluminium
32 Cam disc, type A, Stainless steel
Cam disc, type B, Brass, Nickel Pl.
Cam disc, type C, Brass, Nickel Pl.
Cam disc, type D, Brass, Nickel Pl.
Cam disc, type E, Brass, Nickel Pl.
Cam disc, type F, Brass, Nickel Pl.
Cam disc, type G, Brass, Nickel Pl.
Cam disc, type H, Brass, Nickel Pl.
Cam disc, type K, Brass, Nickel Pl.
33 Screw, M5x10, Steel, Z.Pl., SS-ISO 1580
34 Washer, dia. 5.3, Steel, Z.Pl., DIN 137B
35 Feedback arm, Steel, Chromated
36 Bushing, Plastic
37 Locking ring, dia. 6, Steel, Z.Pl., SS-ISO 6799
38 Shaft, SS 2346 41 Diaphragm, Silicone rubber 42 Washer, dia. 4.3x9x1, Nylon, DIN 125
43 Screw, M4x20, Brass, Nickel Pl., SS-ISO 1207
44 Washer, Aluminium
Recommended, avaible spare parts – Pilot valve cpl. Art.No. 31958 (items 19, 20, 21, 39, 40, 74 and 77)– Spare parts kit (O-rings and lter) Art.No. 14151 (items 17, 20, 22, 23, 29 and 72)– Evacuations diaphragm cpl. Art.No. 14145 (items 62, 63 and 64)– Diaphragm Art.No. 14063 (item 41)– Feedback arm cpl. Art.No. 22083 (items 14, 15, 16, 35, 36, 37, 48, 49, 50 and 69.– Shaft cpl. SP405 Art.No. 38402 (items 26b, 78, 61b)
1 thread adapter, interfaceItem No. Description
45 Distance bushing, Aluminium
46 Balance arm, Stainless steel
48 Screw, M4x8, Steel, Z.Pl., DIN 551
49 Plug, Nitrile
50 Zero-point screw, SS 2331 51 Guiding pin, SS 2331
52 Spring holder, Aluminium
53 Compression spring, SS 2331-06
54 Spring holder, Aluminium
55 Holder, Steel, Z.Pl.
56 Screw, M4x12, Z.Pl., SS-ISO 1207
57 Pressure plate, Stainless steel
58 Screw, M4x8, Steel, Z.Pl., SS-ISO 1207
59 Rivet, 2.5x3, DIN 660
60 Washer, Aluminium
