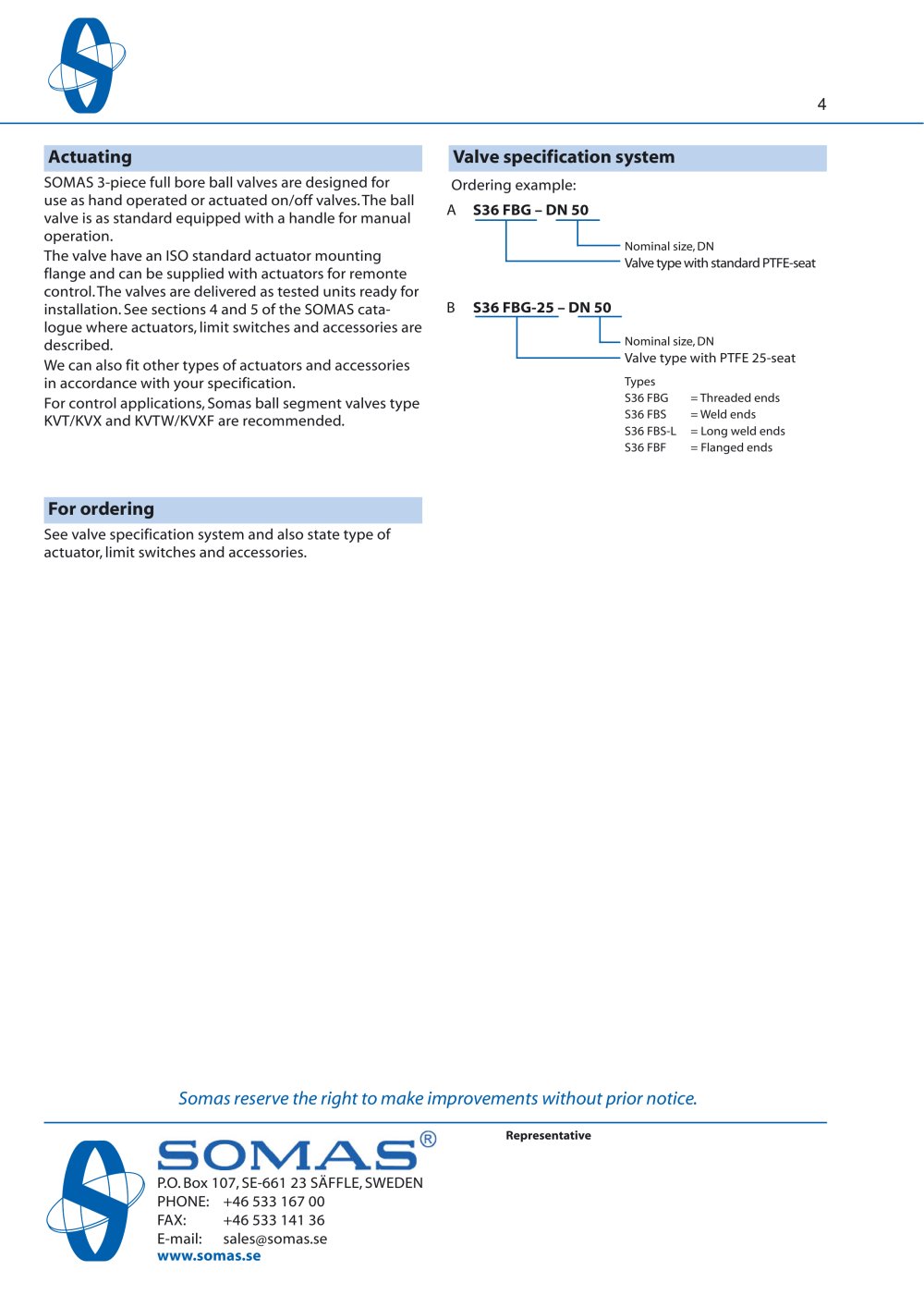

SOMAS 3-piece full bore ball valve - 5896 Actuating Valve specification system
SOMAS 3-piece full bore ball
valves are designed for use as hand operated or actuated on/off
valves. The ball
valve is as standard equipped with a handle for manual operation.The
valve have an ISO standard actuator mounting flange and can be supplied with actuators for remonte control. The
valves are delivered as tested units ready for installation. See sections 4 and 5 of the SOMAS cata-
logue where actuators, limit switches and accessories are described.We can also fit other types of actuators and accessories in accordance with your specification.For control applications, Somas ball segment
valves type KVT/KVX and KVTW/KVXF are recommended. Ordering example: A S36 FBG – DN 50
Nominal size, DN Valve type with standard PTFE-seat B S36 FBG-25 – DN 50
Nominal size, DN Valve type with PTFE 25-seat Types S36 FBG = Threaded ends
S36 FBS = Weld ends
S36 FBS-L = Long weld ends
S36 FBF = Flanged ends
For ordering
See
valve specification system and also state type of actuator, limit switches and accessories.
Somas reserve the right to make improvements without prior notice.
