8

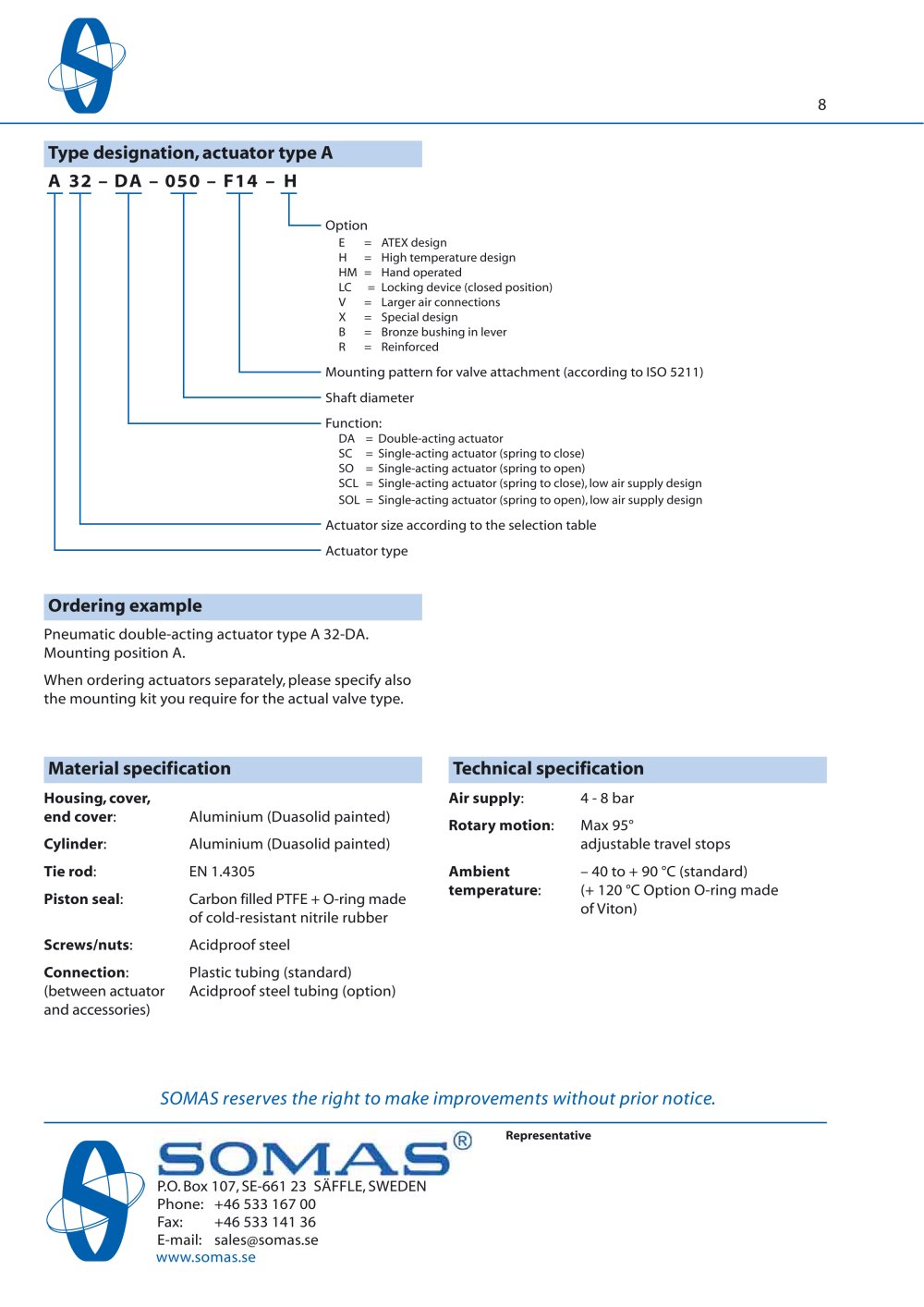

Pneumatic actuator - 5896 Type designation, actuator type A A 32 – DA – 050 – F14 – H

Option E = ATEX design H = High temperature design HM = Hand operated LC = Locking device (closed position) V = Larger air connections X = Special design B = Bronze bushing in lever R = Reinforced Mounting pattern for valve attachment (according to ISO 5211)Shaft diameterFunction: DA = Double-acting actuator SC = Single-acting actuator (spring to close) SO = Single-acting actuator (spring to open) SCL = Single-acting actuator (spring to close), low air supply design SOL = Single-acting actuator (spring to open), low air supply design Actuator size according to the selection tableActuator type

Ordering example

Pneumatic double-acting actuator type A 32-DA. Mounting position A. When ordering actuators separately, please specify also the mounting kit you require for the actual valve type.

Material specification Technical specification

Housing, cover, end cover Air supply : 4 - 8 bar : Aluminium (Duasolid painted) Rotary motion : Max 95° adjustable travel stops Cylinder : Aluminium (Duasolid painted) Tie rod : EN 1.4305 Ambient – 40 to + 90 °C (standard) Piston seal : Carbon filled PTFE + O-ring made of cold-resistant nitrile rubber temperature : (+ 120 °C Option O-ring made of Viton) Screws/nuts : Acidproof steel Connection : Plastic tubing (standard)(between actuator Acidproof steel tubing (option)and accessories)

SOMAS reserves the right to make improvements without prior notice.
