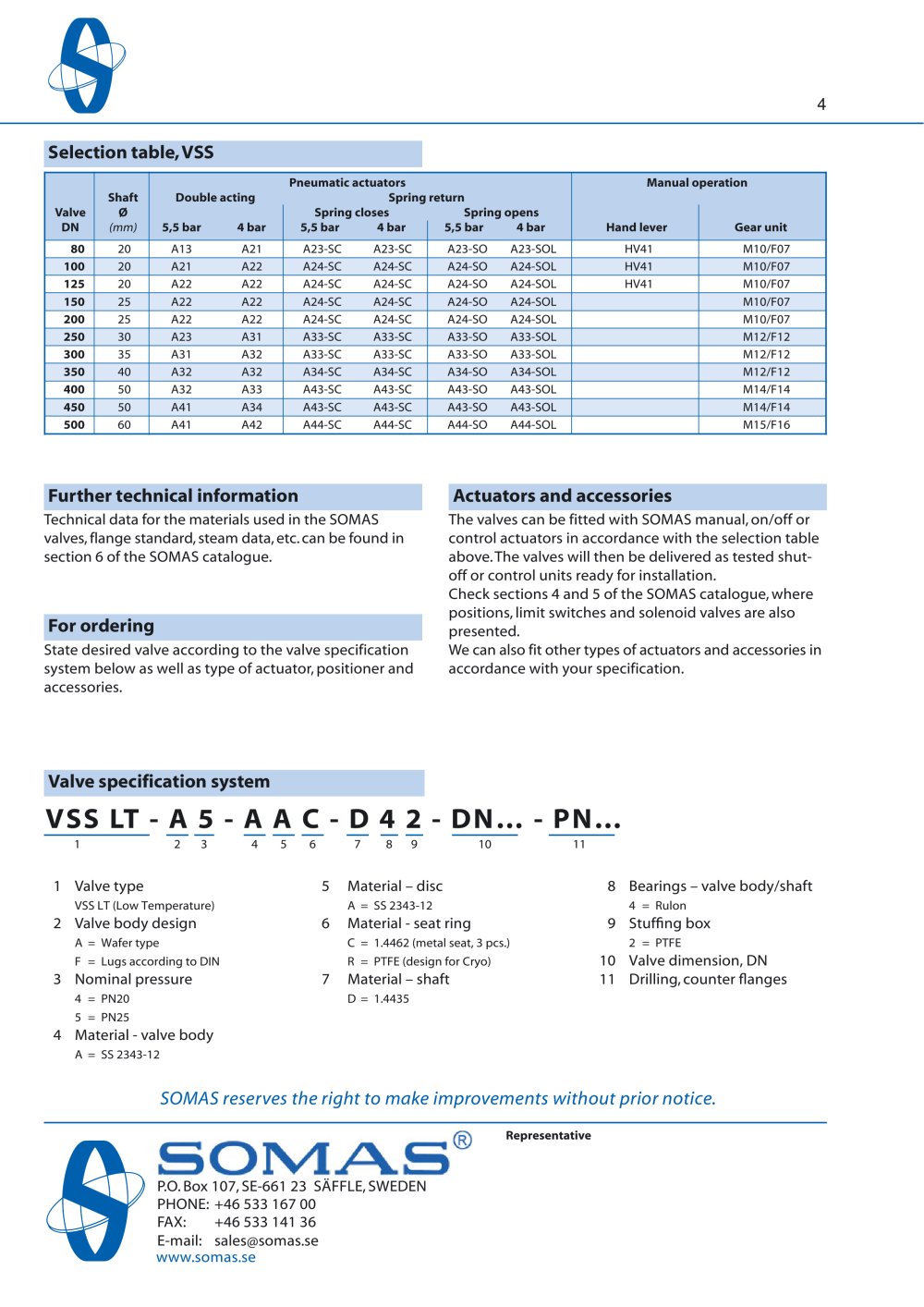

4

(mm) 5,5 bar 4 bar 5,5 bar 4 bar 5,5 bar 4 bar Hand lever Gear unit

Selection table, VSS

Pneumatic actuators Manual operation Shaft Double acting Spring return Valve Ø Spring closes Spring opens DN 80 20 A13 A21 A23-SC A23-SC A23-SO A23-SOL HV41 M10/F07 100 20 A21 A22 A24-SC A24-SC A24-SO A24-SOL HV41 M10/F07 125 20 A22 A22 A24-SC A24-SC A24-SO A24-SOL HV41 M10/F07 150 25 A22 A22 A24-SC A24-SC A24-SO A24-SOL M10/F07 200 25 A22 A22 A24-SC A24-SC A24-SO A24-SOL M10/F07 250 30 A23 A31 A33-SC A33-SC A33-SO A33-SOL M12/F12 300 35 A31 A32 A33-SC A33-SC A33-SO A33-SOL M12/F12 350 40 A32 A32 A34-SC A34-SC A34-SO A34-SOL M12/F12 400 50 A32 A33 A43-SC A43-SC A43-SO A43-SOL M14/F14 450 50 A41 A34 A43-SC A43-SC A43-SO A43-SOL M14/F14 500 60 A41 A42 A44-SC A44-SC A44-SO A44-SOL M15/F16

Further technical information Actuators and accessories

Technical data for the materials used in the SOMAS valves, flange standard, steam data, etc. can be found in section 6 of the SOMAS catalogue. The valves can be fitted with SOMAS manual, on/off or control actuators in accordance with the selection table above. The valves will then be delivered as tested shut- off or control units ready for installation. Check sections 4 and 5 of the SOMAS catalogue, where positions, limit switches and solenoid valves are also presented. We can also fit other types of actuators and accessories in accordance with your specification.

For ordering

State desired valve according to the valve specification system below as well as type of actuator, positioner and accessories.

Valve specification system

Butterfly valve Type VSS LT (Low Temperature) - 5896 VSS LT - A 5 - A A C - D 4 2 - DN… - PN…

1234567891011

1 Valve type 5 Material – disc 8 Bearings – valve body/shaft

VSS LT (Low Temperature) A = SS 2343-12 4 = Rulon

2 Valve body design 6 Material - seat ring 9 Stuf ng box

A = Wafer type C = 1.4462 (metal seat, 3 pcs.) 2 = PTFE F = Lugs according to DIN R = PTFE (design for Cryo)

10 Valve dimension, DN 3 Nominal pressure 7 Material – shaft 11 Drilling, counter anges

4 = PN20 D = 1.4435 5 = PN25

4 Material - valve body

A = SS 2343-12

SOMAS reserves the right to make improvements without prior notice.
