5

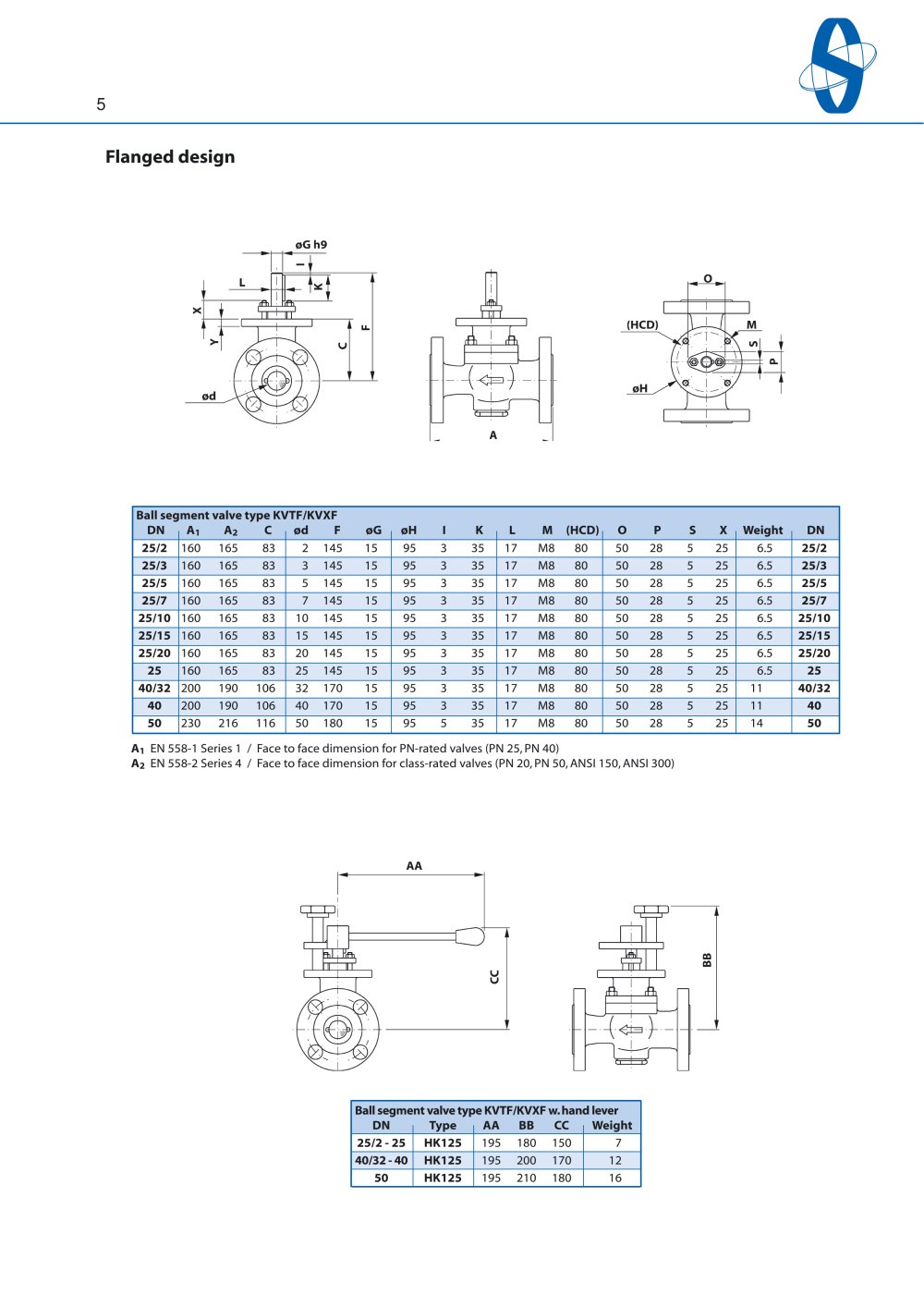

Ball segment valve - 5896 Flanged design

A Ball segment valve type KVTF/KVXF DN A
1 A
2 C ød F øG øH I K L M (HCD) O P S X Weight DN Ball segment valve type KVTF/KVXF w. hand lever DN Type AA BB CC Weight 25/2 160 165 83 2 145 15 95 3 35 17 M8 80 50 28 5 25 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 11 11 14 25/2 25/3 160 165 83 3 145 15 95 3 35 17 M8 80 50 28 5 25 25/3 25/5 160 165 83 5 145 15 95 3 35 17 M8 80 50 28 5 25 25/5 25/7 160 165 83 7 145 15 95 3 35 17 M8 80 50 28 5 25 25/7 25/10 160 165 83 10 145 15 95 3 35 17 M8 80 50 28 5 25 25/10 25/15 160 165 83 15 145 15 95 3 35 17 M8 80 50 28 5 25 25/15 25/20 160 165 83 20 145 15 95 3 35 17 M8 80 50 28 5 25 25/20 25 160 165 83 25 145 15 95 3 35 17 M8 80 50 28 5 25 25 40/32 200 190 106 32 170 15 95 3 35 17 M8 80 50 28 5 25 40/32 40 200 190 106 40 170 15 95 3 35 17 M8 80 50 28 5 25 40 50 230 216 116 50 180 15 95 5 35 17 M8 80 50 28 5 25 50
1 EN 558-1 Series 1 / Face to face dimension for PN-rated valves (PN 25, PN 40) A
2 EN 558-2 Series 4 / Face to face dimension for class-rated valves (PN 20, PN 50, ANSI 150, ANSI 300) 25/2 - 25 HK125 195 180 150 7 40/32 - 40 HK125 195 200 170 12 50 HK125 195 210 180 16
