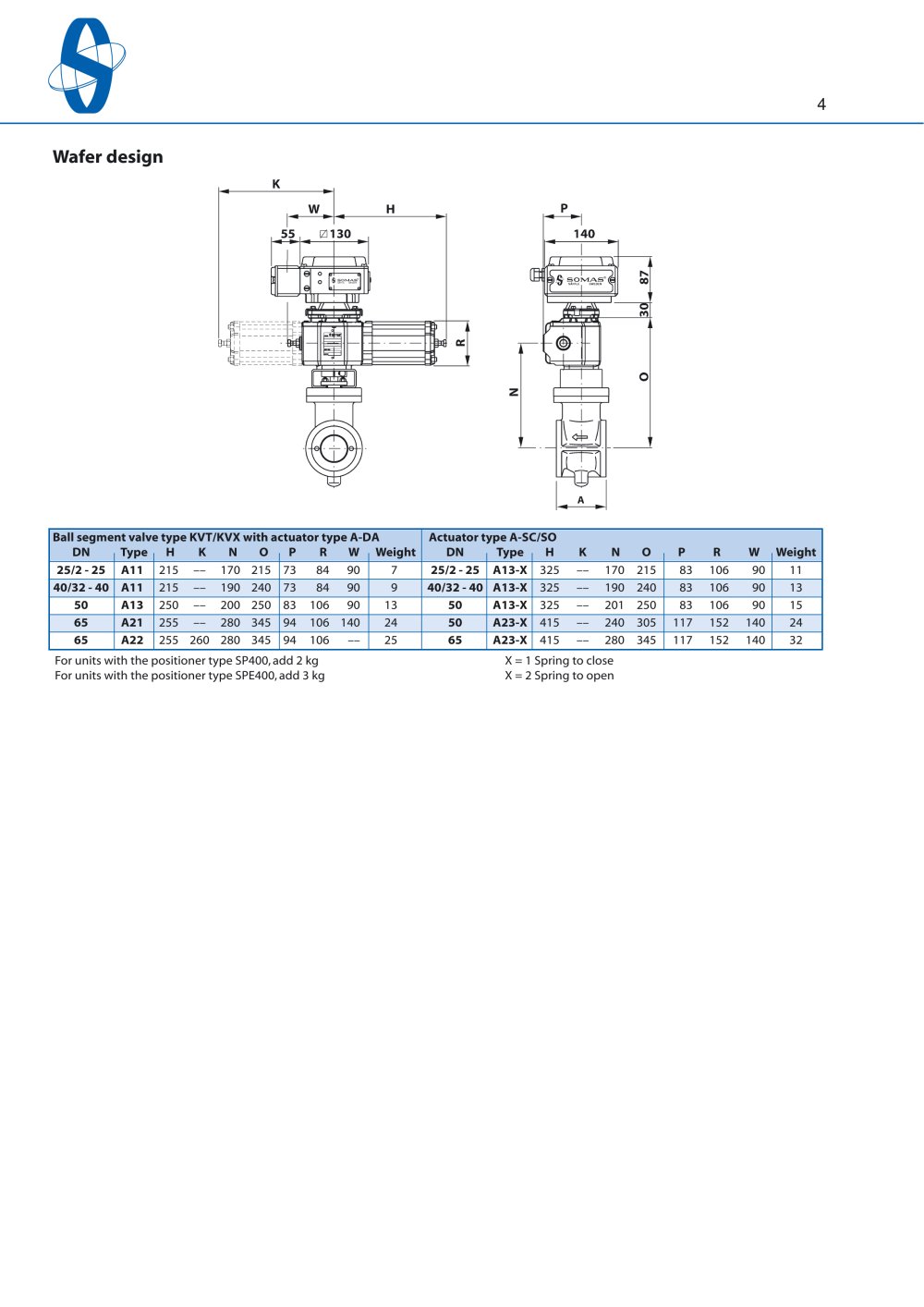

Ball segment valve - 5896 Wafer design

Ball segment valve type KVT/KVX with actuator type A-DA Actuator type A-SC/SO DN Type H K N O P R W Weight DN Type H K N O P R W Weight 25/2 - 25 A11 215 –– 170 215 73 84 90 7 25/2 - 25 A13-X 325 –– 170 215 83 106 90 11 40/32 - 40 A11 215 –– 190 240 73 84 90 9 40/32 - 40 A13-X 325 –– 190 240 83 106 90 13 50 A13 250 –– 200 250 83 106 90 13 50 A13-X 325 –– 201 250 83 106 90 15 65 A21 255 –– 280 345 94 106 140 24 50 A23-X 415 –– 240 305 117 152 140 24 65 A22 255 260 280 345 94 106 –– 25 65 A23-X 415 –– 280 345 117 152 140 32 For units with the positioner type SP400, add 2 kg X = 1 Spring to closeFor units with the positioner type SPE400, add 3 kg X = 2 Spring to open
