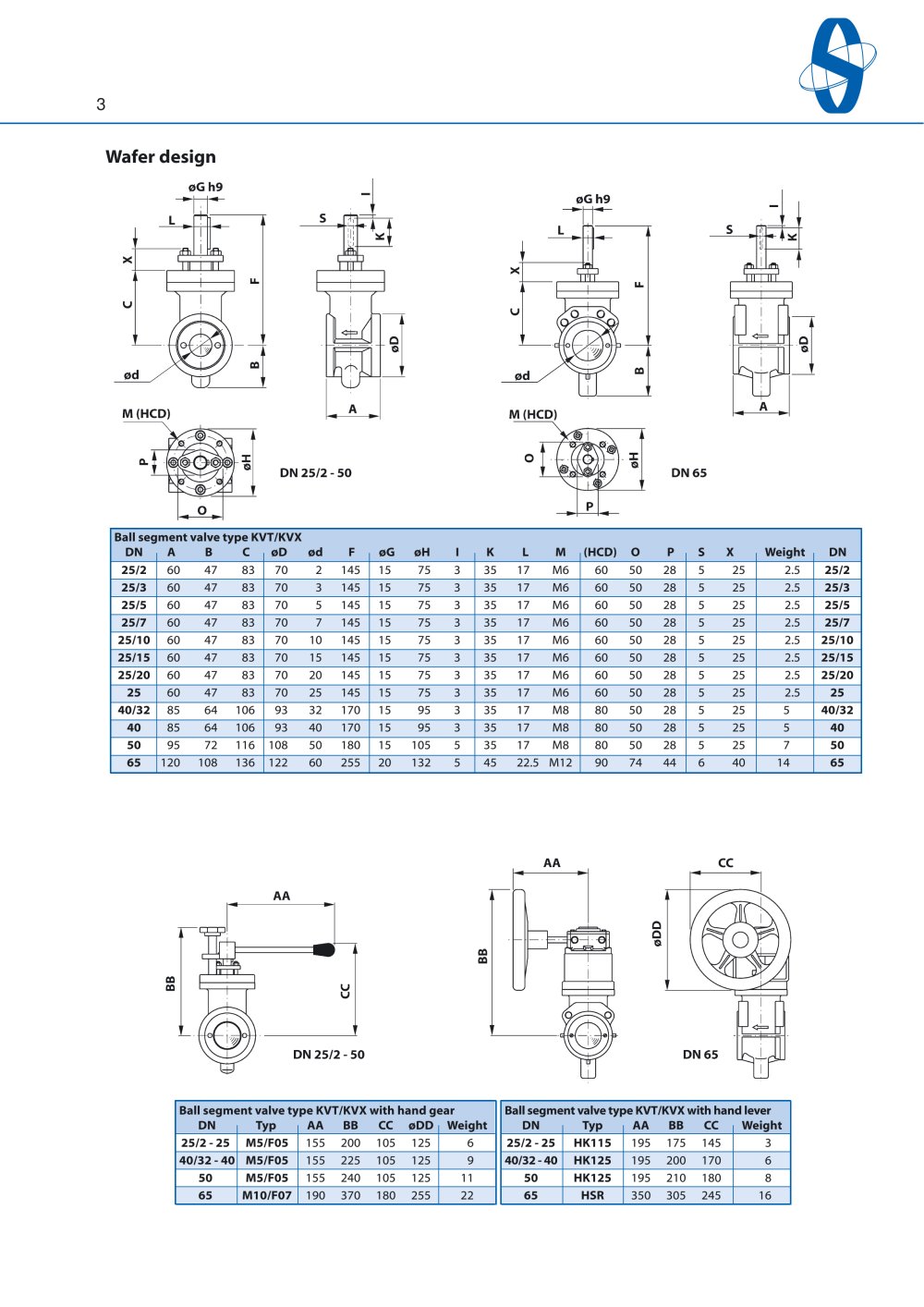

Ball segment valve - 5896 Wafer design

Ball segment valve type KVT/KVX DN A B C øD ød F øG øH I K L M (HCD) O P S X Weight DN Ball segment valve type KVT/KVX with hand gear DN Typ AA BB CC øDD WeightBall segment valve type KVT/KVX with hand lever DN Typ AA BB CC Weight 25/2 60 47 83 70 2 145 15 75 3 35 17 M6 60 50 28 5 25 2.5 25/2 25/3 60 47 83 70 3 145 15 75 3 35 17 M6 60 50 28 5 25 2.5 25/3 25/5 60 47 83 70 5 145 15 75 3 35 17 M6 60 50 28 5 25 2.5 25/5 25/7 60 47 83 70 7 145 15 75 3 35 17 M6 60 50 28 5 25 2.5 25/7 25/10 60 47 83 70 10 145 15 75 3 35 17 M6 60 50 28 5 25 2.5 25/10 25/15 60 47 83 70 15 145 15 75 3 35 17 M6 60 50 28 5 25 2.5 25/15 25/20 60 47 83 70 20 145 15 75 3 35 17 M6 60 50 28 5 25 2.5 25/20 25 60 47 83 70 25 145 15 75 3 35 17 M6 60 50 28 5 25 2.5 25 40/32 85 64 106 93 32 170 15 95 3 35 17 M8 80 50 28 5 25 5 40/32 40 85 64 106 93 40 170 15 95 3 35 17 M8 80 50 28 5 25 5 40 50 95 72 116 108 50 180 15 105 5 35 17 M8 80 50 28 5 25 7 50 65 120 108 136 122 60 255 20 132 5 45 22.5 M12 90 74 44 6 40 14 65 25/2 - 25 M5/F05 155 200 105 125 6 25/2 - 25 HK115 195 175 145 3 40/32 - 40 M5/F05 155 225 105 125 9 40/32 - 40 HK125 195 200 170 6 50 M5/F05 155 240 105 125 11 50 HK125 195 210 180 8 65 M10/F07 190 370 180 255 22 65 HSR 350 305 245 16
