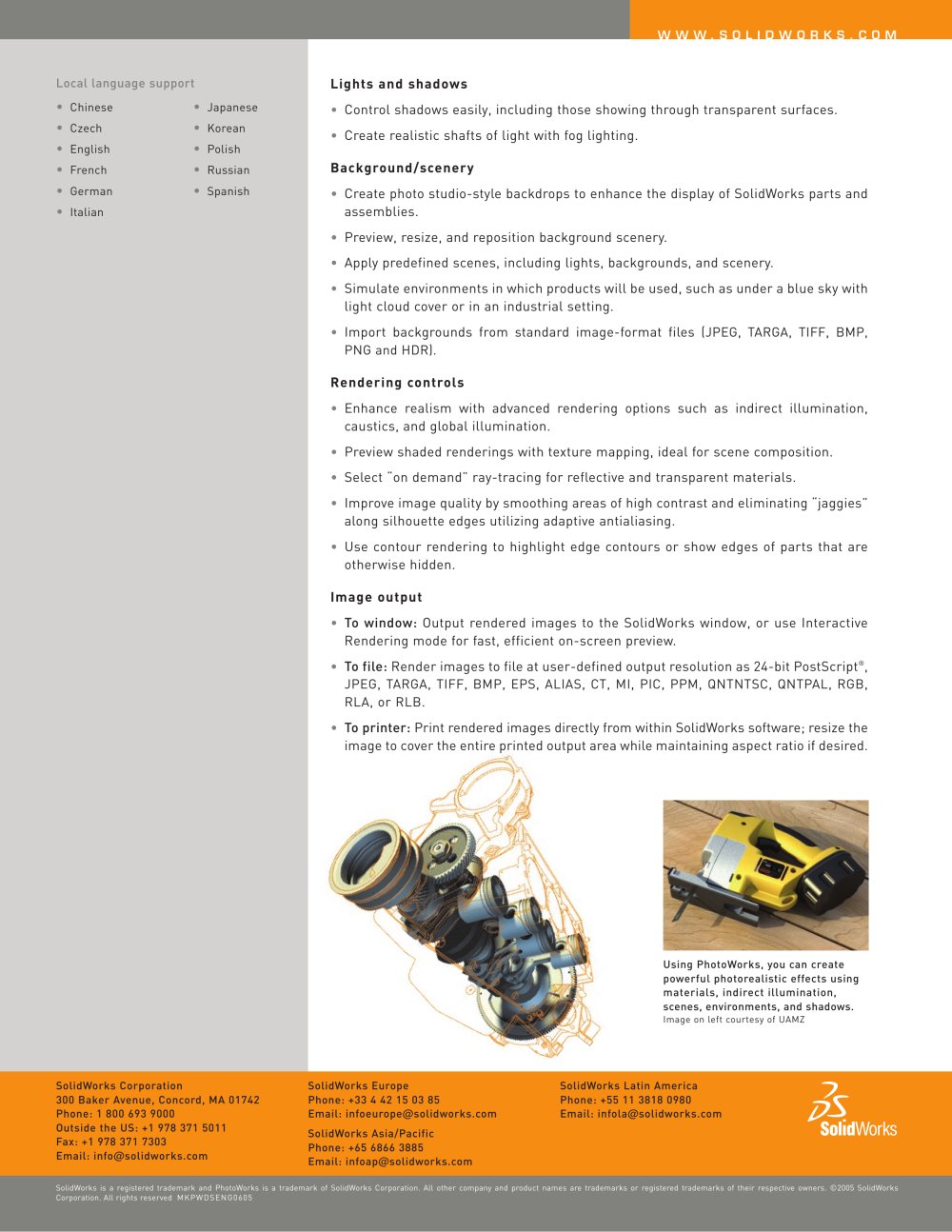

WWW.SOLIDWORKS.COM Local language support Lights and shadows •
Chinese •
Japanese •Control shadows easily, including those showing through transparent surfaces.•Create realistic shafts of light with fog lighting. •
Czech •
Korean •
English •
Polish •
French •
Russian Background/scenery •
German •
Spanish •Create photo studio-style backdrops to enhance the display of SolidWorks parts andassemblies.•Preview, resize, and reposition background scenery.•Apply predefined scenes, including lights, backgrounds, and scenery.•Simulate environments in which products will be used, such as under a blue sky withlight cloud cover or in an industrial setting.•Import backgrounds from standard image-format files ( •
Italian JPEG ,
TARGA ,
TIFF ,
BMP,PNG and HDR). Rendering controls •Enhance realism with advanced rendering options such as indirect illumination,caustics, and global illumination.•Preview shaded renderings with texture mapping, ideal for scene composition.•Select “on demand” ray-tracing for reflective and transparent materials.•Improve image quality by smoothing areas of high contrast and eliminating “jaggies”along silhouette edges utilizing adaptive antialiasing.•Use contour rendering to highlight edge contours or show edges of parts that areotherwise hidden. Image output • To window: Output rendered images to the SolidWorks window, or use InteractiveRendering mode for fast, efficient on-screen preview.• To file: Render images to file at user-defined output resolution as 24-bit PostScript
® ,
JPEG ,
TARGA ,
TIFF ,
BMP ,
EPS ,
ALIAS ,
CT ,
MI ,
PIC ,
PPM ,
QNTNTSC ,
QNTPAL ,
RGB ,
RLA , or
RLB . • To printer: Print rendered images directly from within SolidWorks software; resize theimage to cover the entire printed output area while maintaining aspect ratio if desired.
Using PhotoWorks, you can create powerful photorealistic effects using materials, indirect illumination, scenes, environments, and shadows. @ solidworks.com Image on left courtesy of UAMZ @ solidworks.comSolidWorks Asia/PacificPhone: +65 6866 3885Email: infoap @ solidworks.com SolidWorks Corporation300 Baker Avenue, Concord, MA 01742 Phone: 1 800 693 9000 Outside the US: +1 978 371 5011 Fax: +1 978 371 7303Email: info SolidWorks Europe Phone: +33 4 42 15 03 85 Email: infoeurope @ solidworks.comSolidWorks Latin AmericaPhone: +55 11 3818 0980Email: infola SolidWorks is a registered trademark and PhotoWorks is a trademark of SolidWorks Corporation. All other company and product names are trademarks or registered trademarks of their respective owners. ©2005 SolidWorksCorporation.All rights reserved MKPWDSENG0605
