SmartScan

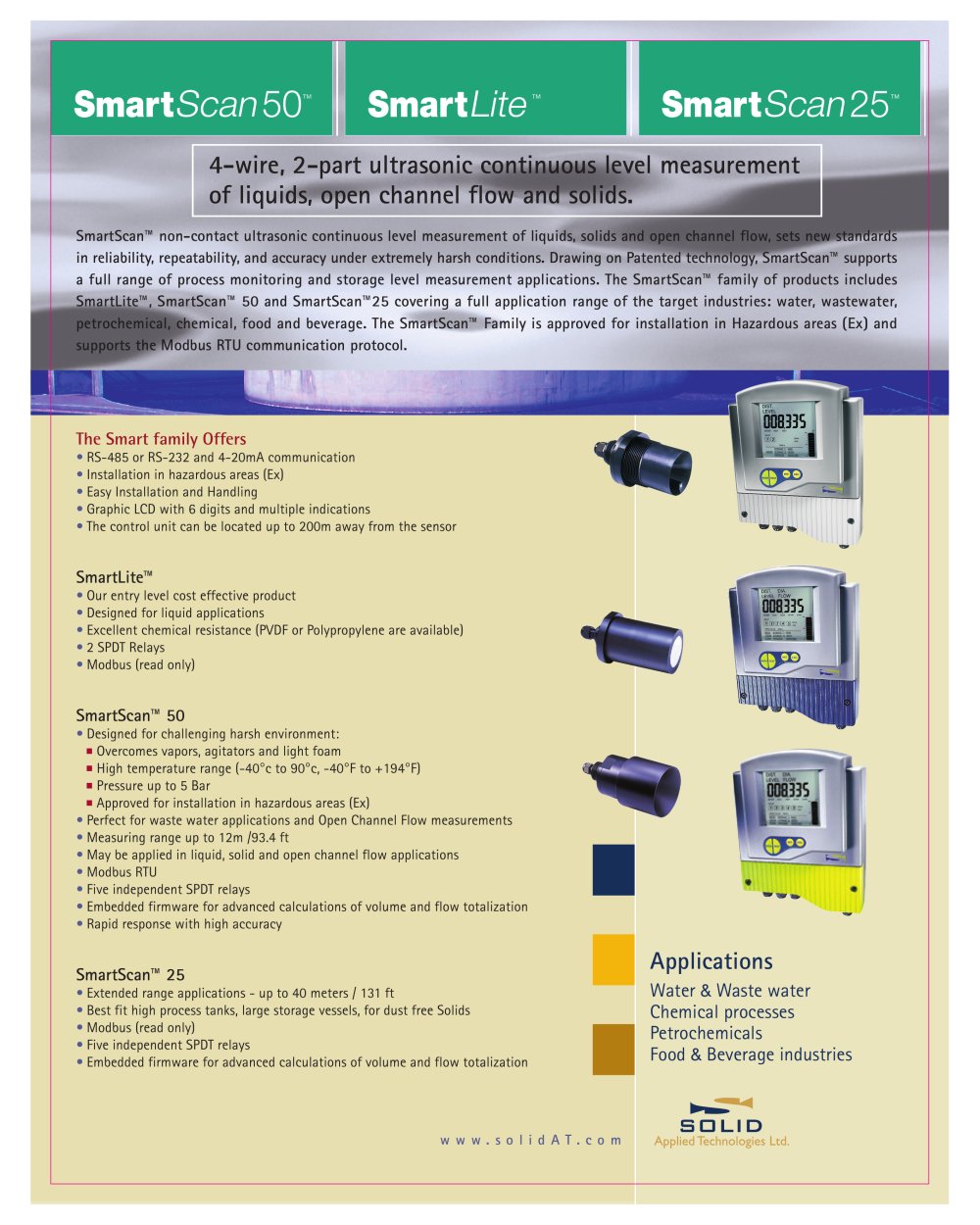

  1. P. 1

  2. P. 2

Catalogue excerpts

RS-485 or RS-232 and 4-20mA communication Օ Installation in hazardous areas (Ex) Easy Installation and Handling Օ Graphic LCD with 6 digits and multiple indications The control unit can be located up to 200m away from the sensor > Our entry level cost effective product Օ Designed for liquid applications Excellent chemical resistance (PVDF or Polypropylene are available) Օ 2 SPDT Relays Modbus (read only) > Designed for challenging harsh environment: Overcomes vapors, agitators and light foam High temperature range (-40 հ c to 90 c, -40 а F to +194 F) Pressure up to 5 Bar Approved for installation in hazardous areas (Ex) Е Perfect for waste water applications and Open Channel Flow measurements Measuring range up to 12m /93.4 ft Օ May be applied in liquid, solid and open channel flow applications Modbus RTU Օ Five independent SPDT relays Embedded firmware for advanced calculations of volume and flow totalization Օ Rapid response with high accuracy > ٕ Extended range applications - up to 40 meters / 131 ft > Best fit high process tanks, large storage vessels, for dust free Solids Օ Modbus (read only) Five independent SPDT relays Օ Embedded firmware for advanced calculations of volume and flow totalization >

 Open the catalogue to page 1

TypeMax range for liquidsMax range for solidsMin rangeMeasuring accuracyTransmission frequency Power Supply Load Output signalCommunicationProtocolMain unitMaterialSensorAcoustic windowMounting threadMain Unit Operating TemperatureSensor operating TemperatureMain unit Protection Sensor ProtectionDisplayMaximum range of control unit(display) from sensorCable connectionMounting RelaysMain unit WeightSensor WeightEnclosure dimensionsCertifications Ultrasonic 4-wireUltrasonic 4-wireUltrasonic 4-wire12 meter / 39.4ft 10 meter / 32ft40 meter / 131ft8.5m/28ft-30m/98ft0.40 meter / 1.3ft 0.60 meter / 2ft...

 Open the catalogue to page 2
