SmartScan User’s Manual 40

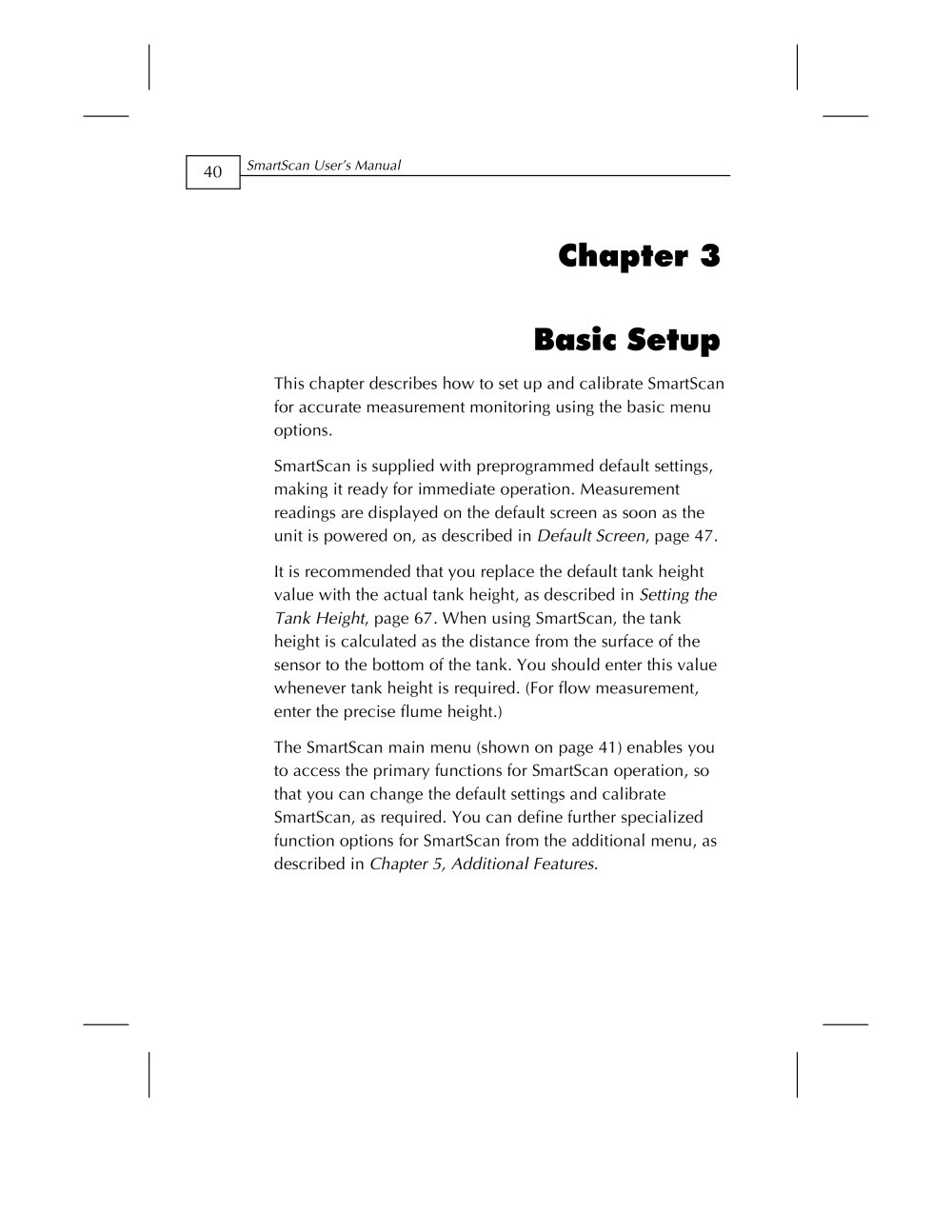

SmartScan User Manual - 15188 Chapter 3 Basic Setup

This chapter describes how to set up and calibrate SmartScan for accurate measurement monitoring using the basic menu options. SmartScan is supplied with preprogrammed default settings, making it ready for immediate operation. Measurement readings are displayed on the default screen as soon as the unit is powered on, as described in Default Screen , page 47. It is recommended that you replace the default tank height value with the actual tank height, as described in Chapter 5, Additional Features . Setting the Tank Height , page 67. When using SmartScan, the tank height is calculated as the distance from the surface of the sensor to the bottom of the tank. You should enter this value whenever tank height is required. (For flow measurement, enter the precise flume height.) The SmartScan main menu (shown on page 41) enables you to access the primary functions for SmartScan operation, so that you can change the default settings and calibrate SmartScan, as required. You can define further specialized function options for SmartScan from the additional menu, as described in
