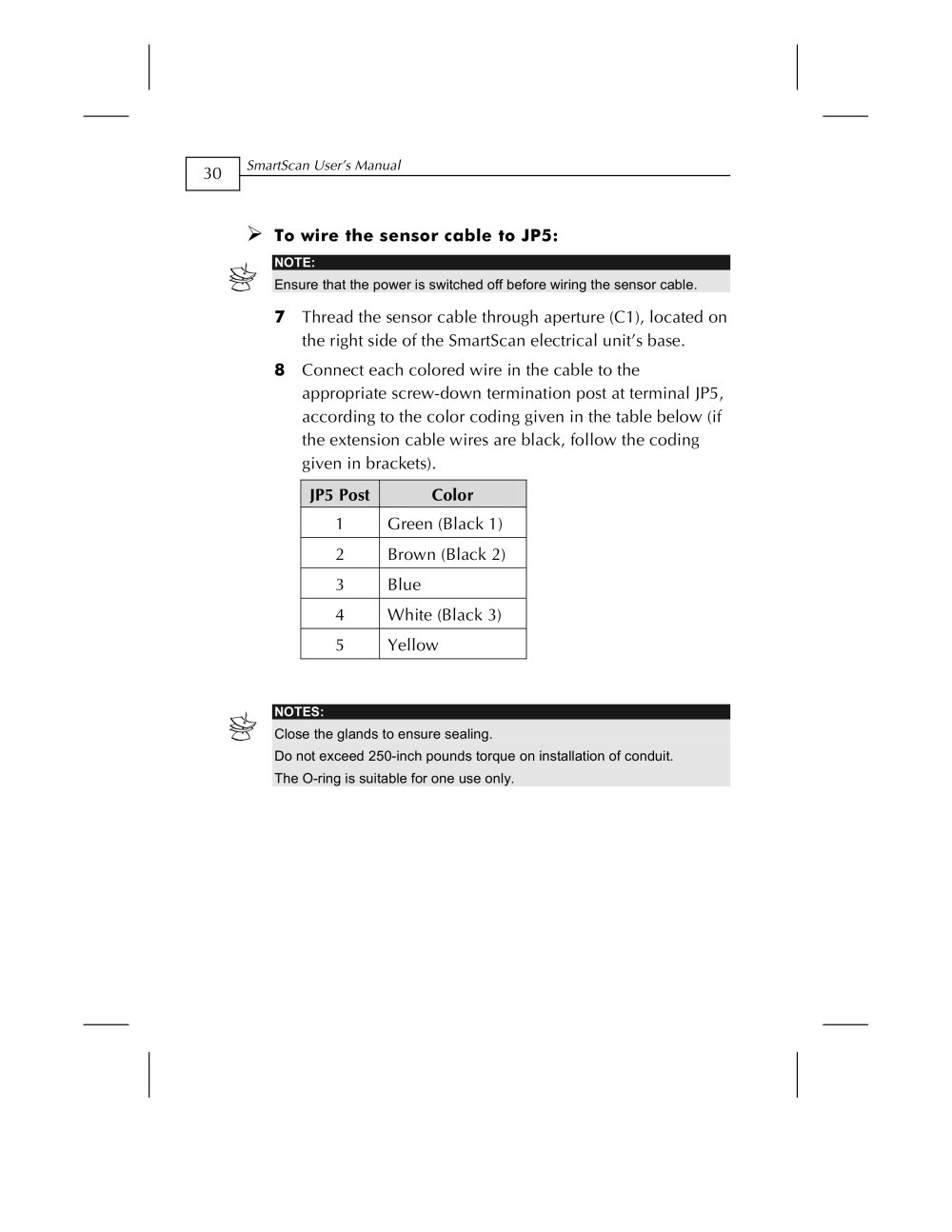

SmartScan User’s Manual 30 To wire the sensor cable to JP5:
NOTE: Ensure that the power is switched off before wiring the sensor cable. 7 Thread the sensor cable through aperture (C1), located on the right side of the SmartScan electrical unit’s base. 8 Connect each colored wire in the cable to the appropriate screw-down termination post at terminal JP5, according to the color coding given in the table below (if the extension cable wires are black, follow the coding given in brackets). JP5 Post Color 1 Green (Black 1) 2 Brown (Black 2) 3 Blue 4 White (Black 3) 5 Yellow
NOTES: Close the glands to ensure sealing. Do not exceed 250-inch pounds torque on installation of conduit. The O-ring is suitable for one use only.
NOTE: Ensure that the power is switched off before wiring the sensor cable. 7 Thread the sensor cable through aperture (C1), located on the right side of the SmartScan electrical unit’s base. 8 Connect each colored wire in the cable to the appropriate screw-down termination post at terminal JP5, according to the color coding given in the table below (if the extension cable wires are black, follow the coding given in brackets). JP5 Post Color 1 Green (Black 1) 2 Brown (Black 2) 3 Blue 4 White (Black 3) 5 Yellow
NOTES: Close the glands to ensure sealing. Do not exceed 250-inch pounds torque on installation of conduit. The O-ring is suitable for one use only.
