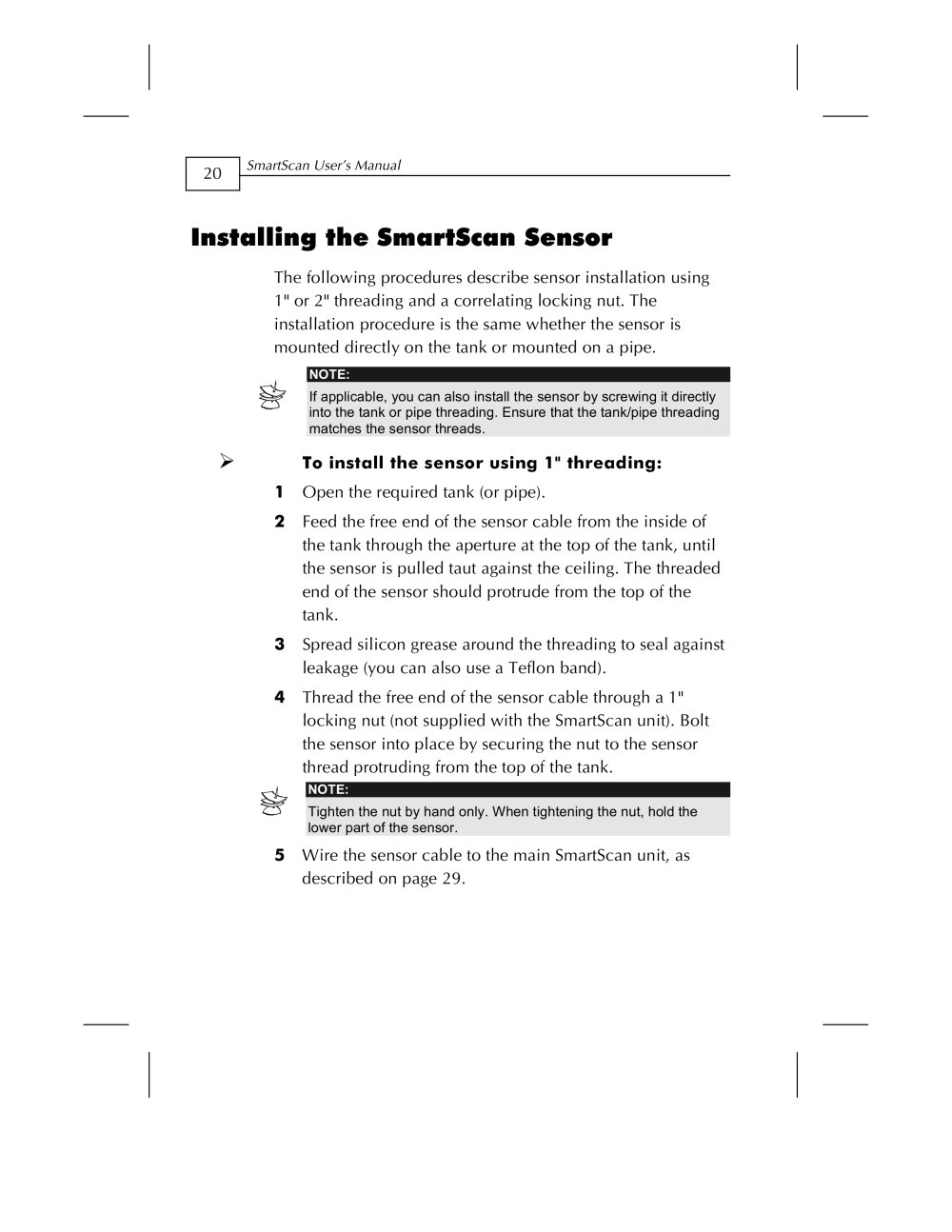

SmartScan User’s Manual 20
NOTE: If applicable, you can also install the sensor by screwing it directly into the tank or pipe threading. Ensure that the tank/pipe threading matches the sensor threads. To install the sensor using 1" threading: 1 Open the required tank (or pipe). 2 Feed the free end of the sensor cable from the inside of the tank through the aperture at the top of the tank, until the sensor is pulled taut against the ceiling. The threaded end of the sensor should protrude from the top of the tank. 3 Spread silicon grease around the threading to seal against leakage (you can also use a Teflon band). 4 Thread the free end of the sensor cable through a 1" locking nut (not supplied with the SmartScan unit). Bolt the sensor into place by securing the nut to the sensor thread protruding from the top of the tank.
NOTE: Tighten the nut by hand only. When tightening the nut, hold the lower part of the sensor. 5 Wire the sensor cable to the main SmartScan unit, as described on page 29.
SmartScan User Manual - 15188 Installing the SmartScan Sensor
The following procedures describe sensor installation using 1" or 2" threading and a correlating locking nut. The installation procedure is the same whether the sensor is mounted directly on the tank or mounted on a pipe.NOTE: If applicable, you can also install the sensor by screwing it directly into the tank or pipe threading. Ensure that the tank/pipe threading matches the sensor threads. To install the sensor using 1" threading: 1 Open the required tank (or pipe). 2 Feed the free end of the sensor cable from the inside of the tank through the aperture at the top of the tank, until the sensor is pulled taut against the ceiling. The threaded end of the sensor should protrude from the top of the tank. 3 Spread silicon grease around the threading to seal against leakage (you can also use a Teflon band). 4 Thread the free end of the sensor cable through a 1" locking nut (not supplied with the SmartScan unit). Bolt the sensor into place by securing the nut to the sensor thread protruding from the top of the tank.
NOTE: Tighten the nut by hand only. When tightening the nut, hold the lower part of the sensor. 5 Wire the sensor cable to the main SmartScan unit, as described on page 29.
