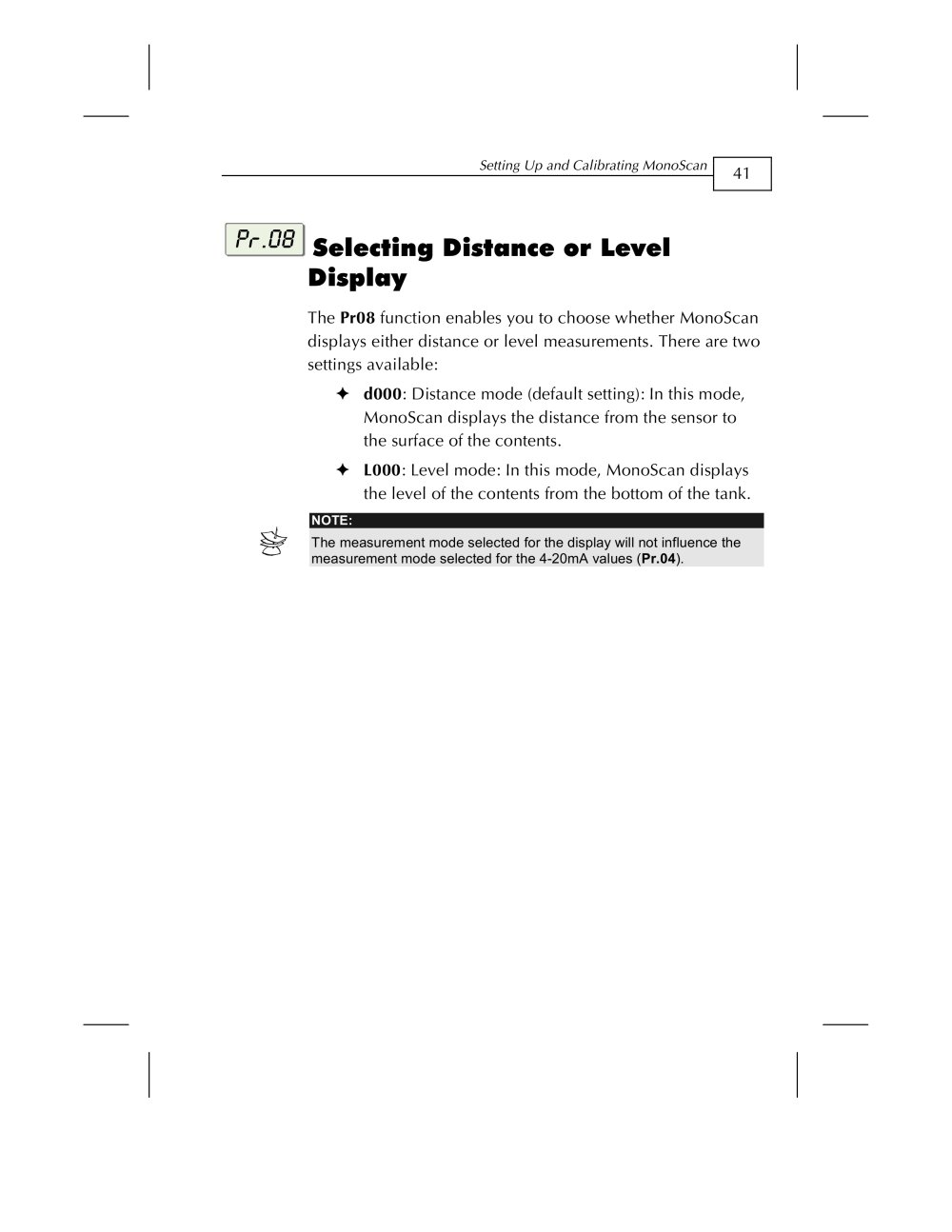

Setting Up and Calibrating MonoScan 41
NOTE: The measurement mode selected for the display will not influence the measurement mode selected for the 4-20mA values ( Pr.04 ).
MonoScan User Manual - 15188 Selecting Distance or Level Display
The Pr08 function enables you to choose whether MonoScan displays either distance or level measurements. There are two settings available: d000 : Distance mode (default setting): In this mode, MonoScan displays the distance from the sensor to the surface of the contents. L000 : Level mode: In this mode, MonoScan displays the level of the contents from the bottom of the tank.NOTE: The measurement mode selected for the display will not influence the measurement mode selected for the 4-20mA values ( Pr.04 ).
