Installing MonoScan 11
NOTE: The cable for the mating connector must be at least 6 mm in diameter.

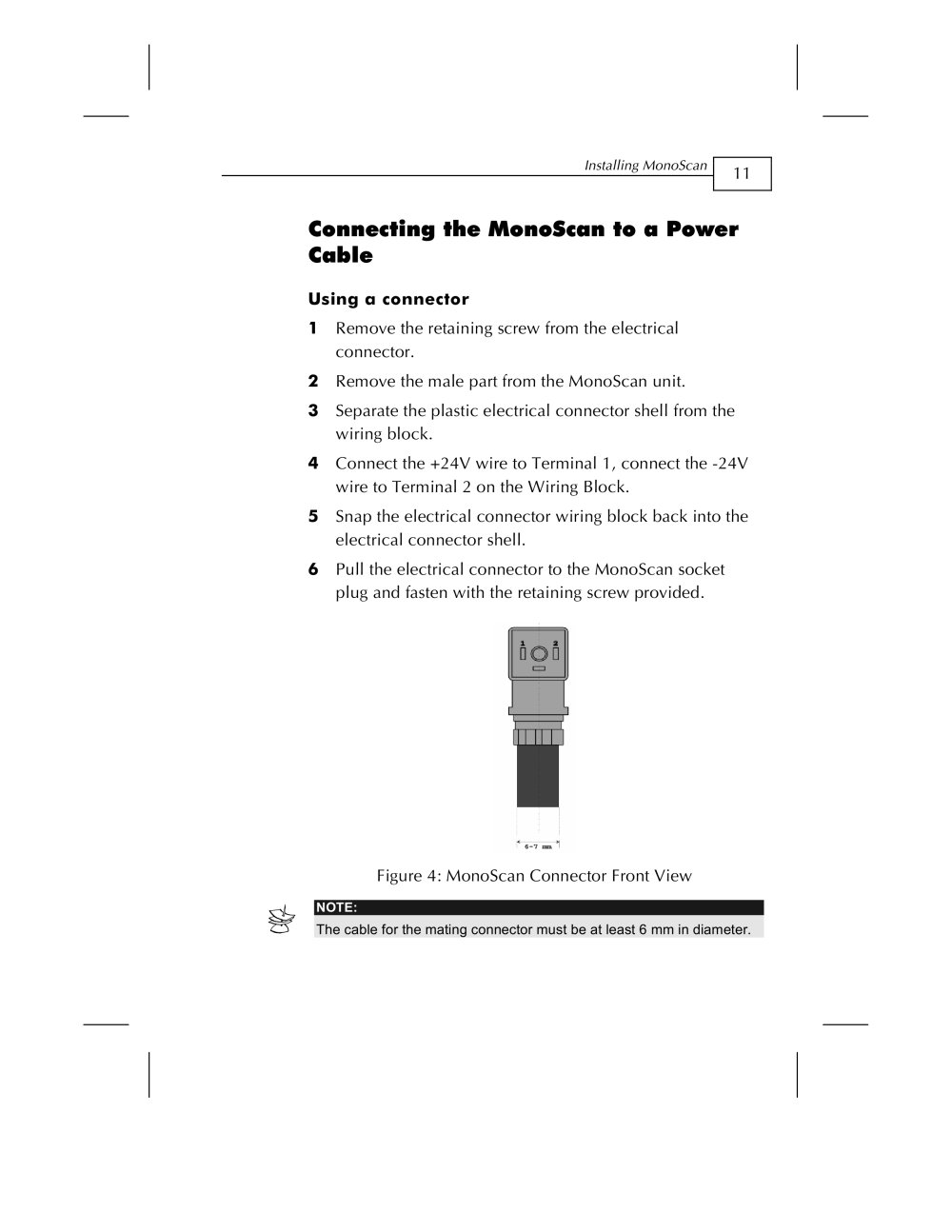

MonoScan User Manual - 15188 Connecting the MonoScan to a Power Cable
Using a connector 1 Remove the retaining screw from the electrical connector. 2 Remove the male part from the MonoScan unit. 3 Separate the plastic electrical connector shell from the wiring block. 4 Connect the +24V wire to Terminal 1, connect the -24V wire to Terminal 2 on the Wiring Block. 5 Snap the electrical connector wiring block back into the electrical connector shell. 6 Pull the electrical connector to the MonoScan socket plug and fasten with the retaining screw provided. Figure 4: MonoScan Connector Front ViewNOTE: The cable for the mating connector must be at least 6 mm in diameter.
