Catalog excerpts

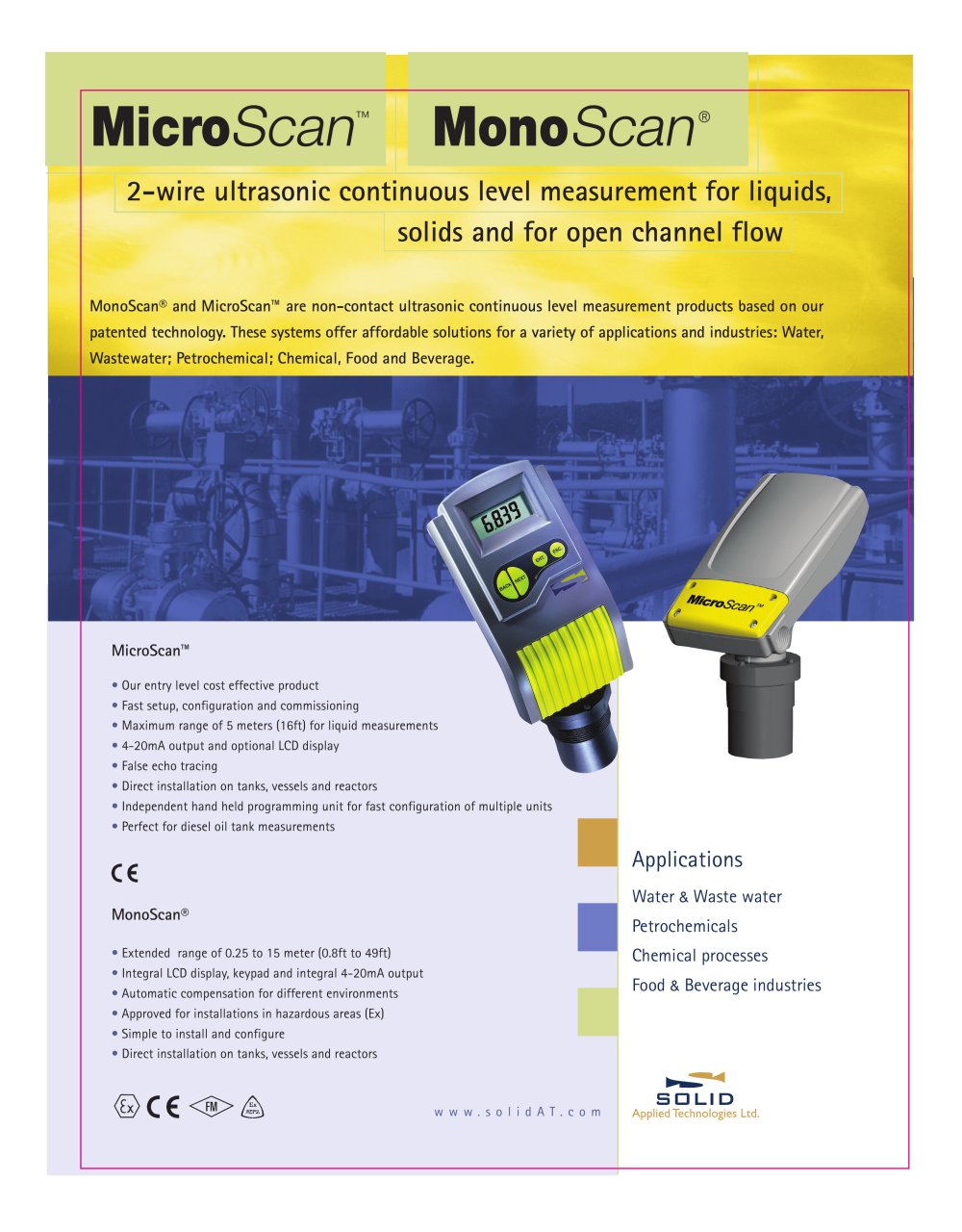

Applications Water & Waste water Petrochemicals Chemical processes Food & Beverage industries w w w . s o l i d A T . c o m 2-wire ultrasonic continuous level measurement for liquids, solids and for open channel flow MicroScan™ • Our entry level cost effective product • Fast setup, configuration and commissioning • Maximum range of 5 meters (16ft) for liquid measurements • 4-20mA output and optional LCD display • False echo tracing • Direct installation on tanks, vessels and reactors • Independent hand held programming unit for fast configuration of multiple units • Perfect for diesel oil tank measurements MonoScan® • Extended range of 0.25 to 15 meter (0.8ft to 49ft) • Integral LCD display, keypad and integral 4-20mA output • Automatic compensation for different environments • Approved for installations in hazardous areas (Ex) • Simple to install and configure • Direct installation on tanks, vessels and reactors MonoScan® and MicroScan™ are non-contact ultrasonic continuous level measurement products based on our patented technology. These systems offer affordable solutions for a variety of applications and industries: Water, Wastewater; Petrochemical; Chemical, Food and Beverage. MicroS c a n ™ MonoS c a n ®
Open the catalog to page 1Solid Applied Technologies Ltd. Solid House – 48 Montefiore St. Tel Aviv 65201 Israel • Tel: 972-3-7101440 • Fax: 972-3-7101405 • E-mail: info@solidgroup.com Data Sheet Type Max range for liquids Max range for solids Min range for liquids Measuring accuracy Transmission frequency Temperature compensation Power supply Loop current load Output signal Transmitter Material Sensor Acoustic window Mounting thread Operating Temperature IP Protection Display Cable connection Weight Dimensions Certifications Ultrasonic 2-wire mono-block Ultrasonic 2-wire monoblock 5 meter (short) / 16.5ft 5 meter /...
Open the catalog to page 2All Solidat Applied Technologies Ltd. catalogs and technical brochures
-
