MicroScan™ - 2 Pages

  1. P. 1

  2. P. 2

Catalogue excerpts

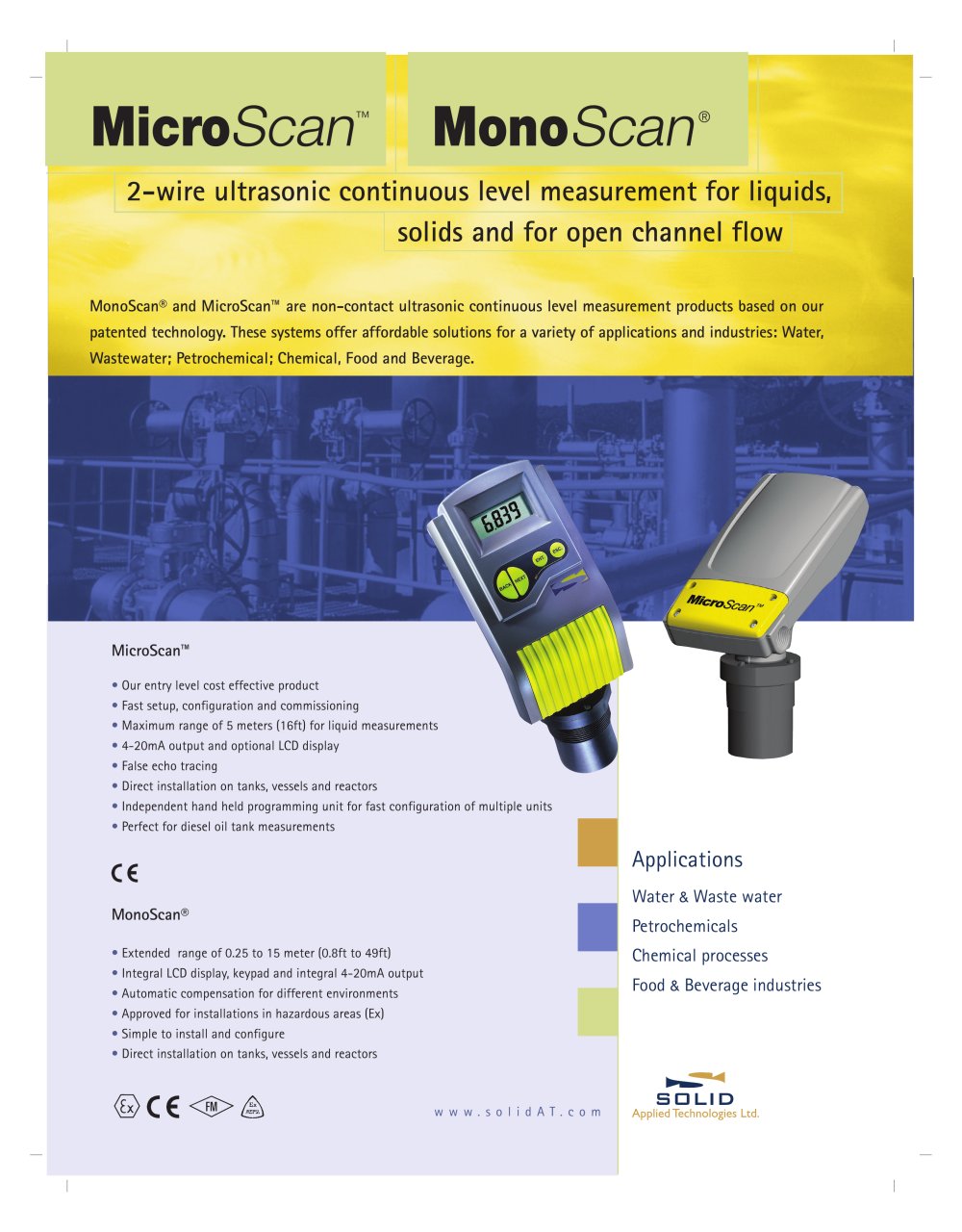

ٕ Our entry level cost effective product Fast setup, configuration and commissioning Օ Maximum range of 5 meters (16ft) for liquid measurements 4-20mA output and optional LCD display Օ False echo tracing Direct installation on tanks, vessels and reactors Օ Independent hand held programming unit for fast configuration of multiple units Perfect for diesel oil tank measurements > Extended range of 0.25 to 15 meter (0.8ft to 49ft) Օ Integral LCD display, keypad and integral 4-20mA output Automatic compensation for different environments > Օ Approved for installations in hazardous areas (Ex) Simple to install and configure Օ Direct installation on tanks, vessels and reactors www.solidAT.com >

 Open the catalogue to page 1

TypeMax range for liquidsMax range for solids Min range for liquids Measuring accuracyTransmission frequencyTemperature compensation Power supply Loop current load Output signalTransmitterMaterialSensorAcoustic windowMounting thread Operating Temperature IP Protection Display Cable connection Weight Dimensions Certifications Ultrasonic 2-wire mono-blockUltrasonic 2-wire monoblock 5 meter (short) / 16.5ft5 meter / 16ft 15 meter (std) / 49ft 3.5 meter (short) / 11.5ft3.5 meter (11.5ft) 8.5 (std) / 28 ft 0.25 meter (short) / 0.8ft 0.25 meter /0.8ft 0.60 meter (std) / 2ft 0.25% of max range* 0.25%...

 Open the catalogue to page 2
