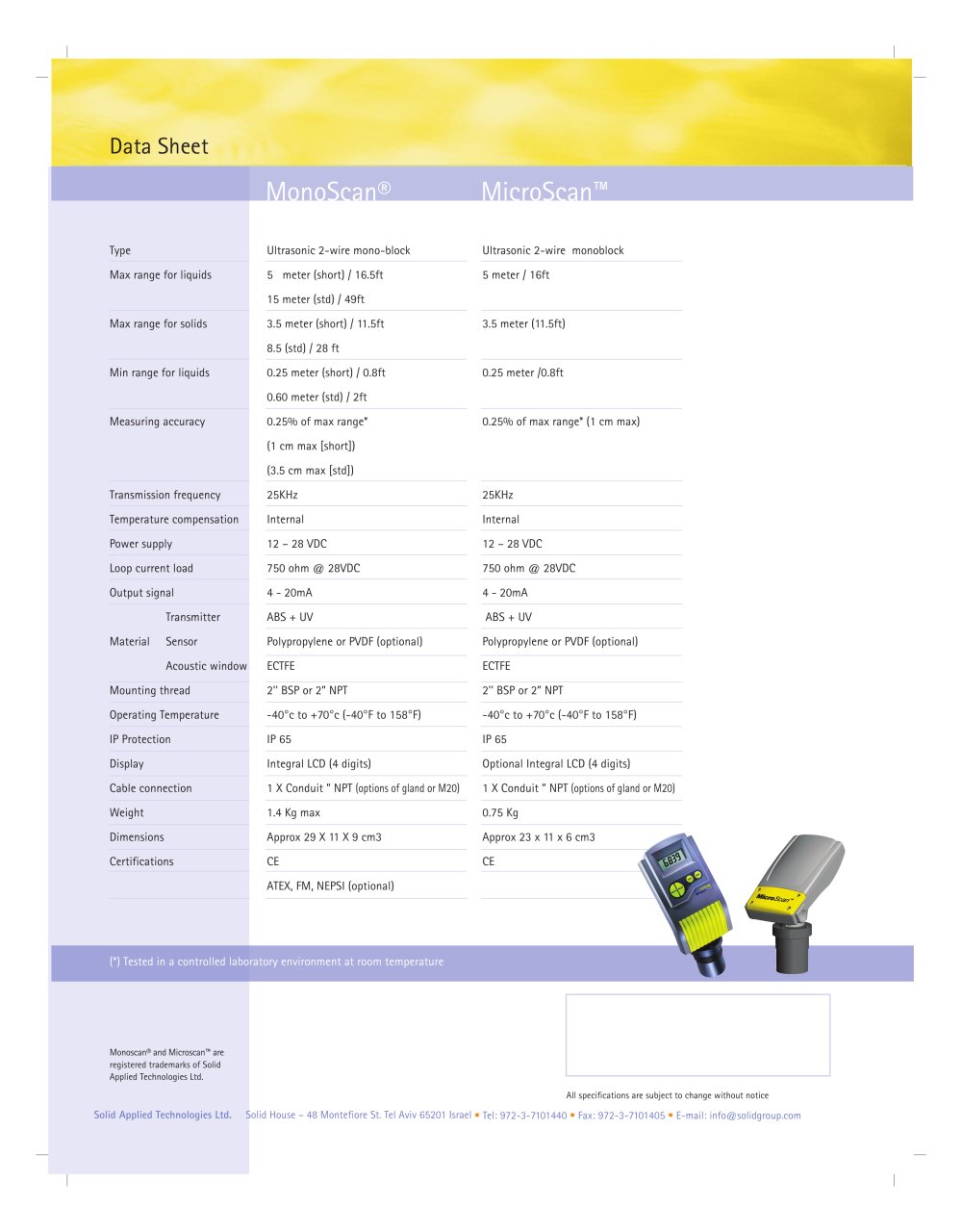

Data Sheet

MicroScan™ - 15188 MonoScan®MicroScan™

TypeMax range for liquidsMax range for solids Min range for liquids Measuring accuracyTransmission frequencyTemperature compensation Power supply Loop current load Output signalTransmitterMaterialSensorAcoustic windowMounting thread Operating Temperature IP Protection Display Cable connection Weight Dimensions Certifications Ultrasonic 2-wire mono-blockUltrasonic 2-wire monoblock 5 meter (short) / 16.5ft5 meter / 16ft 15 meter (std) / 49ft 3.5 meter (short) / 11.5ft3.5 meter (11.5ft) 8.5 (std) / 28 ft 0.25 meter (short) / 0.8ft 0.25 meter /0.8ft 0.60 meter (std) / 2ft 0.25% of max range* 0.25% of max range* (1 cm max) (1 cm max [short]) (3.5 cm max [std]) 25KHz25KHz InternalInternal 12 – 28 VDC 12 – 28 VDC 750 ohm @ 28VDC750 ohm @ 28VDC 4 - 20mA4 - 20mA ABS + UV ABS + UV Polypropylene or PVDF (optional)Polypropylene or PVDF (optional) ECTFEECTFE 2'' BSP or 2” NPT2'' BSP or 2” NPT -40 ° c to +70 ° c (-40 ° F to 158 ° F)-40 ° c to +70 ° c (-40 ° F to 158 ° F)IP 65IP 65 Integral LCD (4 digits)Optional Integral LCD (4 digits) 1 X Conduit ” NPT (options of gland or M20) 1 X Conduit ” NPT (options of gland or M20) 1.4 Kg max0.75 Kg Approx 29 X 11 X 9 cm3Approx 23 x 11 x 6 cm3 CE CE ATEX, FM, NEPSI (optional)(*) Tested in a controlled laboratory environment at room temperature
All specifications are subject to change without noticeMonoscan® and Microscan™ areregistered trademarks of Solid Applied Technologies Ltd. Solid Applied Technologies Ltd. Solid House – 48 Montefiore St. Tel Aviv 65201 Israel • Tel: 972-3-7101440 • Fax: 972-3-7101405 • E-mail: info@solidgroup.com
