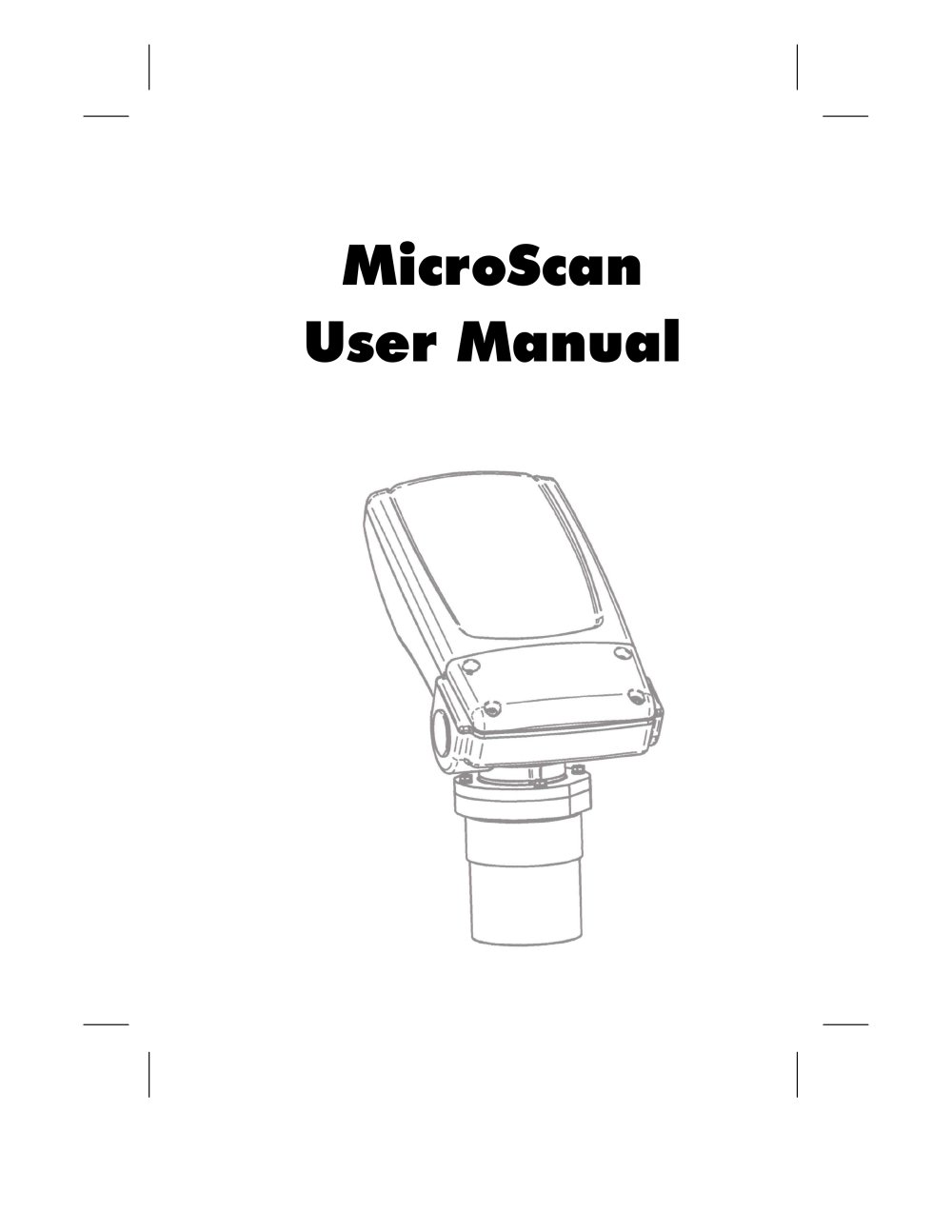

MicroScan User Manual >

 Open the catalogue to page 1

ii > MicroScan Users Manual This manual is delivered subject to the following conditions and restrictions: This manual contains proprietary information belonging to Solid Applied Technologies Ltd. Such information is supplied solely for the purpose of assisting explicitly and properly authorized users of MicroScan. The text and graphics are for the purpose of illustration and reference only. The specifications on which they are based are subject to change without notice. No part of its contents may be used for any other purpose, disclosed to any person or firm or reproduced by any means, electronic...

 Open the catalogue to page 2

MicroScan must be installed, connected and operated according to the instructions in this Manual. If installed incorrectly or used for applications for which it is not intended, application-related dangers may arise. Only qualified personnel are authorized to install and operate MicroScan. Do not open the MicroScan unit. If the unit is opened, the warranty is null and void. Modifications and repairs to MicroScan are permissible only when the manufacturer expressly approves them. >

 Open the catalogue to page 3

Introducing MicroScan C HAPTER 1 1 > MicroScan is an ultrasonic, non-contact level measurement device of mono-block construction (combing the sensor and electronic components in a single unit). MicroScan provides reliable and precise level measurement results of both liquids and solids. It can be used for the following measurement tasks: Liquid tanks with calm surfaces Solids tanks that are dust-free MicroScan has a range of up to 5 m (16.5 ft) with an accuracy of approx. 0.25% within that range. MicroScan is available in two configurations: MicroScan with no display and no keyboard ("Blind" unit)...

 Open the catalogue to page 7

MicroScan Users Manual Figure 1: Front View of MicroScan Figure 2: Side View of MicroScan >

 Open the catalogue to page 8

Introducing MicroScan C HAPTER 1 3 > Accuracy 0.25%* of measuring range Resolution 1 mm (0.04") Beam angle 5 @ 3db point Ambient tempВ compensation Automatic > * 0.25% or 1.25cm whichever is greater. MicroScan L for liquids 0.25 m 5 m 0.8 ft ח 16.4 ft MicroScan S for solids 0.25 m 3.5 m 0.8 ft ח 11.5 ft > Enclosure IP 65, mono-block construction. Plastic enclosure: ABS+UV Wetted parts Sensor body: PolyProp. PVDF, optional. Stainless Steel for Liquid model; Coated Aluminum for Solid/Liquid model. Operating temperature -40 C to + 70 C (-40 F to +158 F) Mounting 2" BSP or 2" NPT >

 Open the catalogue to page 9

MicroScan Users Manual 4 Mechanical fitting Conduit connection M20x2.5 or 1/2" NPT Operating pressure Atmospheric Dimensions 22.3 x 11 x 4.5cm (8.7 x 4.3x 1.7in) Weight Approx. 0.75Kg (1.65lb) > Optional Display LCD, four digits, seven segments Operation Four push buttons Loop current 4 җ 20 mA, 750 @ 28 VDC Supply 12 28 VDC (CE certified) Certificates CE ח EMC > Display LCD (4 digits 7 segments) Keyboard 4 buttons Cable 0.60m (23.6in) Housing material ABS + UV Dimensions 9.5X11X2.5cm (3.7X4.3X0.98 in) Weight 0.25 Kg (0.55 lb) Certifications CE >

 Open the catalogue to page 10

Introducing MicroScan C HAPTER 1 5 > Material Description Stainless Steel For liquid applications. High resistance in highly acidic and alcoholic environments. Less sensitive to echoes (in Solid applications). Coated Aluminum Designed for complex environments with problematic echoes, such as non-conductive vapors, solids or liquids. Good performance in problematic applications. High sensitivity to echoes. >

 Open the catalogue to page 11

6 > MicroScan Users Manual Ensure that MicroScan is mounted in an area that meets the stated temperature, pressure and technical specifications. Ensure that high-voltage sources or cables are at least 1 m away from the sensor and its cable. Use a conduit connector that is either 1/2" NPT or M20x2.5 compatible (depending on the MicroScan model you have), to ensure the unit remains sealed. Use 26-16 AWG round wires for the MicroScanҒs electrical connections. Ensure that cables are routed correctly and tightened along walls or pipes. Installation and operation of this product should be performed,...

 Open the catalogue to page 12

Installing MicroScan C HAPTER 2 7 > When installing MicroScan, ensure that it is: Mounted above the dead-zone area. > NOTE: If the device enters the blocking distance (dead zone), it will not measure correctly. Positioned at least 0.5 m (1.64 ft) away from the tank walls. Perpendicular to the surface of the target. > NOTE: Even the slightest difference in angle may affect echo quality. size="-1">

 Open the catalogue to page 13

8 > MicroScan Users Manual Placed as far as possible from noisy areas, such as a filling inlet. > MicroScan is available in two thread types, 2" BSP or 2" NPT. MicroScan can be installed with threaded-flange mounting or with thread-free flange mounting, as shown below: > Figure 3: Threaded Flange/Thread-Free Flange Mounting size="-1">

 Open the catalogue to page 14

Installing MicroScan C HAPTER 2 9 > NOTES: When installing a thread-free flange mounted unit, you will need a 2" locking nut to secure the unit inside the tank. When installing a threaded flange, ensure that it matches the MicroScan threads. To install MicroScan: 1 Insert the threaded end of MicroScan into the aperture at the top of the tank or pipe. 2 Bolt MicroScan into place in one of the following ways: Threaded-flange mounting : Screw the unit into a flange with a threaded 2" hole. Thread-free mounting : Place MicroScan in the flange, and bolt it from within the tank with a 2" locking nut....

 Open the catalogue to page 15

10 > MicroScan Users Manual If the level of the measured surface falls within the dead-zone area, you should use an extension pipe to mount MicroScan. When using an extension pipe, ensure that: The sensor is positioned in the center of the pipe. The pipe extension is parallel to the side/tank walls. The internal pipe diameter is at least 3" wide. When installing the MicroScan with extension pipes, follow these specifications: Pipe Length Internal Pipe Diameter 0.50 m (1.64 ft) 3" 1 m (3.28 ft) 3" > NOTE: It is always recommended to use interference signal feature (Pr.03) to locate interfering...

 Open the catalogue to page 16

Installing MicroScan C HAPTER 2 11 > 1 Unscrew the four Allen screws from the MicroScan front door. 2 Detach the front door from the MicroScan unit. 3 Remove the rubber sealing from the conduit entry. 4 Thread the power cable through the conduit entry. 5 Remove the plastic shell from the power cable. 6 Connect the +24VDC wire to Terminal 1, connect the 0VDC (GND) wire to Terminal 2 on the wiring block. 7 Make sure that the terminals screws are properly fastened. 8 Attach the front door to the MicroScan unit. 9 Screw the four Allen screws to the plastic door. > Figure 4: MicroScan Power Connections...
