Setting Up and Calibrating MicroScan C HAPTER 3 33

MicroScan User Manual - 15188 Defining Working Area

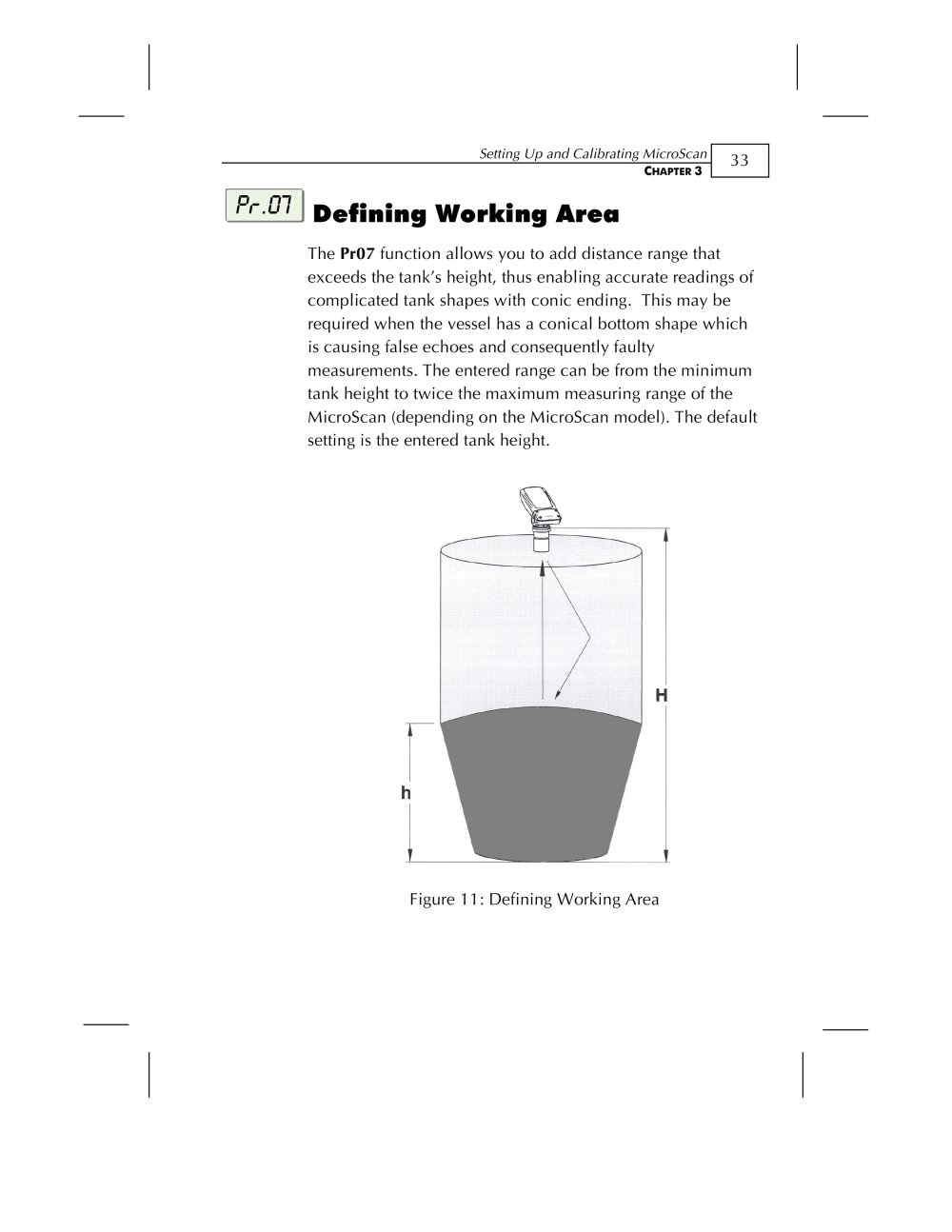

The Pr07 function allows you to add distance range that exceeds the tank’s height, thus enabling accurate readings of complicated tank shapes with conic ending. This may be required when the vessel has a conical bottom shape which is causing false echoes and consequently faulty measurements. The entered range can be from the minimum tank height to twice the maximum measuring range of the MicroScan (depending on the MicroScan model). The default setting is the entered tank height. Figure 11: Defining Working Area
