Power Protection and Conditioning 1

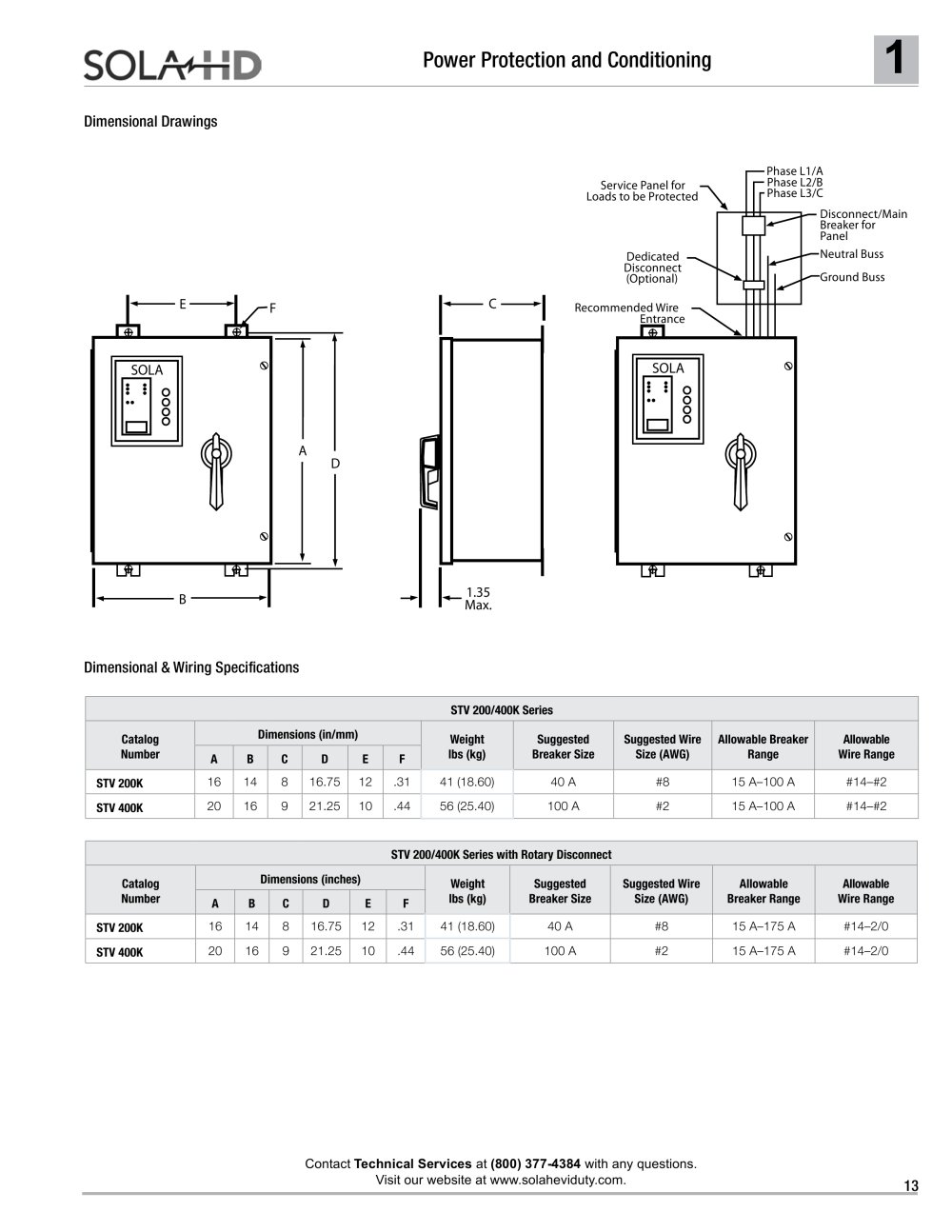

Dimensional Drawings

Service Panel forLoads to be ProtectedPhase L1/APhase L2/BPhase L3/CDisconnect/MainBreaker for PanelNeutral BussGround BussDedicatedDisconnect(Optional)Recommended WireEntrance

EF B AD C SOLA SOLA 1.35Max.

Dimensional & Wiring Specifications

STV 200/400K SeriesCatalog NumberDimensions (in/mm)Weight lbs (kg)Suggested Breaker SizeSuggested Wire Size (AWG)Allowable Breaker RangeAllowable Wire RangeABCDEFSTV 200K 1614816.7512.3141 (18.60)40 A#815 A–100 A#14–#2 STV 400K 2016921.2510.4456 (25.40)100 A#215 A–100 A#14–#2 STV 200/400K Series with Rotary DisconnectCatalog NumberDimensions (inches)Weight lbs (kg)Suggested Breaker SizeSuggested Wire Size (AWG)Allowable Breaker RangeAllowable Wire RangeABCDEFSTV 200K 1614816.7512.3141 (18.60)40 A#815 A–175 A#14–2/0 STV 400K 2016921.2510.4456 (25.40)100 A#215 A–175 A#14–2/0
