| SOL/V44D | ||||||||||||||||||||||||
| Power Supplies | ||||||||||||||||||||||||
| SDN™ Series Mounting | ||||||||||||||||||||||||

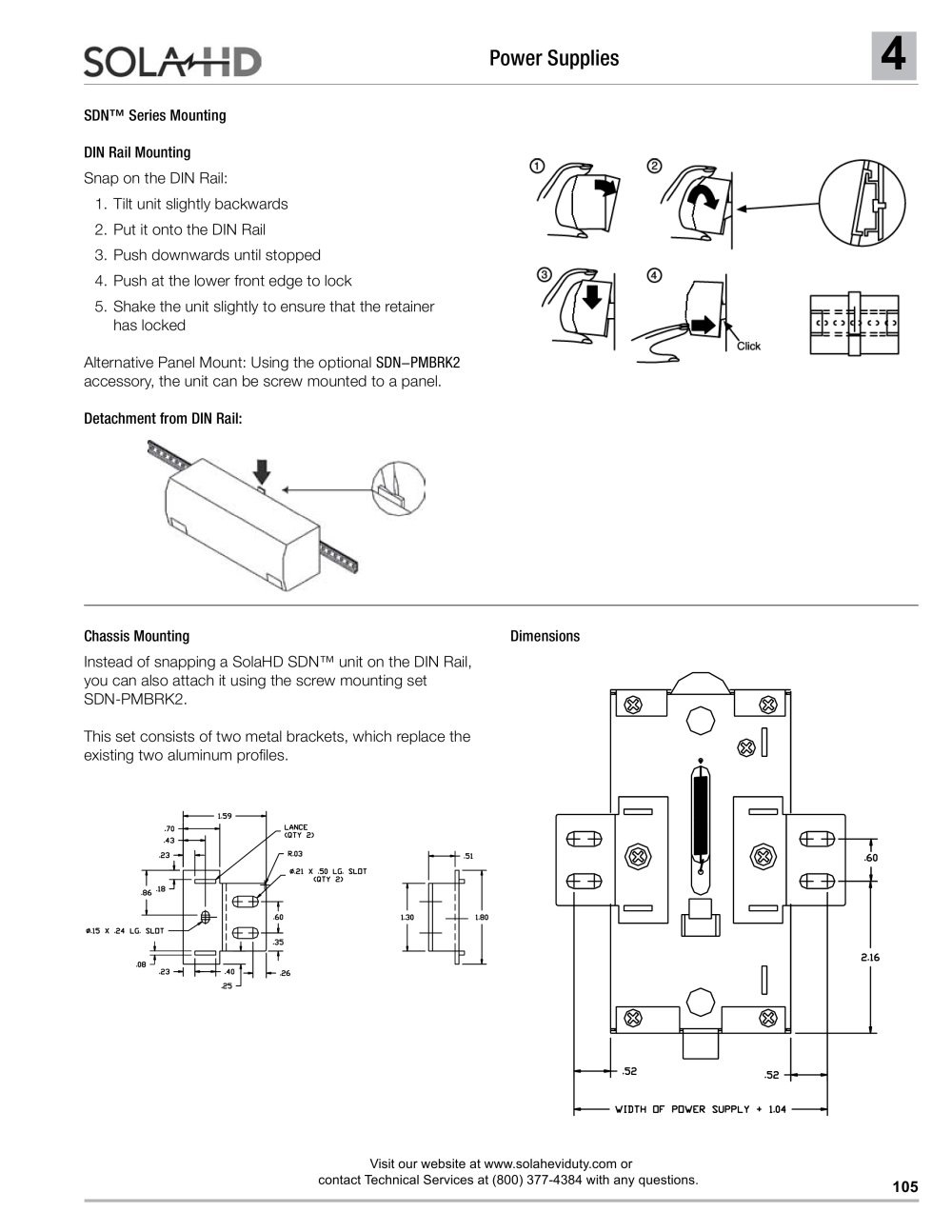

| DIN Rail Mounting Snap on the DIN Rail: 1. Tilt unit slightly backwards 2. Put it onto the DIN Rail 3. Push downwards until stopped 4. Push at the lower front edge to lock 5. Shake the unit slightly to ensure that the retainer has locked Alternative Panel Mount: Using the optional SDN-PMBRK2 accessory, the unit can be screw mounted to a panel. | ||||||||||||||||||||||||
| Detachment from DIN Rail: | ||||||||||||||||||||||||
| Chassis Mounting Instead of snapping a SolaHD SDN™ unit on the DIN Rail, you can also attach it using the screw mounting set SDN-PMBRK2. This set consists of two metal brackets, which replace the existing two aluminum profiles. | Dimensions | |||||||||||||||||||||||
| 0.21 X .50 LG. SLOT <OTY 2) | ||||||||||||||||||||||||
| •.15 X ZA LG. SLD | ||||||||||||||||||||||||
| Visit our website at www.solaheviduty.com or contact Technical Services at (800) 377-4384 with any questions. | ||||||||||||||||||||||||
