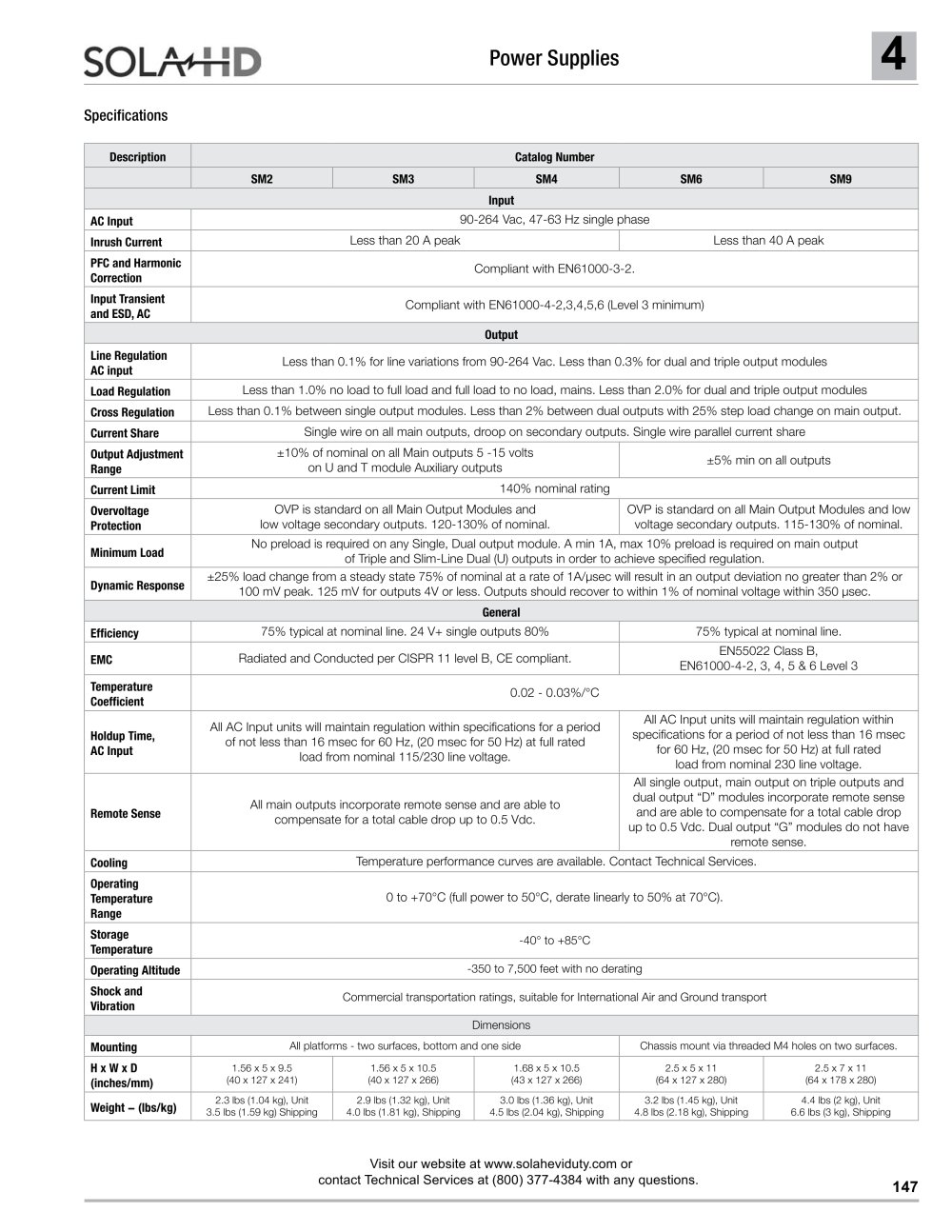

Power Supply Catalog Section - SolaHD - #51

90-264 Vac, 47-63 Hz single phase

Less than 20 A peak

Less than 40 A peak

Compliant with EN61000-3-2.

Compliant with EN61000-4-2,3,4,5,6 (Level 3 minimum)

Less than 0.1% for line variations from 90-264 Vac. Less than 0.3% for dual and triple output modules

Less than 1.0% no load to full load and full load to no load, mains. Less than 2.0% for dual and triple output modules

Less than 0.1% between single output modules. Less than 2% between dual outputs with 25% step load change on main output.

Single wire on all main outputs, droop on secondary outputs. Single wire parallel current share

±10% of nominal on all Main outputs 5 -15 volts on U and T module Auxiliary outputs

±5% min on all outputs

140% nominal rating

OVP is standard on all Main Output Modules and 1 OVP is standard on all Main Output Modules and low low voltage secondary outputs. 120-130% of nominal. voltage secondary outputs. 115-130% of nominal.

No preload is required on any Single, Dual output module. A min 1A, max 10% preload is required on main output of Triple and Slim-Line Dual (U) outputs in order to achieve specified regulation.

±25% load change from a steady state 75% of nominal at a rate of 1A/usec will result in an output deviation no greater than 2% or 100 mV peak. 125 mV for outputs 4V or less. Outputs should recover to within 1% of nominal voltage within 350 usec.

75% typical at nominal line. 24 V+ single outputs 80%

75% typical at nominal line.

Radiated and Conducted per CISPR 11 level B, CE compliant.

EN55022 Class B, EN61000-4-2, 3, 4, 5 & 6 Level 3

0.02 - 0.03%/°C

All AC Input units will maintain regulation within specifications for a period of not less than 16 msec for 60 Hz, (20 msec for 50 Hz) at full rated load from nominal 115/230 line voltage.

All AC Input units will maintain regulation within specifications for a period of not less than 16 msec for 60 Hz, (20 msec for 50 Hz) at full rated load from nominal 230 line voltage.

All main outputs incorporate remote sense and are able to compensate for a total cable drop up to 0.5 Vdc.

All single output, main output on triple outputs and dual output "D" modules incorporate remote sense and are able to compensate for a total cable drop up to 0.5 Vdc. Dual output "G" modules do not have remote sense.

Dimensions

All platforms - two surfaces, bottom and one side

Chassis mount via threaded M4 holes on two surfaces.

1.56 x 5 x 9.5 (40 x 127 x 241)

1.56 x 5 x 10.5 (40 x 127 x 266)

1.68 x 5 x 10.5 (43 x 127 x 266)

2.5 x 5 x 11 (64 x 127 x 280)

2.5 x 7 x 11 (64 x 178 x 280)

2.3 lbs (1.04 kg), Unit 3.5 lbs (1.59 kg) Shipping

2.9 lbs (1.32 kg), Unit 4.0 lbs (1.81 kg), Shipping

3.0 lbs (1.36 kg), Unit 4.5 lbs (2.04 kg), Shipping

3.2 lbs (1.45 kg), Unit 4.8 lbs (2.18 kg), Shipping

4.4 lbs (2 kg), Unit 6.6 lbs (3 kg), Shipping
