| 4 | |||||||||||||||||||
| SOL/V44D | |||||||||||||||||||
| Power Supplies | |||||||||||||||||||

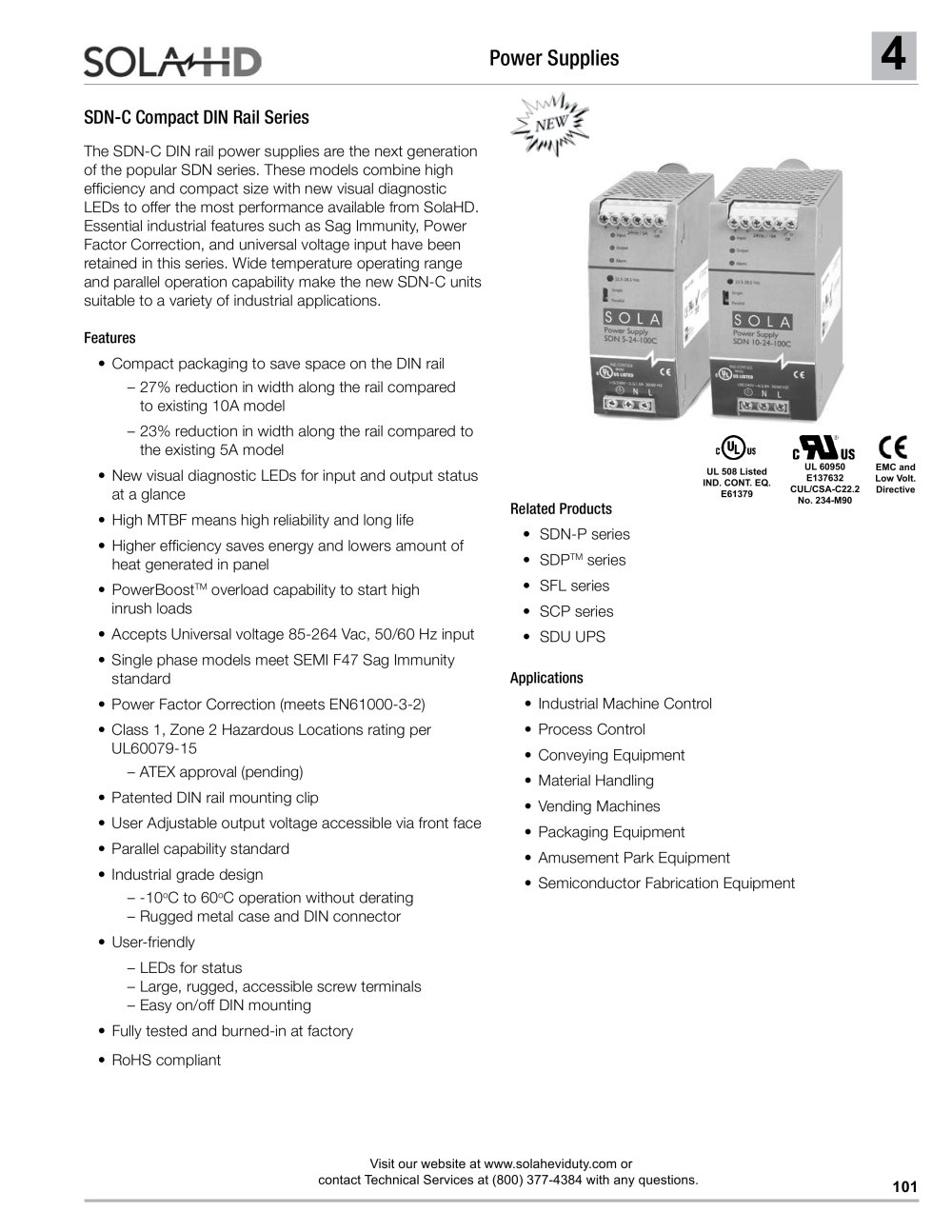

| SDN-C Compact DIN Rail Series The SDN-C DIN rail power supplies are the next generation of the popular SDN series. These models combine high efficiency and compact size with new visual diagnostic LEDs to offer the most performance available from SolaHD. Essential industrial features such as Sag Immunity, Power Factor Correction, and universal voltage input have been retained in this series. Wide temperature operating range and parallel operation capability make the new SDN-C units suitable to a variety of industrial applications. Features • Compact packaging to save space on the DIN rail - 27% reduction in width along the rail compared to existing 10A model - 23% reduction in width along the rail compared to the existing 5A model • New visual diagnostic LEDs for input and output status at a glance • High MTBF means high reliability and long life • Higher efficiency saves energy and lowers amount of heat generated in panel • PowerBoostTM overload capability to start high inrush loads • Accepts Universal voltage 85-264 Vac, 50/60 Hz input • Single phase models meet SEMI F47 Sag Immunity standard • Power Factor Correction (meets EN61000-3-2) • Class 1, Zone 2 Hazardous Locations rating per UL60079-15 - ATEX approval (pending) • Patented DIN rail mounting clip • User Adjustable output voltage accessible via front face • Parallel capability standard • Industrial grade design - -10oC to 60oC operation without derating - Rugged metal case and DIN connector • User-friendly - LEDs for status - Large, rugged, accessible screw terminals - Easy on/off DIN mounting • Fully tested and burned-in at factory • RoHS compliant | |||||||||||||||||||
| ®- cTOus C€ | |||||||||||||||||||
| 4 | |||||||||||||||||||
| Related Products • SDN-P series • SDPTM series • SFL series • SCP series • SDU UPS Applications • Industrial Machine Control • Process Control • Conveying Equipment • Material Handling • Vending Machines • Packaging Equipment • Amusement Park Equipment • Semiconductor Fabrication Equipment | |||||||||||||||||||
| Visit our website at www.solaheviduty.com or contact Technical Services at (800) 377-4384 with any questions. | |||||||||||||||||||
| 101 | |||||||||||||||||||
