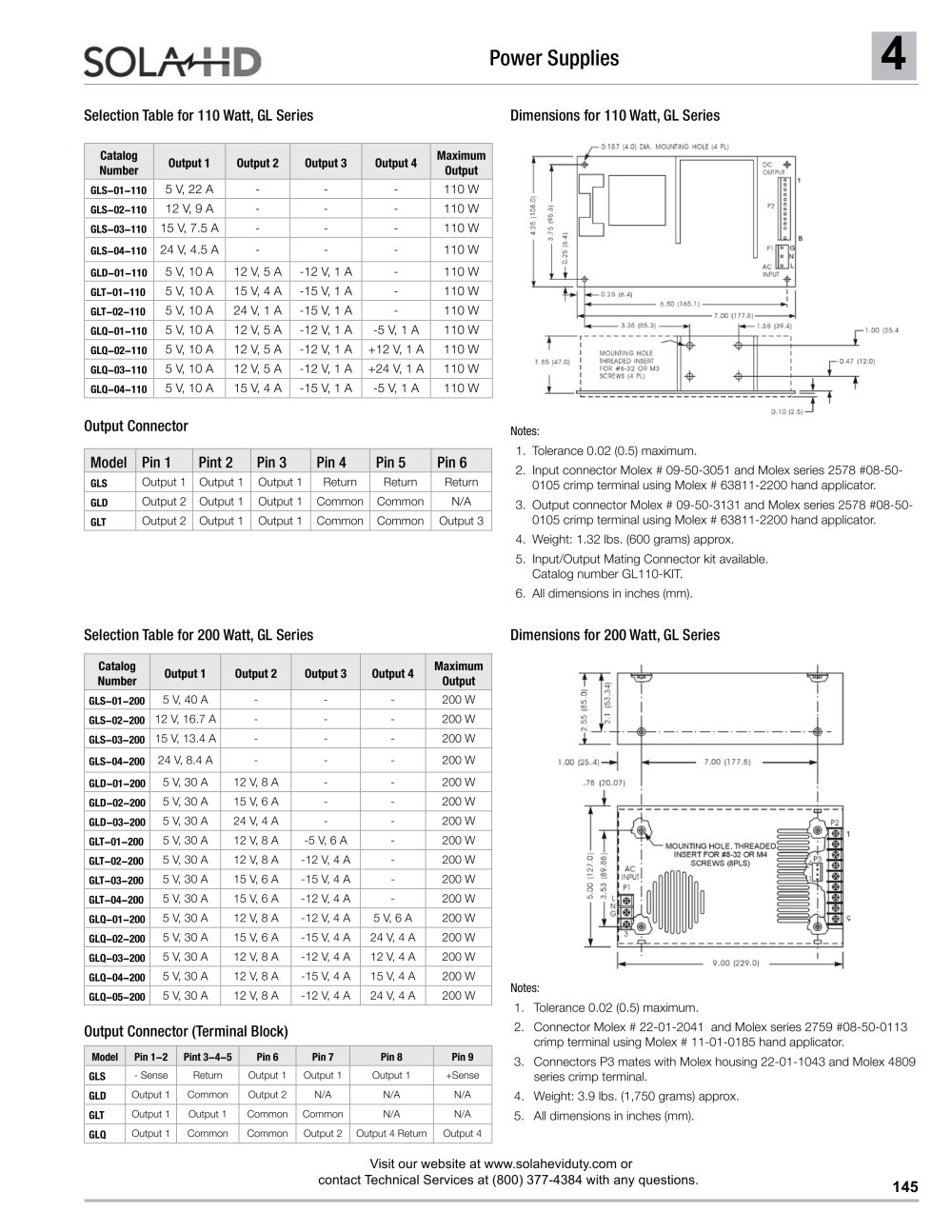

4
SOL/V44D
Power Supplies
Dimensions for 110 Watt, GL Series
Selection Table for 110 Watt, GL Series
Catalog Number
Output 1
Output 2
Output 3
Output 4
Maximum Output
GLS-01-110
5 V, 22 A
-
-
-
110 W
GLS-02-110
12 V, 9 A
-
-
-
110 W
GLS-03-110
15 V, 7.5 A
-
-
-
110 W
GLS-04-110
24 V, 4.5 A
-
-
-
110 W
GLD-01-110
5 V, 10 A
12 V, 5 A
-12 V, 1 A
-
110 W
GLT-01-110
5 V, 10 A
15 V, 4 A
-15 V, 1 A
-
110 W
GLT-02-110
5 V, 10 A
24 V, 1 A
-15 V, 1 A
-
110 W
GLQ-01-110
5 V, 10 A
12 V, 5 A
-12 V, 1 A
-5 V, 1 A
110 W
GLQ-02-110
5 V, 10 A
12 V, 5 A
-12 V, 1 A
+12 V, 1 A
110 W
GLQ-03-110
5 V, 10 A
12 V, 5 A
-12 V, 1 A
+24 V, 1 A
110 W
GLQ-04-110
5 V, 10 A
15 V, 4 A
-15 V, 1 A
-5 V, 1 A
110 W
Output Connector
Notes:
1. Tolerance 0.02 (0.5) maximum.
2. Input connector Molex # 09-50-3051 and Molex series 2578 #08-50­0105 crimp terminal using Molex # 63811-2200 hand applicator.
3. Output connector Molex # 09-50-3131 and Molex series 2578 #08-50­0105 crimp terminal using Molex # 63811-2200 hand applicator.
4. Weight: 1.32 lbs. (600 grams) approx.
5. Input/Output Mating Connector kit available. Catalog number GL110-KIT.
6. All dimensions in inches (mm).
Model
Pin 1
Pint 2
Pin 3
Pin 4
Pin 5
Pin 6
GLS
Output 1
Output 1
Output 1
Return
Return
Return
GLD
Output 2
Output 1
Output 1
Common
Common
N/A
GLT
Output 2
Output 1
Output 1
Common
Common
Output 3
Dimensions for 200 Watt, GL Series
Selection Table for 200 Watt, GL Series
Catalog Number
Output 1
Output 2
Output 3
Output 4
Maximum Output
GLS-01-200
5 V, 40 A
-
-
-
200 W
GLS-02-200
12 V, 16.7 A
-
-
-
200 W
GLS-03-200
15 V, 13.4 A
-
-
-
200 W
GLS-04-200
24 V, 8.4 A
-
-
-
200 W
GLD-01-200
5 V, 30 A
12 V, 8 A
- -
200 W
GLD-02-200
5 V, 30 A
15 V, 6 A
- -
200 W
GLD-03-200
5 V, 30 A
24 V, 4 A
- -
200 W
GLT-01-200
5 V, 30 A
12 V, 8 A
-5 V, 6 A
-
200 W
GLT-02-200
5 V, 30 A
12 V, 8 A
-12 V, 4 A
-
200 W
GLT-03-200
5 V, 30 A
15 V, 6 A
-15 V, 4 A
-
200 W
GLT-04-200
5 V, 30 A
15 V, 6 A
-12 V, 4 A
-
200 W
GLQ-01-200
5 V, 30 A
12 V, 8 A
-12 V, 4 A
5 V, 6 A
200 W
GLQ-02-200
5 V, 30 A
15 V, 6 A
-15 V, 4 A
24 V, 4 A
200 W
GLQ-03-200
5 V, 30 A
12 V, 8 A
-12 V, 4 A
12 V, 4 A
200 W
GLQ-04-200
5 V, 30 A
12 V, 8 A
-15 V, 4 A
15 V, 4 A
200 W
GLQ-05-200
5 V, 30 A
12 V, 8 A
-12 V, 4 A
24 V, 4 A
200 W
Notes:
1. Tolerance 0.02 (0.5) maximum.
2. Connector Molex # 22-01-2041 and Molex series 2759 #08-50-0113 crimp terminal using Molex # 11-01-0185 hand applicator.
3. Connectors P3 mates with Molex housing 22-01-1043 and Molex 4809 series crimp terminal.
4. Weight: 3.9 lbs. (1,750 grams) approx.
5. All dimensions in inches (mm).
Output Connector (Terminal Block)
Model
Pin 1-2
Pint 3-4-5
Pin 6
Pin 7
Pin 8
Pin 9
GLS
- Sense
Return
Output 1
Output 1
Output 1
+Sense
GLD
Output 1
Common
Output 2
N/A
N/A
N/A
GLT
Output 1
Output 1
Common
Common
N/A
N/A
GLQ
Output 1
Common
Common
Output 2
Output 4 Return
Output 4
Visit our website at www.solaheviduty.com or contact Technical Services at (800) 377-4384 with any questions.
